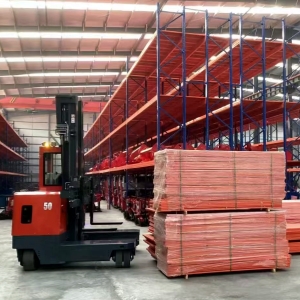

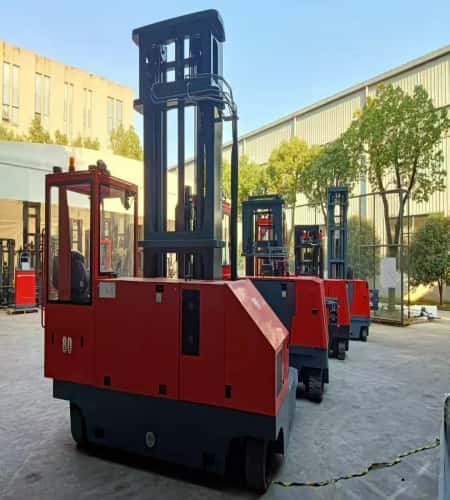

5ton Multi Directional Forklift Trucks

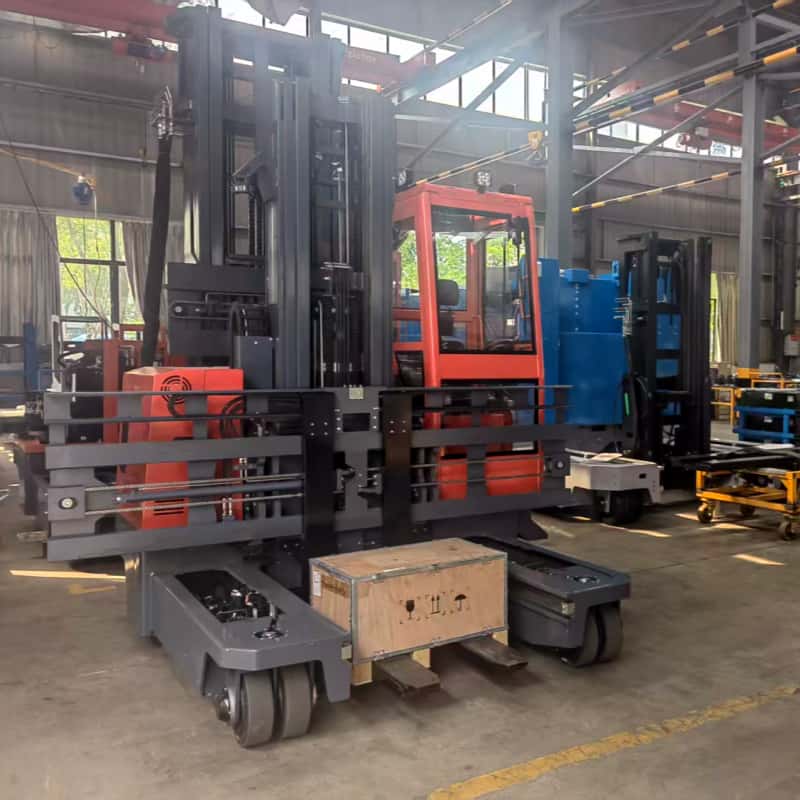

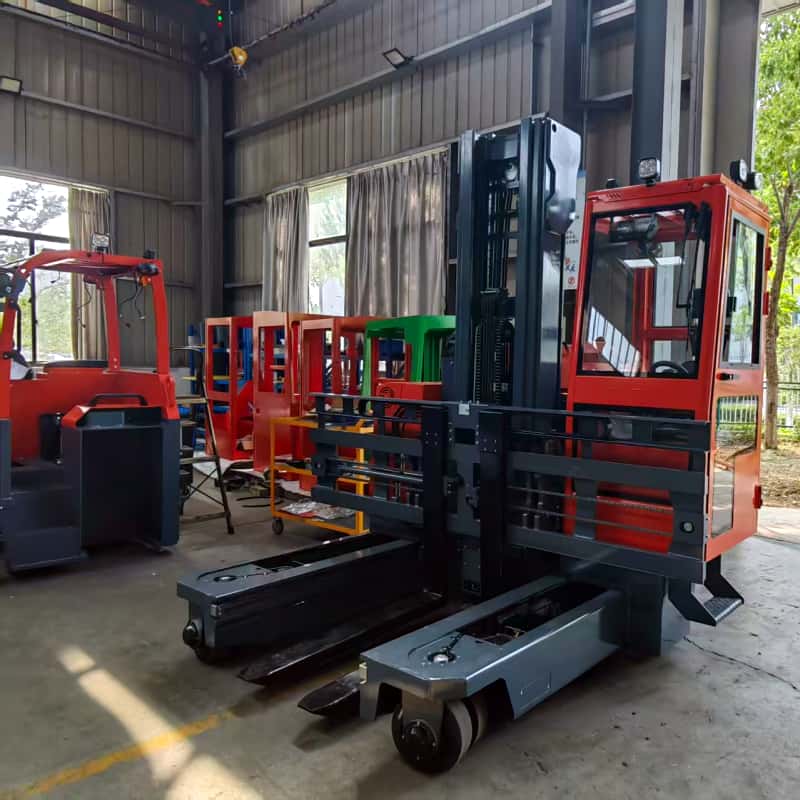

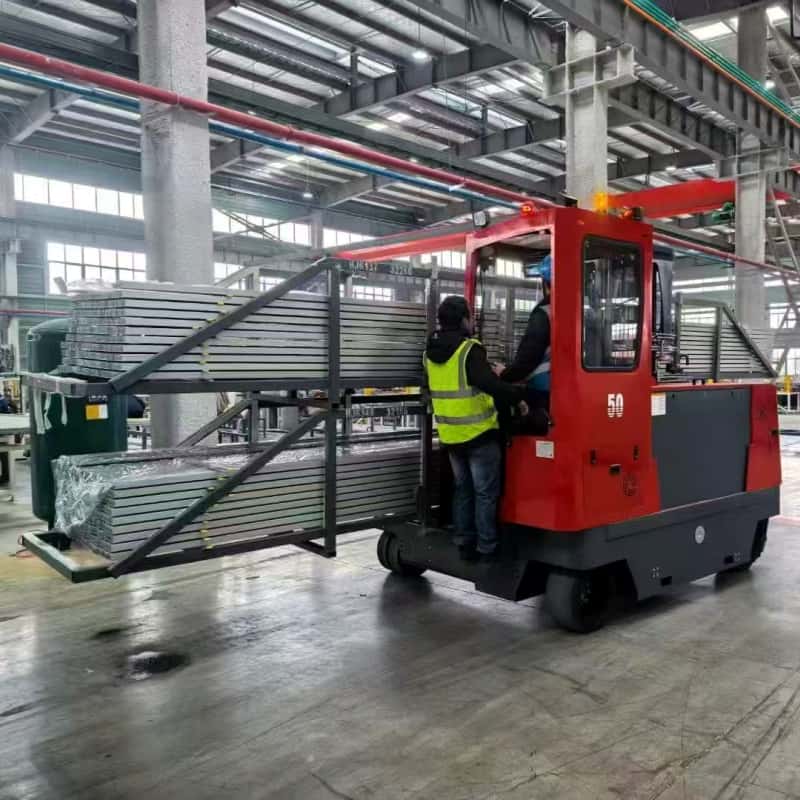

Multi Directional Reach Truck Parameter

Characteristics

1.1

Product Name

4-way electric reach truck

1.2

Model

MQC50-90

1.3

Power Type

Battery

1.4

Operation type

Seated

1.5

Load capacity

Q(kg)

5000

1.6

Load center

C(mm)

600

1.8

Front overhang

x(mm)

330

1.9

Wheelbase

y(mm)

1800

Wheels

3.1

Tyre type,front/rear

Solid rubber

3.2

Tyre size, front

in/mm

15×5-11.25

3.3

Tyre size, rear

in/mm

18×9-12.125

3.5

Wheels,number front/rear (X=driven)

4 / 2X

3.6

Track width, front

b10(mm)

1964

3.7

Track width, rear

b11(mm)

2050

Dimensions

4.1

Fork tilt,front/rear

α/β(°)

2/5.5

4.2

Mast retracted height

h1(mm)

4162

4.3

Free lift height

h2(mm)

3008

4.4

Lift height

h3(mm)

9000

4.5

Mast extended height

h4(mm)

10135

4.7

Cabin height (with/without light)

h6(mm)

2680/2550

4.8

Seat height

h7(mm)

1375

4.10

Support legs height

h8(mm)

500

4.19

Overall length(without guide wheel)

l1(mm)

2300

4.20

Length to face of forks

l2(mm)

1100

4.21

Overall width

b1/b2(mm)

2440/2710

4.22

Fork dimensions

s/e/l(mm)

50/150/1820

4.24

Fork carriage width

b3(mm)

2960

4.25

Fork outside spread

b5(mm)

2900～560

4.26

Support legs inner width

b4(mm)

1340

4.28

Reach distance

l4(mm)

1300

4.31

Ground clearance(laden，under mast)

m1(mm)

145

4.32

Ground clearance(laden，wheelbase center)

m2(mm)

150

4.34

Aisle width

Ast(mm)

if cargo size 5000*2400MM

(loading center 1200mm), aisle width 4000mm

4.37

Body to support arms length

l7(mm)

2300

Unladen in-situ rotation diameter

Wk(mm)

3400

Performance

5.1

Straight travelling speed, laden/unladen

km/h

7

Sideways travelling speed, laden/unladen

km/h

8

5.2

Lifting speed, laden/unladen

mm/s

270/370

5.3

Lowering speed, laden/unladen

mm/s

330/300

5.8

Sideways driving gradeability, laden/unladen

%

8/10

Straight driving gradeability, laden/unladen

%

8/10

5.10

Service brake

Electromagnetic

Parking brake

Electromagnetic

Drive

6.1

Drive motor, rating S2=60

kw

AC 7kw

6.2

Lift motor, rating S3=15%

kw

AC 25.4kw

6.4

Lead acid battery voltage/nominal capacity

V/Ah

standard 80/500

6.5

Battery Weight

kg

1342

6.6

Lithiumbattery(600AH) voltage/capacity/weight

V/Ah/kg

Option 80/600/450

6.7

Lithiumbattery(460AH) voltage/capacity/weight

V/Ah/kg

option 80/460/365
