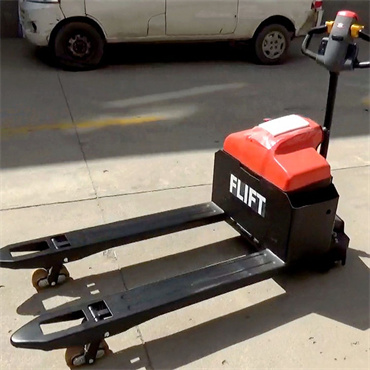

CTXJ15 1.5t Electric Pallet Truck
ModelCTXJ15
Lifting Height200mm
Rated Capacity1500KG
Load Center500mm
Fork Length1120mm
We're here to help:Easy ways to get the answers you need.
- 1.5t Electric Pallet Truck
- China FLIFT 1.5ton walking type DGXJ15 electric pallet truck with load center 500mm.
.jpg)
Technocal Parameters
|
FLIFT CTX18-20 series electric pallet car technical parameters |
|||||
|
Outline |
1 |
place of origin |
|
Changge |
|
|
2 |
Model |
|
CTXJ15 |
||
|
3 |
Power Type |
|
storage battery |
||
|
4 |
Rated Capacity |
Kg |
1500 |
||
|
5 |
Operation Type |
|
Walking Type |
||
|
6 |
Load Centre |
mm |
600 |
||
|
Size |
1 |
Lifting Height |
mm |
200 |
|
|
2 |
Fork Size |
L×W×T |
mm |
1150×155×55 |
|
|
3 |
Fork Distance （outside） |
Min./Max. |
mm |
550/685 |
|
|
4 |
Dimension |
Overall Length |
mm |
1710 |
|
|
5 |
Over Width |
mm |
550/685 |
||
|
6 |
Over Height |
mm |
1370 |
||
|
7 |
Min. Turning Radius |
mm |
1300 |
||
|
8 |
Min right angle aisle width |
mm |
1500 |
||
|
performance |
1 |
Speed |
Driving Speed（Full Load） |
km/h |
3.5 |
|
2 |
Lifting Speed（Full Load） |
mm/sec |
27 |
||
|
3 |
Maximum speed climb (full load) |
% |
4 |
||
|
4 |
Self Weight |
Kg |
175 |
||
|
Tyre |
1 |
Tyre type |
Wheel bearing |
|
85x70 |
|
2 |
Driving wheel |
|
210x70 |
||
|
Power Unit |
1 |
storage battery |
voltage |
V/Ah |
2x12/45 |
|
2 |
MOTOR |
Driving Engine |
kw(60min) |
0.85 |
|
|
3 |
oil pump motor |
kw(15min) |
0.8 |
||
|
4 |
Controller |
of origin |
|
CURTIS（USA） |
|
FEATURES
1.Innovative Design, walking type
2.Simplified Serviceability;
3.Enhanced Productivity;
4.This pallet track has a compact structure and a small turning radius
5.The battery can be equipped with 24V38Ah/45Ah/60Ah, or lithium battery.
6.Adopting mature drive system with reliable performance.
7. Manual or electric/electric dual purpose can be selected for lifting.
8.Super low & Non-slip step.
.jpg)

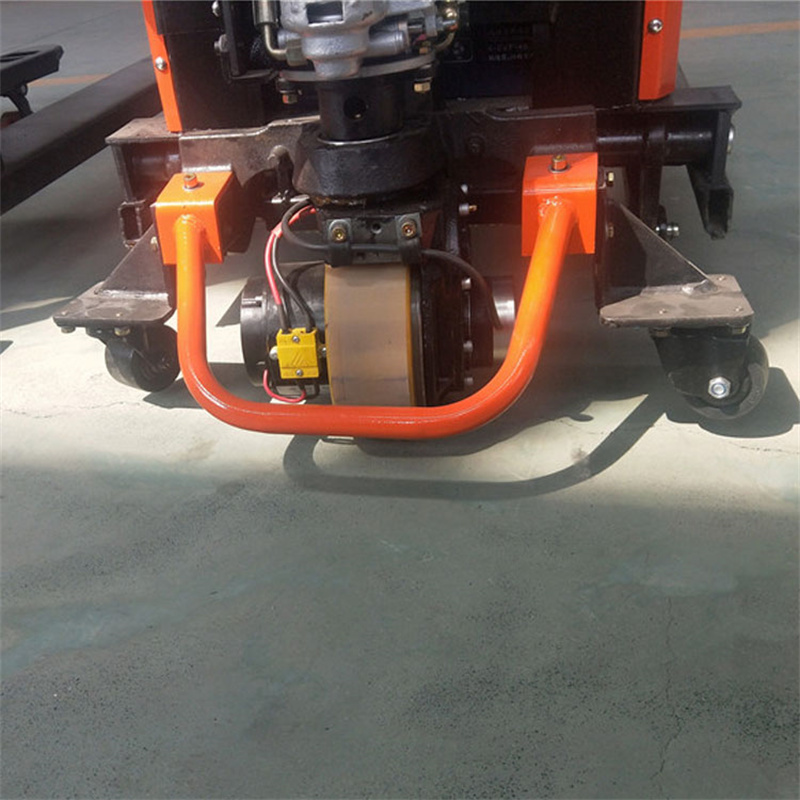

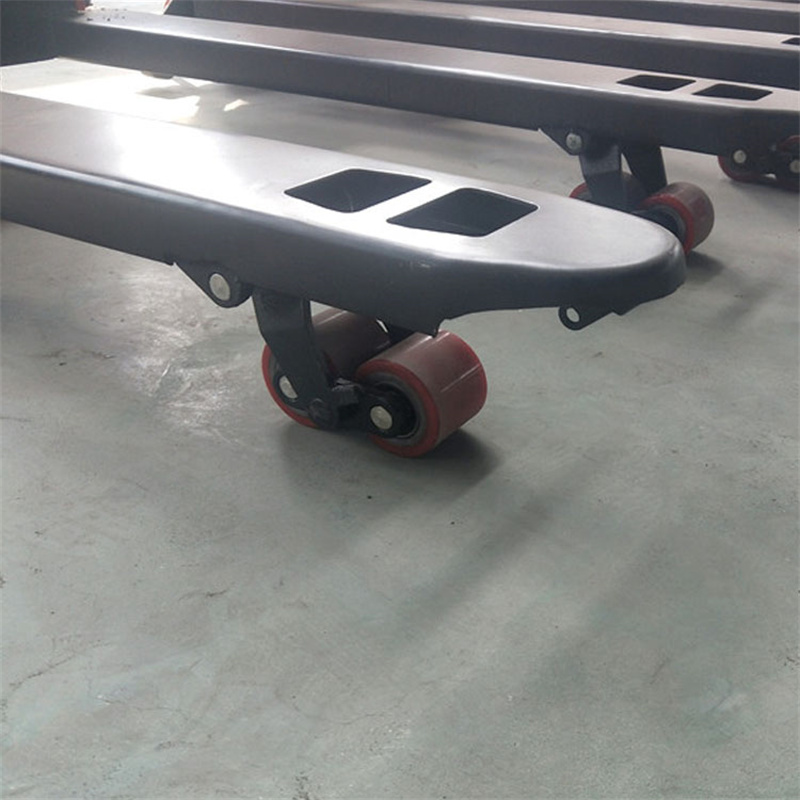

Product Display
.jpg)
.jpg)
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
.jpg)
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
