How High Reach Trucks Are Revolutionizing Warehouse Storage Solutions?

Technical Parameters

Description		Electric Reach Truck Specifications
Model		FBR15	FBR18	FBR20	FBR25
Power		battery	battery	battery	battery
Operation		seated	seated	seated	seated
Rated load capacity	kg	1500	1800	2000	2500
Lift height	mm	3000-8000	3000-8000	3000-8000	3000-8000
Load center	mm	500	500	500	500
Fork carriage tilt(F/R)	%	3/5	3/5	3/5	3/5
Travel speed(forward and backward)	mm	10	10	10	10
Lifting speed(laden)	mm	300/400	300/400	300/400	300/400
Gradeability	mm	10	10	10	10
Min turning radius	mm	1775	1775	2000	2000
Reach distance	mm	500	500	500	500
Wheelbase	mm	1558	1558	1558	1558
Overall length	mm	2248	2248	2345	2345
Overall width	mm	1200	1200	1230	1230
The fork declines height	mm	2080	2080	2080	2080
Free lift height	mm	100	100	100	100
The fork rises height	mm	4007	4007	4007	4007
Height of overhead guard	mm	2165	2165	2165	2165
Fork size(LxWxT)	mm	920x120x35	920x120x35	1070x120x40	1070x120x40
Fork spread	mm	240-750	240-750	240-750	240-750
Guard clearance(Body)	mm	90	90	90	90
Aisle width with pallet(1200x1200)	mm	2700	2700	2900	2900
Aisle width with pallet(1000x1000)	mm	2600	2600	2700	2700
Service weight	kg	2700	2850	2900	3100
Drive motor	kw	5	5	5	5
Lift motor	kw	10	10	10	10
Voltage/capacity	V/AH	48/400	48/400	48/400	48/400
Tyres		polyurethane tyre
Size of front tyre		Ф254x102	Ф254x102	Ф267x114	Ф167x114
Size of rear tyre		Ф343x140	Ф343x140	Ф343x140	Ф343x140
Track width(front)	mm	1087	1087	1087	1087

FEATURES

1:AC system, stepless speed regulating, high stability.
2:High speed limit, ensure the security of aloft work.
3:EPS electric power-assisted steering with slight and flexible performance, equipped with standard CURTIS brand controller.
4:Instruments with angle reminder of steering wheel, the steering wheel reset automatically when the electric reach forklift gets started.

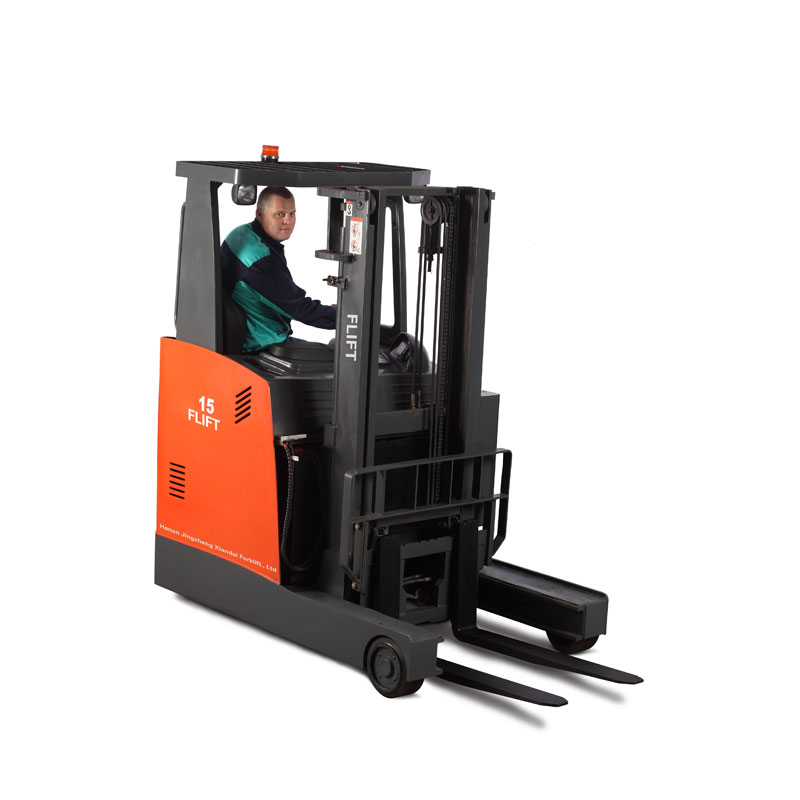

5:1.5 ton electric reach truck is available with an optional 3-stage mast and side shifter, giving you greater lifting flexibility and precise pallet handling.
6:With a compact 1775mm turning radius, our electric reach truck is designed for smooth operation in narrow aisles and tight warehouse spaces.
7:LCD display screen and camera.

byd reach truck

Applications

electric reach truck for sale electric reach truck forklift narrow aisle electric forklift

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
