CTX20 2t Elecric Pallet Truck

ModelCTX20

Lifting Height205mm

Rated Capacity2000kg

Load Center500mm

Turning Radius1400mm

We're here to help:Easy ways to get the answers you need.

2 Ton Electric Pallet Truck
Hot Sale Lifting Height 205mm electric pallet truck CTX20 2ton with Load center 500mm.

Technical Parameters
 FLIFT Electric Pallet Truck Forklift Specification

FEATURE
1.1 Origin   China
1.2 Brand    FLIFT
1.3 Model   CTXZ-20
1.4 Power Type   Lead Battery
1.5 Operation Type   Standing-driving
1.6 Rated Capacity kg 2000
1.7 Load Center mm 500
1.8 Lifting Height mm 200

DIMENSION
2.1 Overall Dimension(L/W/H) mm 1750×720×1280
2.2 Fork Sizes mm 1150×140×50
2.3 Fork Width Min./Max. mm 550/688
2.4 Min. Ground Clearance mm 85
2.5 Turning Radius mm 1580
2.6 Min.Right Angle Channel Width mm 2330

WEIGHT
3.1 Self-weight(with battery) kg 320
3.2 Battery Weight kg 20

WHEEL
4.1 Wheel Type
(driving/turning)
   Solid PU
4.2 Driving Wheel Sizes mm 252×88
4.3 Loading Wheel Sizes mm 80×70

DRIVING

CONTROL
5.1 Driving Motor kw(60min) 0.8
5.2 Lifting Motor  kw(60min) 0.8
5.3 Battery Dimension mm 271×174×213
5.4 Battery Voltage/Capacity V/ah 2x12/80
5.5 Controller   DC
5.6 Working Pressure mpa 14

PERFORMANCE
6.1 Travel speed(laden/unladen) km/h 4.5/5
6.2 Lifting speed(laden/unladen) mm/s 30/34
6.3 Max Climbing Ability % 5
6.4 Braking   electromagnetic induction

OTHER
7.1 Driving Type    Electric
7.2 Steering System    Manual
7.3 Noise Level   63
7.4 Waterproof Grade   IPX4

FEATURES



                  Big Steering wheel

                   provide more stable, safe and convenient!

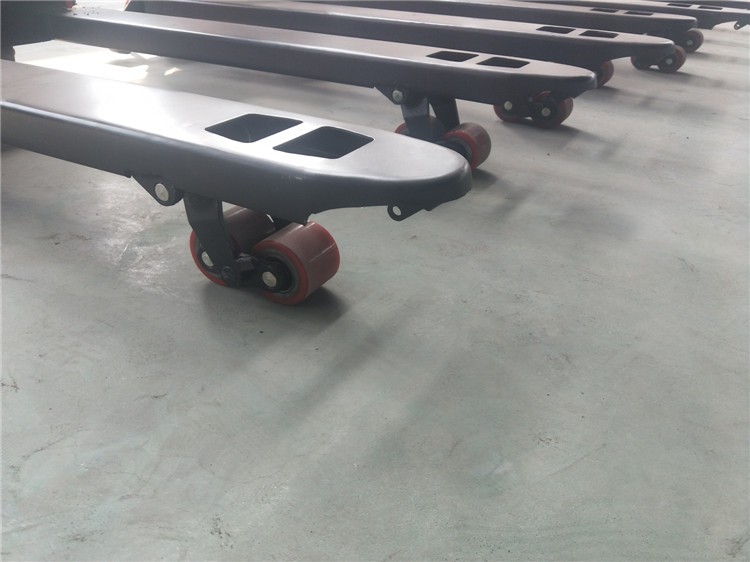

PU wheels

has elasticity, good shock absorption effect, not easy to slip, more wear resistance and good comfort performance.


Reinforced frame made from 6mm thickness steel plate.



                     Easy Handle buttons

                       simple the operation.

550/685mm fork width

meet your requirement of different pallets.



Applications



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
