Off Road Stacker 1 Ton Capacity Heavy Duty Outdoor Pallet Lifter

Technical Parameters

FLIFT 1ton Outdoor Rough terriain Electric Pallet Stacker Specification
FEATURE	1.1	Origin		China
	1.2	Brand		FLIFT
	1.3	Model		DGXP-10A
	1.4	Power Type		Battery
	1.5	Operation Type		Standing-Driving
	1.6	Load Capacity	kg	1000
	1.7	Load Center	mm	400
	1.8	Lift Height	mm	2000-3000
	1.9	Wheel Base	mm	1165
DIMENSION	2.1	Overal Dimension	mm	1584×1150
	2.2	Mast unraise/raise Height	mm	1580/2550
	2.3	Fork Dimension(L×W×H)	mm	1070×140×35
	2.4	Fork Width Min./Max.	mm	685
	2.6	Turning Radius	mm	1350
	2.7	Min.Right Angle Channel Width	mm	1436
WEIGHT	3.1	Self weight	kg	1700
WEIGHT	4.1	Wheel Type		PU
WHEEL	4.2	Driving Wheel Sizes	mm	230×75
	4.4	Loading wheel sizes	mm	370×100
	4.5	Min. Ground Clearance	mm	114
	5.1	Driving Motor	kw(60min)	1.5
DRIVE＆CONTROL	5.2	Liifting Motor	kw(60min)	2.2
	5.4	Battery Voltage/Capacity	V/Ah	24/150
	5.5	Controller	Us Curtis	AC
	5.6	Working Pressure	mpa	14
	6.1	Driving Speed	km/h	4.5/5
	6.2	Lifting Speed	mm/s	130/150
PERFORMANCE	6.3	Lowering Speed	mm/s	40/55
	6.6	Max Climbing Ability	%	5
	6.7	Service Braking		electromagnetic induction
	6.8	Parking Braking		electromagnetic induction
	7.1	Driving type		Electric
	7.2	Steering Type		Electric
	7.3	Noise Level		63

	7.4	Waterproof Grade		IPX4

FEATURES

1.DC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.The Rough Terrain Stacker is designed for outdoor performance, offering strong stability and smooth operation with up to 5% gradeability for efficient material handling;

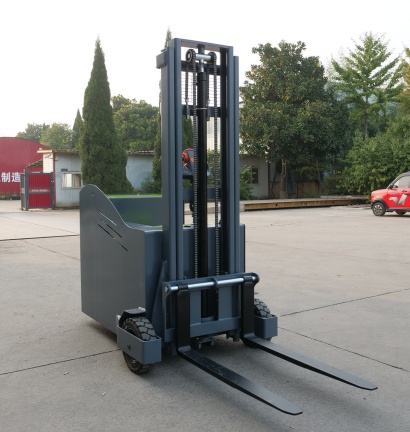

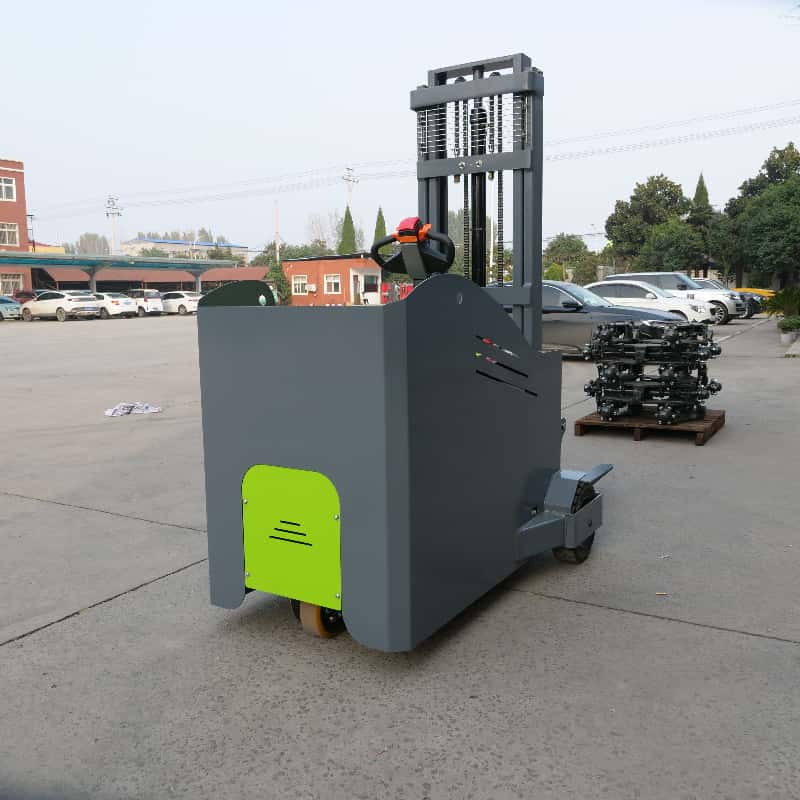

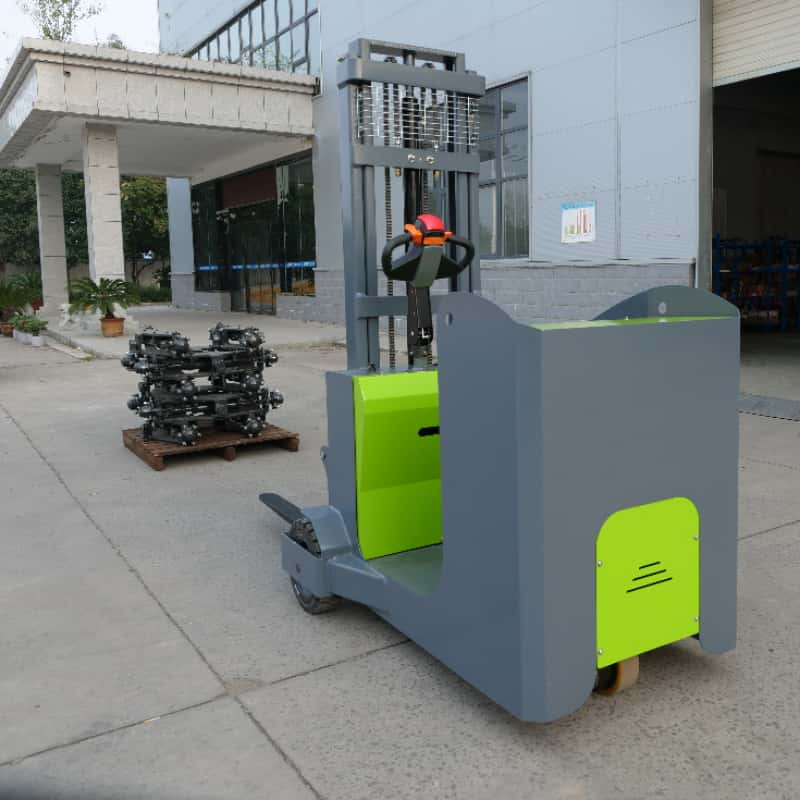

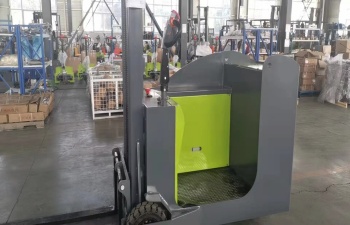

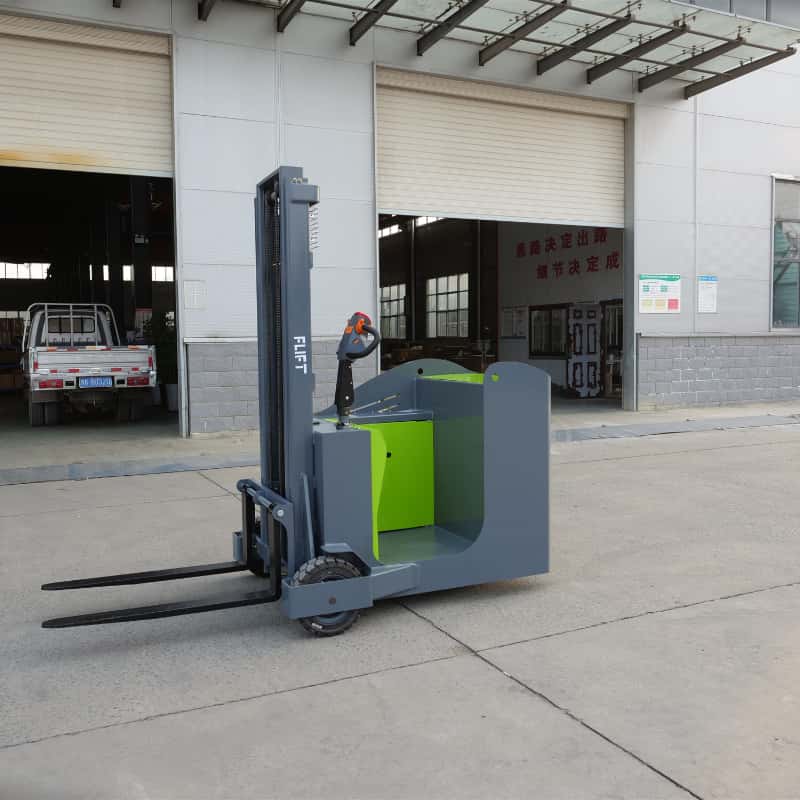

Off road electric stacker

Applications

After-sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
