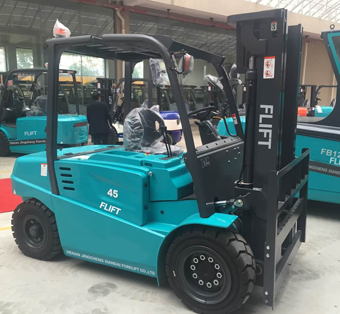

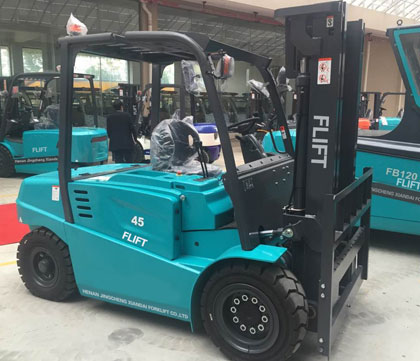

4.5 ton electric forklift,forklift truck

technical parameters

Model		FB40	FB45	FB50	FB60	FB80	FB100
Capacity	kg	4000	4500	5000	6000	8000	10000
Load center	mm	500	500	500	500	500	500
Lift height	mm	3000	3000	3000	3000	3000	3000
Fork size(LxWxH)	mm	1070x150x50	1070x150x50	1070x150x50	1070x150x50	1520x180x70	1520x200x80
Mast tilt angle(F/R)	Deg	6°/9°	6°/9°	6°/9°	6°/9°	6°/9°	6°/9°
Length to face of fork	mm	3030	3030	3030	3030	3600	3800
Overall width	mm	1600	1600	1600	1600	2000	2000
Mast lowered height	mm	2330	2330	2330	2330	2580	2580
Mast extended height	mm	4255	4255	4255	4255	4500	4500
Overhead guard height	mm	2255	2255	2255	2255	2400	2400
Turning radius	mm	2755	2755	2755	2755	3250	3250
Min right angle aisle width	mm	2955	2955	2955	2955	3800	3800
Ground clearance	mm	160	160	160	160	>200	>200
Wheelbase	mm	2000	2000	2000	2000	2400	2400
Travel (no load)	km/h	14	14	14	14	14	14
Lifting (full load)	mm	250	220	220	220	200	200
Gradeability(laden)	%	15	15	15	15	15	15
Service weight	kg	7400	7500	7800	8200	9000	10500
Front tire		28x12.5-15-24PR	28x12.5-15-24PR	28x12.5-15-24PR	28x12.5-15-24PR	825-15-24PR	825-15-24PR
Rear tire		7.00-12-14PR	7.00-12-14PR	7.00-12-14PR	7.00-12-14PR	825-15-24PR	825-15-24PR
Battery (voltage/capacity)	V/ah	80/600(700/800)	80/600(700/800)	80/700(800/880)	80/800(8)	80/900	80/1000
drive motor	kw	2x11	2x11	2x11	2x11	2x19	2x19
lift motor	kw	26	26	26	26	2x26	2x26
Controller manufacturer		SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS	SME/ZAPI/CURTIS

FEATURES

1. Spacious workplace: Ample leg room helps to provide a relaxed working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
2. Adjustable steering wheel and safety seat.
3. Humanized right-side hydraulic operation handle and emergency power-off button.
4. Super low non-slip pedal.
5. Full-view mast and fork carriage ensure operator`s excellent operation vision.
6. High-strength overhead guard.
7.The controller is directly fixed in the balanced weight to lead better hear dissipation.
8.Side cover can be quickly removed without any tools; Hood cover angle ≥90°，makes a convenient battery maintenance.

Applications

After-sales service

Goodsense warranty policy ：
If anything go wrong within 12months or 1000 hours , which ever
come first from the date of purchase Goodsense will pay for parts to
have the repairs conducted any shipping expenses will be also paid
by Goodsense and in return, clients need to give back the parts
needed to be exchanged to Goodsense, with shipping expenses
paid. If a part is bad and urgent, clients take photos of nameplate, sides
of the whole forklift and the bad part, Goodsense can send out the
part within a day. And if the weight not excess 10KGs, Goodsense
can deliver parts to clients by DHL, Fedex or else, if it is heavier,
shipped by sea within a day.
As for the labor, Goodsense will refund clients with 100dollar per set, if clients quantity excess 20 sets yearly.
Goodsense will not be responsible for damage cause by the user or owner or lack of required maintenance or abuse.
