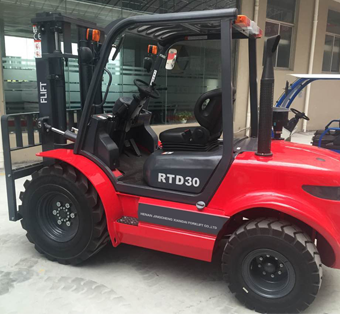

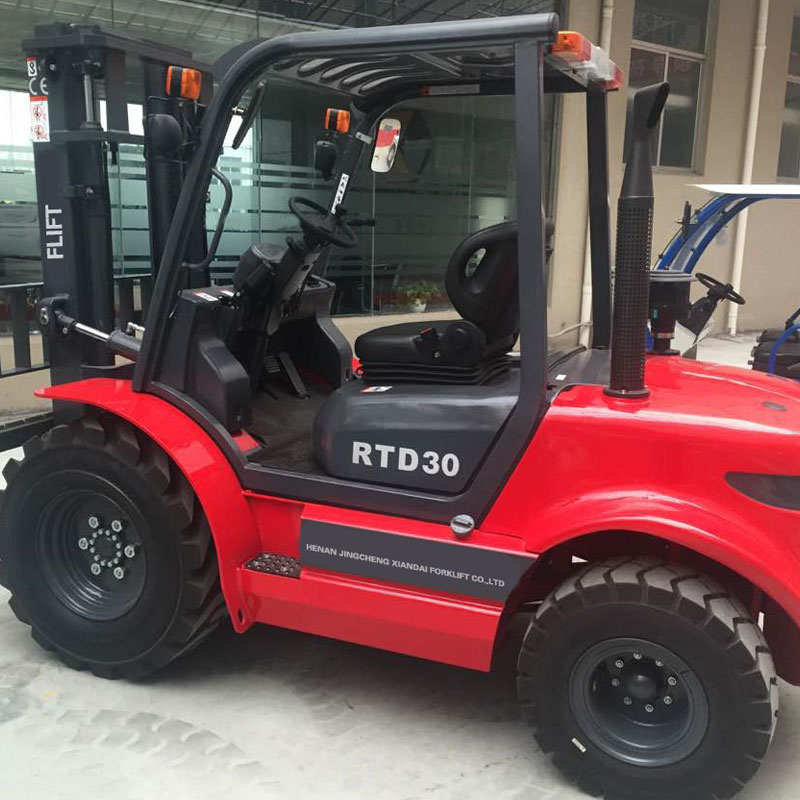

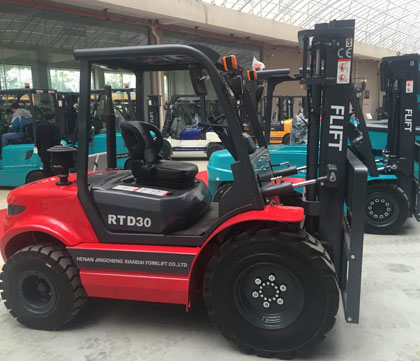

Rough Terrain Forklift
Max.Gradeability35%
Driving Type4wd/2wd Switch
Rated Capacity3000kg-5000kg
Power SourceDiesel Engine
Lifting Height3000-5500mm (2 /3 Stage Mast)
We're here to help:Easy ways to get the answers you need.
- 3.0ton-5ton off road forklift
- FLIFT off road forklift — handle rough ground effortlessly. Find durable, high-performance machines for your toughest jobs today!
Technical Parameters
|
4WD Forklift 3.0T- 3.5T- 5.0T Rought Terrain Forklift Specficications |
|||||||
|
General |
1 |
Model |
|
RTD30 |
RTD35 |
RTD50 |
|
|
2 |
Brand |
|
FLIFT |
FLIFT |
FLIFT |
||
|
3 |
Power Type |
|
Diesel |
Diesel |
Diesel |
||
|
4 |
Rated Capacity |
kg |
3000 |
3500 |
5000 |
||
|
5 |
Load Centre |
mm |
600 |
600 |
600 |
||
|
Characteristic & Dimension |
6 |
Lift Height |
mm |
3000 |
3000 |
3000 |
|
|
7 |
Fork Size |
L×W×T |
mm |
1220*125*45 |
1220*125*45 |
60x150x1220 |
|
|
8 |
Mast Tilt Angle |
F/R |
Deg |
10°/12° |
10°/12° |
12°/12° |
|
|
9 |
Front Overhang (Wheel Center to fork face) |
mm |
601 |
601 |
736 |
||
|
10 |
Ground Clearance (Bottom of chassis) |
|
265 |
265 |
335 |
||
|
Ground Clearance (Bottom of mast) |
mm |
250 |
250 |
330 |
|||
|
11 |
Overall |
Length to face of fork (Without fork) |
mm |
3060 |
3060 |
3496 |
|
|
12 |
Overall Width |
mm |
1605 |
1605 |
2082 |
||
|
13 |
Mast Lowered Height |
mm |
2205 |
2240 |
2456 |
||
|
14 |
Mast Extended Height (With backrest) |
mm |
4200 |
4200 |
* |
||
|
15 |
Overall Guard Height |
mm |
2150 |
2150 |
2426 |
||
|
16 |
Turning Radius (outside) |
mm |
2750 |
2810 |
4540 |
||
|
17 |
Min. insecting Aisle |
mm |
2900 |
2900 |
4200 |
||
|
Performance |
18 |
Speed |
Travel(Unloaded/Loaded) |
km/h |
19/20 |
19/20 |
22/23 |
|
19 |
Lifting(Unloaded/Loaded) |
mm/s |
430/500 |
430/500 |
380/430 |
||
|
20 |
Lowing(Unloaded/Loaded) |
mm/s |
≤600 / ≥300 |
≤600 / ≥300 |
450/400 |
||
|
21 |
Max. Gradeability |
% |
30 |
30 |
30 |
||
|
Chassis |
22 |
Vacuum |
Front |
|
14-17.5-14PR |
445/70R19.5 |
|
|
Rear |
|
27x10-12-12PR |
27x10-12-12PR |
445/70R19.5 |
|||
|
23 |
Tread |
Front |
|
1250 |
1250 |
1640 |
|
|
Rear |
|
1205 |
1470 |
||||
|
24 |
Wheel Base |
mm |
1835 |
1835 |
2050 |
||
|
25 |
Service Weight |
kg |
4800 |
5150 |
8850 |
||
|
Power and transmission |
26 |
Battery |
Voltage/Capacity |
V/Ah |
12V/110AH |
12V/120Ah |
|
|
|
|
Engine Model Type |
XinChang 4D32G31 |
XinChang 4D32G31 |
Cummins QSF2.8T4TC74L EPA-Tier 4 |
||
|
27 |
Transmission |
Rated output |
Kw/ r.p.m |
36.8/2500 |
36.8/2500 |
55/2500 |
|
|
28 |
Type |
|
Hydraulic |
Hydraulic |
Hydraulic |
||
|
30 |
Operating Pressure |
Mpa |
18 |
18 |
18 |
||
|
31 |
Fuel tank capacity |
L |
60 |
60 |
135 |
||
|
|
32 |
|
Displacement |
cc |
3.167 |
2.8 |
|
FEATURES
Rough Terrain Forklift Truck
Character:

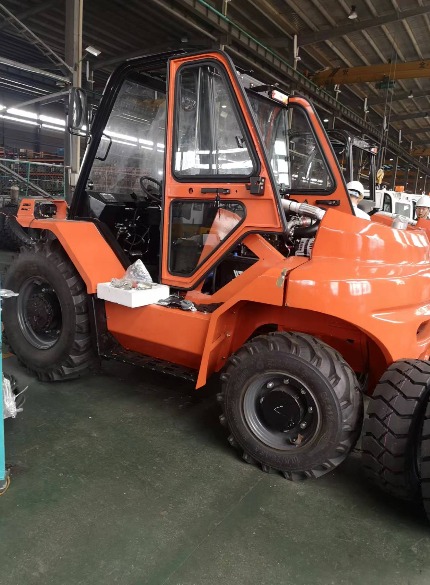

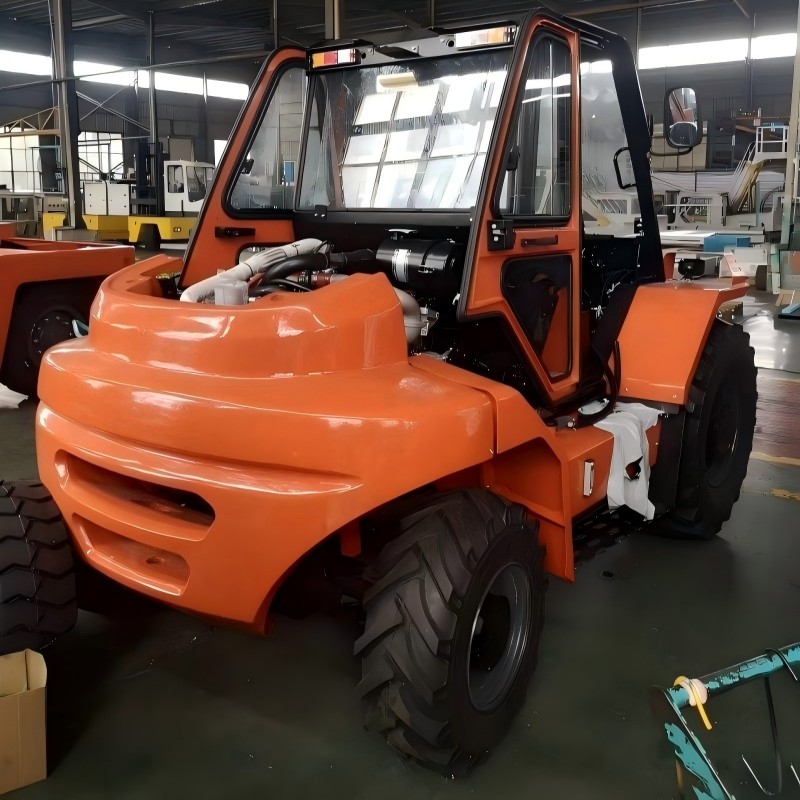

1.High Strength Overhead Guard, Standard overhead guard and full cabin for options, cabin can equip with heater and air-conditioner. Top cover ceiling adopts high-strength steel plate stamping.
2.High Position Intake and Exhaust System Vertical exhaust with good drainage performance, provide all weather operations.Vertical exhaust effectively prevent ground dust and rain from entering the inlet.
3. Reliable Lifting System, Wide view mast prepare driver perfect view, compare with normal mast’s 10%wider,which provide more efficient and safety.
4.High Eficient Transmission System. Using switch to control between two and 4-wheel drive. Using 2-wheel mode driving on paved roads is more fuel-efficient and environmentally friendly.When driving on muddy roads,the 4-wheel drive mode help the vehicles pass smoothly and safety.
5.Super High Ground Clearance. Front and rear wheels use deep-pattern widening off-road vacuum tires,with strong off-road capability, excellent vehicle stability and shock absorption. Steering axle swings up to 7°, good maintaining grip on rugged mountain or muddy terrain.350mm ground clearance, strong pass ability.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
