Technical Parameters

2T electric straddle pallet stacker specifications
Model		CDD-20
Driving style		Stand-up
Load rating	(kg)	2000
Lifting height	mm	3000-4000
Load center distance	(mm)	600
Front overhang	(mm)	694
wheelbase	(mm)	1426
Vehicle weight(including battery)	kg	1200
Axle load when no-load,drive side/load-bearing side	kg	780/420
Axle load at fll load,drive side/load-bearing side	kg	898/2302
Tire type		PU
Tire size,load-bearing side	mm	φ85×70
Tire size,drive side	mm	φ230×75
Stabilize wheel size	mm	φ130x55
Number of wheels,front/rear(x=drive wheels)		4/1X-4
Wheel base,drive side	mm	604
Wheel base,load-bearing sides	mm	490
Wheel base,outer auxiliary wheel side	mm	1196
Maximum height of mast during lifting (including retaining rack)	(mm)	5050
The height of the joystick from the ground	(mm)	1510
Fork face ground clearance	(mm)	86-88
The height of the platform	(mm)	140
Overall length:Pedal retracted/pedal down	(mm)	2160/2560
Overall width	mm	850/1360
Fork size	mm	1150/190/65
Rack width	(mm)	800
Fork outside spacing	(mm)	680
Medial leg distance	(mm)	370
Vehicle ground clearance	(mm)	29
Stacking channel width(pallet 1000×1200)1200 straddle forks The pedal is retracted/lowered	Ast(mm)	2600/2990
Stacking channel width (pallet 800×1200)1200 along fork pedal retracted/lowered	Ast(mm)	2565/2960
Turning radius The pedal is retracted/lowered	(mm)	1720/2112
Maximum climbing capacity,ful/no load	%	5/8
Drive Motor Power	kw	1.5(AC)
Lift motor power	kw	3
Battery,voltage/rated capacity	V/Ah	24/210
Service weight	kg	150

FEATURES

1.DC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger,Multi-function integrated handle/electronic steering;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.Body shock absorption system/pedals,Forging forks and optional Lithium battery;

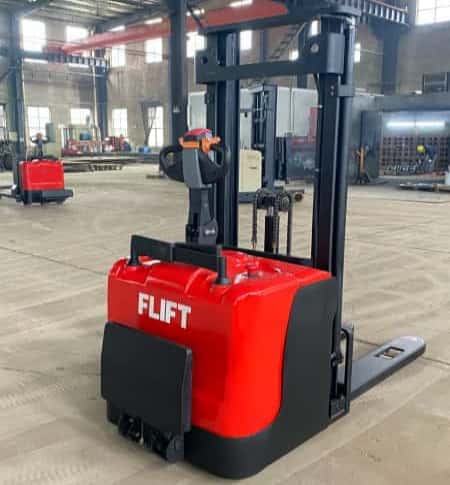

electric straddle pallet stacker

Applications

straddle leg electric stacker straddle pallet stacker 2ton electric straddle stacker

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

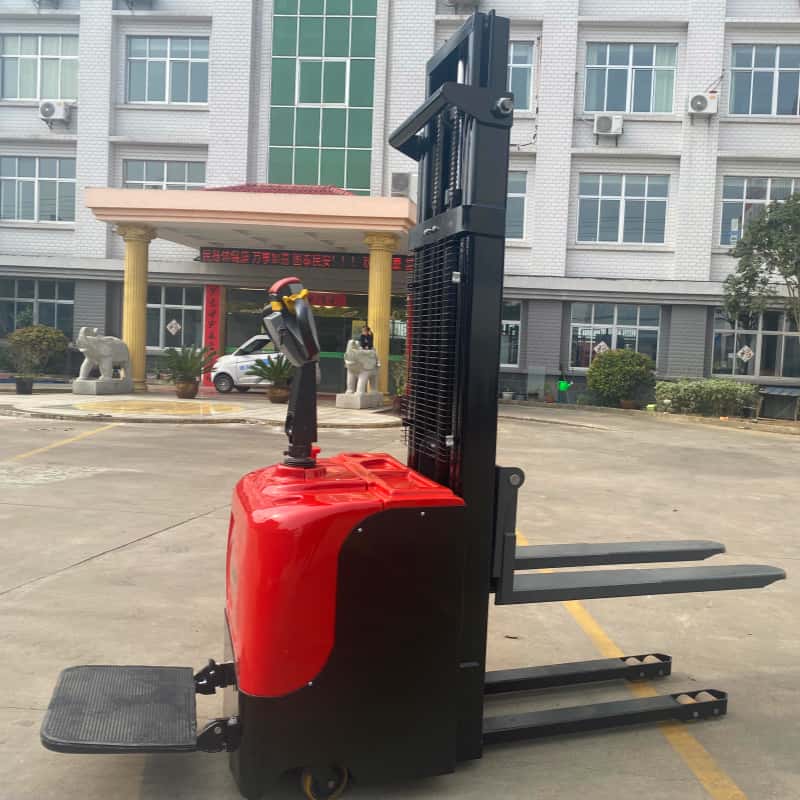

2ton straddle pallet stacker for sale
