Durable Walkie Stacker Forklift | High-Performance Electric Pallet & Reach Stacker

Technical Parameters

2ton electric pallet stacker specifications (Walking type)
Brand		FLIFT
Model		CDD20D-30
Dynamic type		Electric
Operation Type		Walking
Rated Capacity	kg	2000
Load Center	mm	500
Tyre type front/rear		PU
Numbers of Tires		4/1x+1
Mast type		2 Stages
Standard Lifting Height	mm	3000
Mast Lowered Height	mm	2080
Mast Extended Height	mm	3565
Minimum height of cargo above ground	mm	85
Overall Length	mm	2030
Wheel Base	mm	1430
Overall width	mm	850
Tread front/rear	mm	490/545
Fork Size	mm	1150/190/65
Outer distance of fork side	mm	680/560
Turning Radius	mm	1645
Aisle Width (1200x1000 pallets, 1200 horizontal)	mm	2515
Driving Speed (full/no load)	Km/h	4.0/4.5
Lifting Speed (full/no load)	mm/s	80/125
Descend Speed (full/no load)	mm/s	160/105
Gradeability (full/no load)	%	6%/10%
Driving motor capacity	KW	1.5
Lifting motor type		DC
Lifting motor capacity	KW	2.2/3.0
Battery Voltage/ Capacity	V/AH	24/100
Battery Weight	kg	75
Overall Weight (with battery)	kg	850
Steering Type		Manual
Parking brake mode		Electromagnetic
Parking brake operation mode		Handle Operation

FEATURES

1.DC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.Automatic deceleration in corners;

electric pedestrian stacker

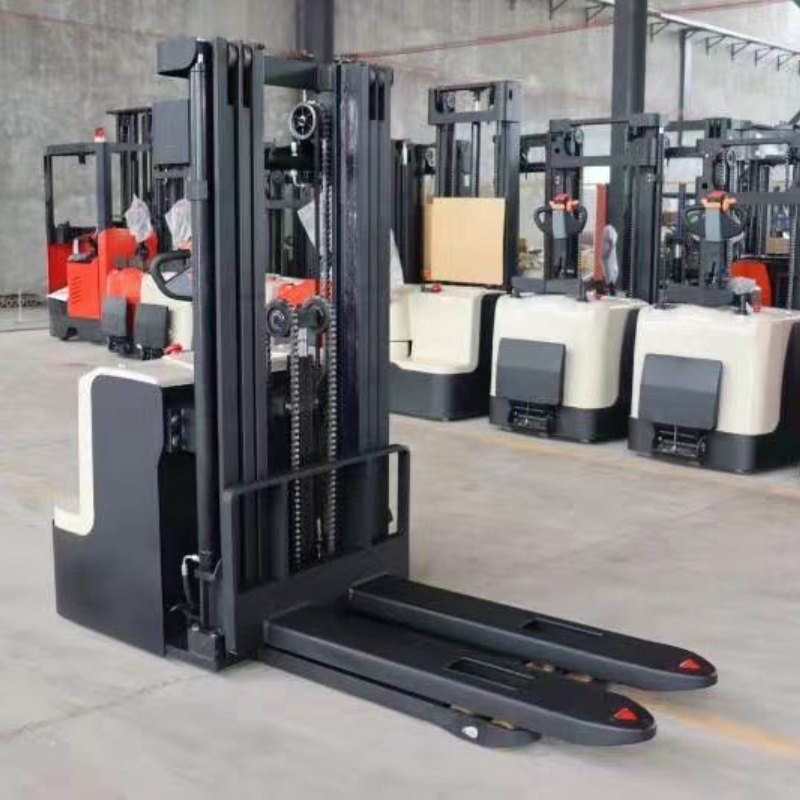

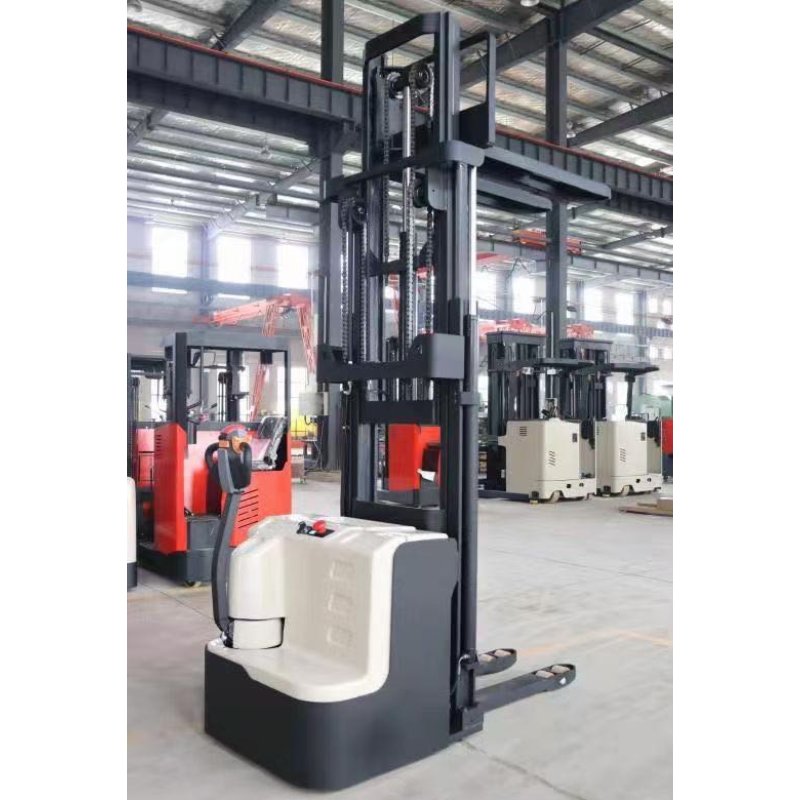

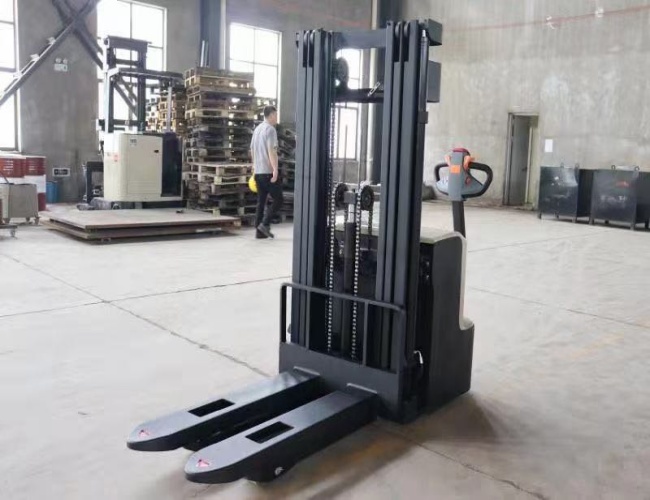

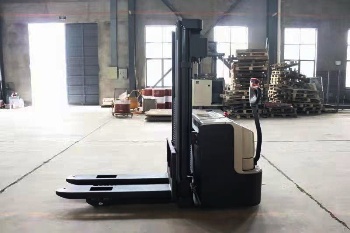

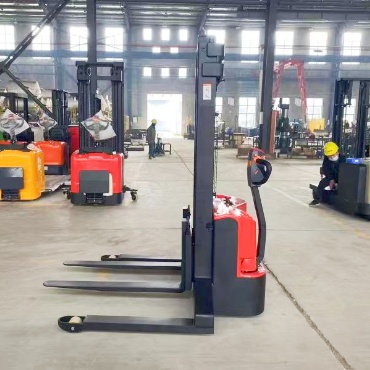

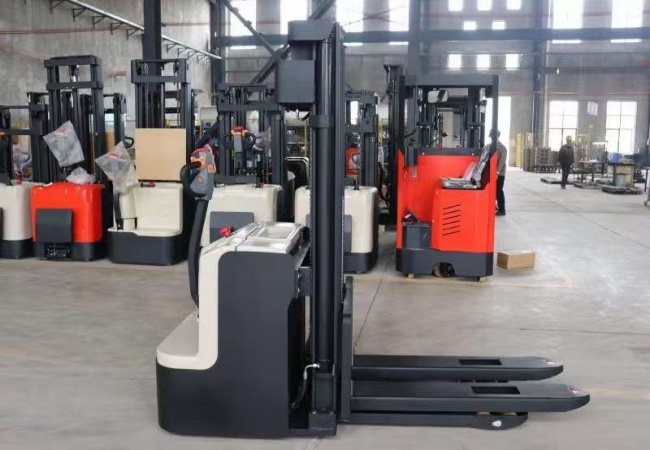

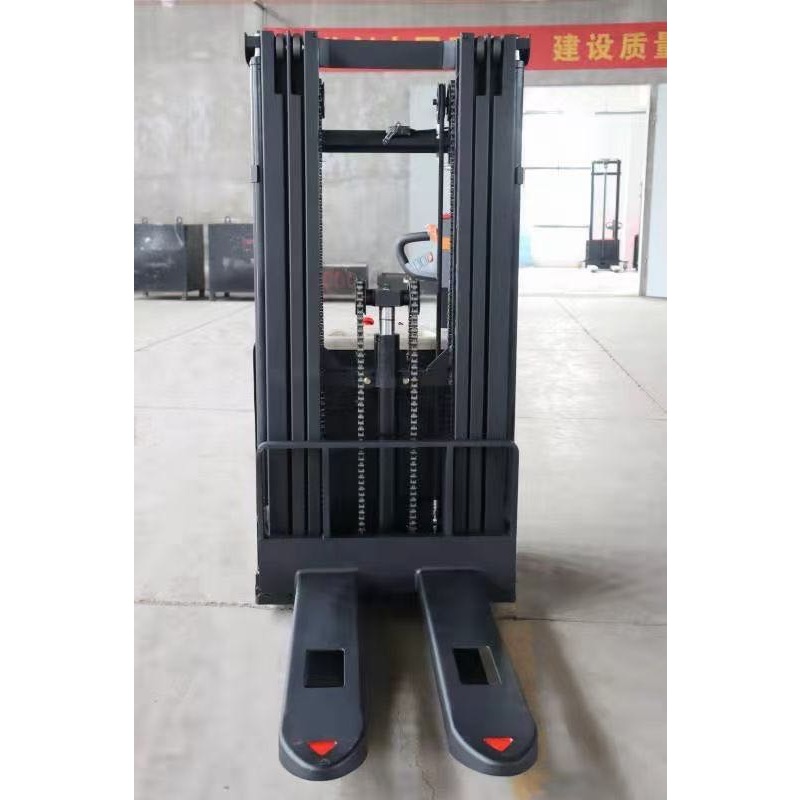

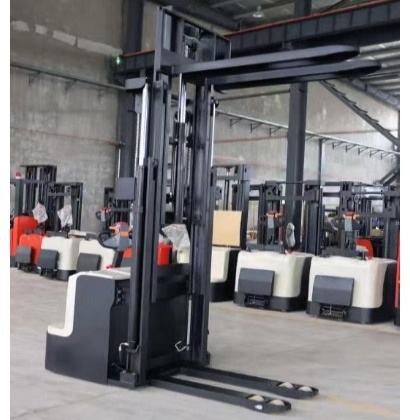

Product Display

reach walkie stacker
walkie stacker electric

After-sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
