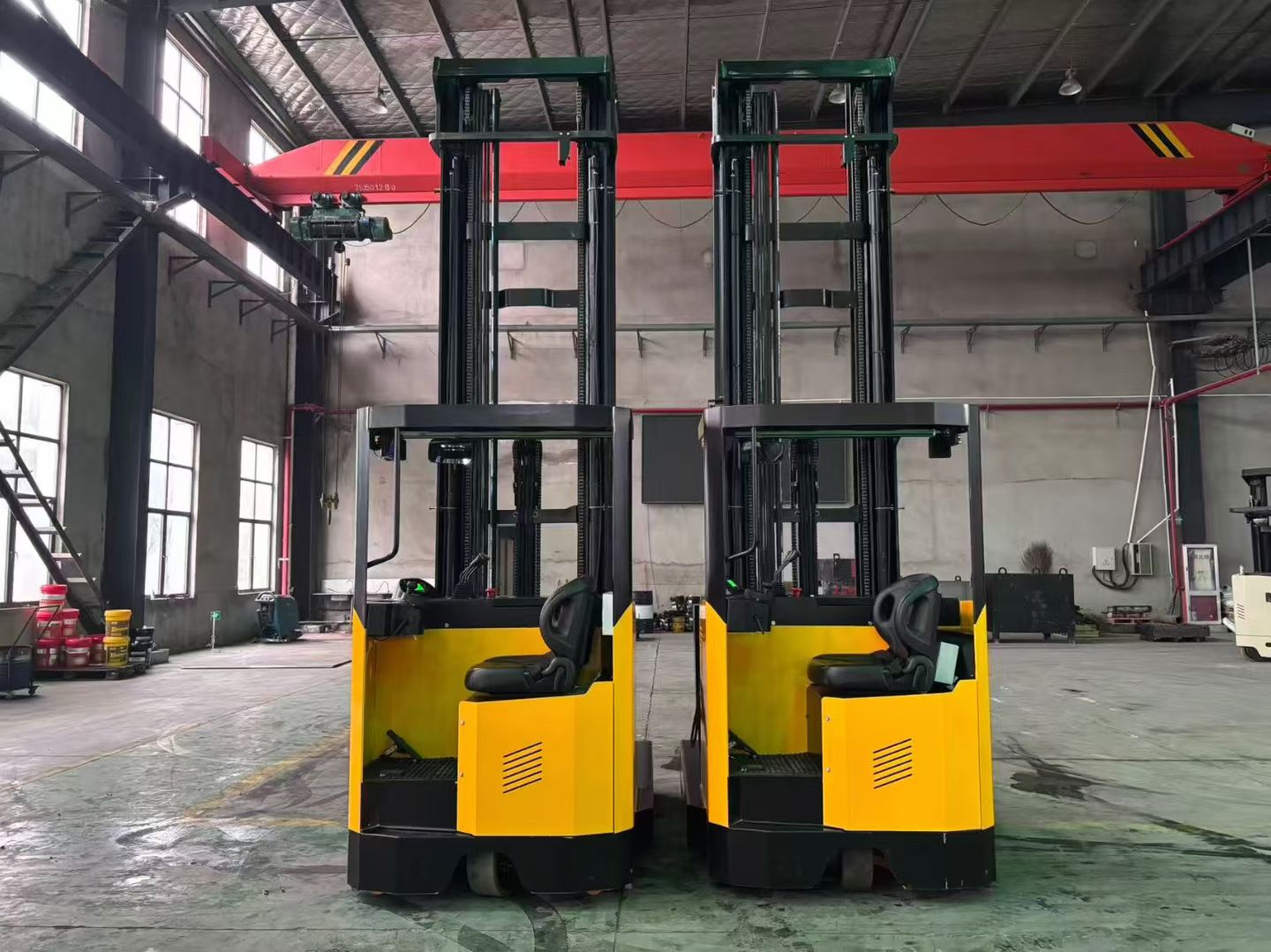

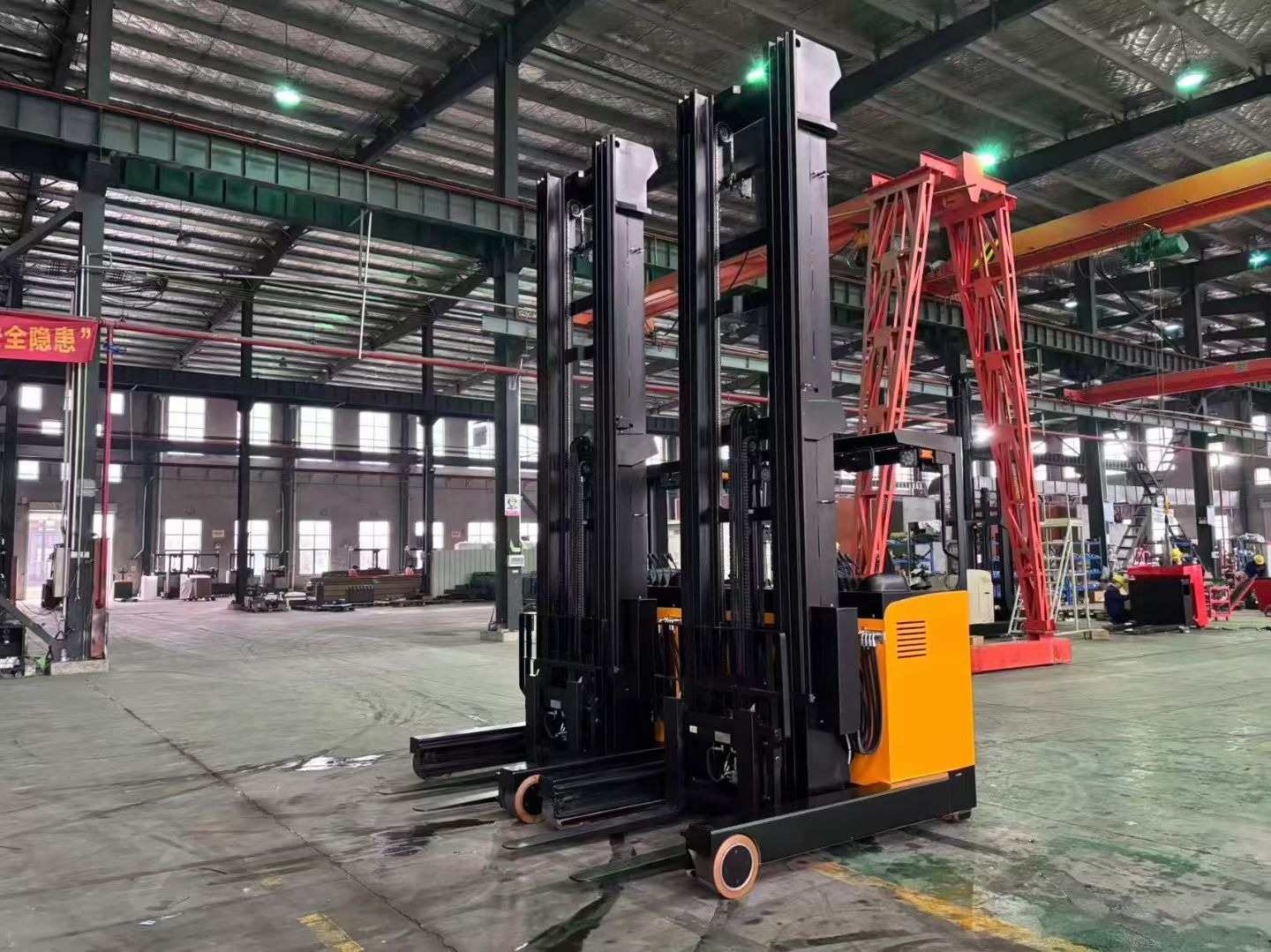

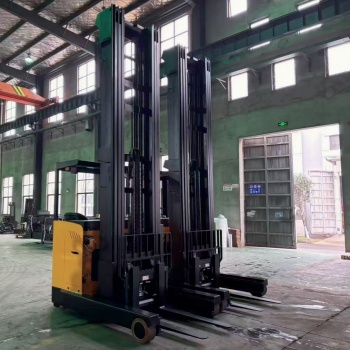

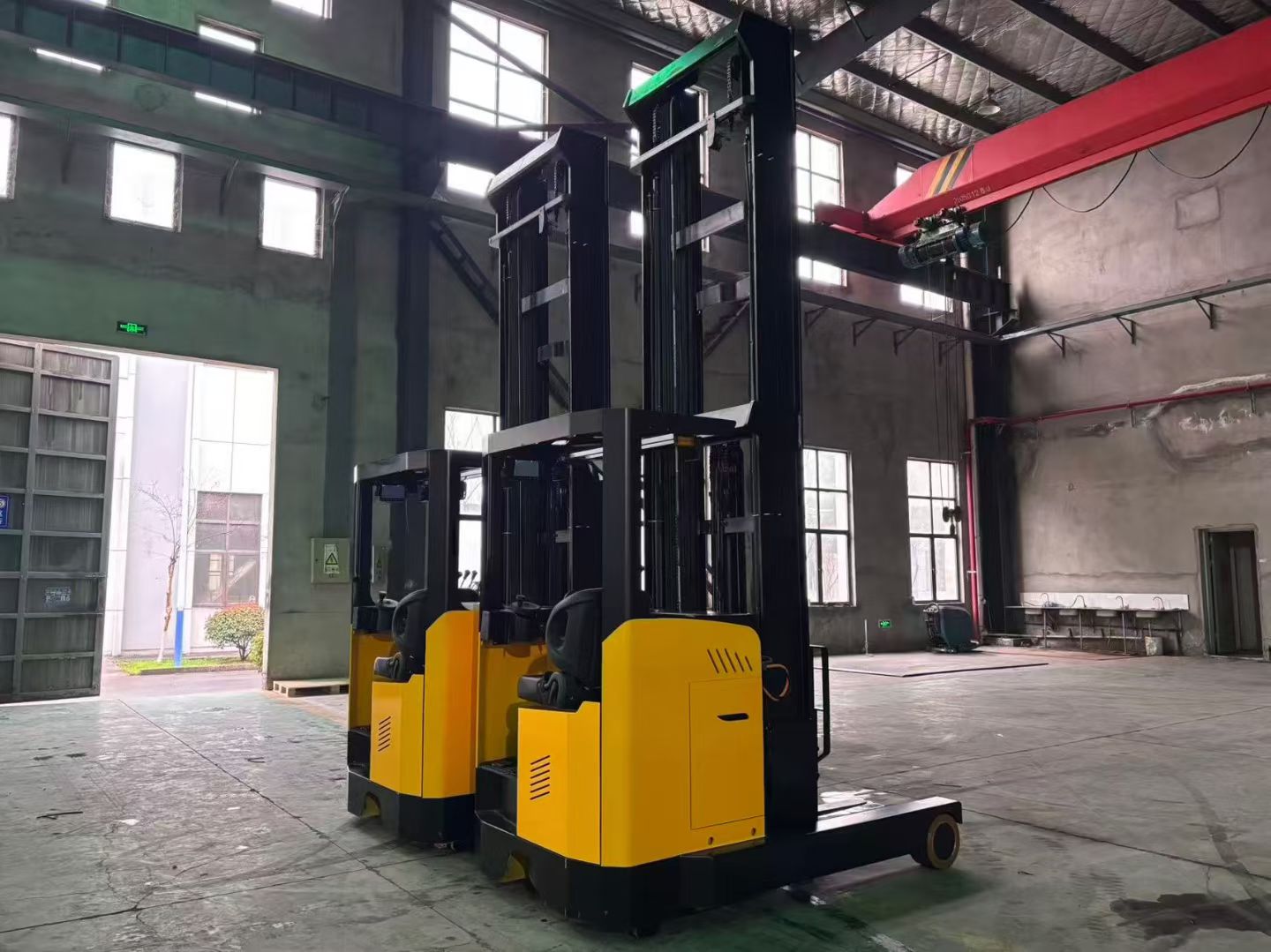

3T Heavy Duty Narrow Aisle Electric Reach Forklift

Technical Parameters

FLIFT 3ton Electric Sit-Down Reach Truck Specifications
Model		CQD-30
Operation Type		Seated Type
Rated Capacity	kg	3000
Tyre mode	mm	Solid PU
Front Wheeling Size	mm	Φ267*114
Driving Wheeling Size	mm	Φ343*135
Numbers of Tires		2/1X
Mast Tilt Angle		3°/5°
Lifting Height	mm	10000
Mast Lowered Height	mm	5020
Overhead Guard Height	mm	2190
Fork Height	mm	310
Seat height	mm	975
Secondary pedal height distance from overhead guard	mm	1615
Fork leg clearance	mm	110
Forklift Body floor clearance	mm	80
Overall Length	mm	2500
Forward distance	mm	650
Front overhang	mm	160
Wheel Base	mm	1665
Oveall Width	mm	1270
Tread (Front/Rear)	mm	1158
Fork outside width	mm	260-820
Fork Size	mm	107012240
Aisle width	mm	2975 (1000*1000mm Pallet)
Turning Radius	mm	1945
Driving Speed	km/h	7.5 /8.0
Lifting Speed	mm/s	150/400
Descend Speed	mm/s	350/160
Gradeability (Full load/no load)	%	8% / 15%
Driving motor capacity	kw	6.5
Lifting motor capacity	kw	8.6
Battery Voltage/Capacity	V/AH	51.2/450
Battery Weight	kg	700
Overall Weight	kg	500
Steering Type		Electronic steering
Parking Brake Type		Electromagnetic brake

FEATURES

3ton Electric Warehouse Reach Forklift 10m lifting height
Character:
1,Heavy-Duty 3,000 kg Capacity
Built for demanding warehouse operations with stable full-load performance.
2,10 Meter High-Reach Capability
The reinforced 3-stage mast enables efficient handling of high-racking systems up to 10,000 mm.
3,High-Performance 51.2V / 450Ah Lithium Battery
Provides long operating hours, fast opportunity charging, and maintenance-free performance.
4,Advanced American CURTIS Control System
Ensures precise travel, lifting, and energy management for smoother and safer operation.
5,Enhanced Stability & Operator Safety
Equipped with EPS and OPS for enhanced maneuverability and safety.
6,Optimized Narrow Aisle Design
With a 640 mm forward reach and compact design, it maximizes warehouse space.

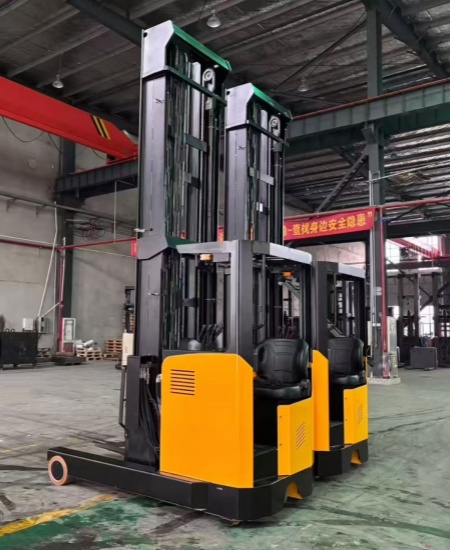

Best 3 T Electric Reach Truck for Warehouse

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
