Technical Parameters

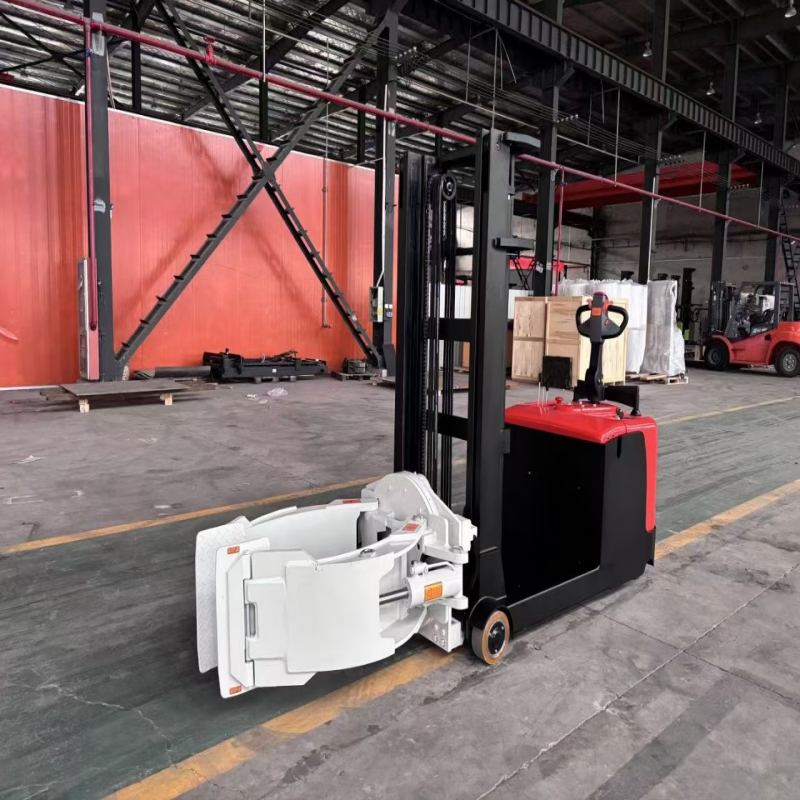

2T Electric Paper Roll Clamp Stacker Specifications
Model		CDD-20B
Driving style		Stand-up /Pedestrian
Load rating	(kg)	2000
Lifting height	mm	2000
Free lift height	mm	525
Load center distance	(mm)	500
Tire type		PU
Tire size, load-bearing side	mm	Φ210×85
Tire size,drive side	mm	φ230×75
Stabilize wheel size	mm	φ130x55
Number of wheels,front/rear(x=drive wheels)		4/1X-4
Overall length:Pedal retracted/pedal down	(mm)	311/3505
Overall width	mm	900
Vehicle ground clearance	(mm)	68
Turning radius The pedal is retracted/lowered	(mm)	1720/2112
Maximum climbing capacity,ful/no load	%	5/8
Drive Motor Power	kw	2.2(AC)
Lift motor power	kw	3
Battery,voltage/rated capacity	V/Ah	24/210
Service weight	kg	2170
Paper Reel Clamp Attachment Parameter
Load Capacity	kg	1500kg
Paper Roll Range	mm	600-1400
Equip with 360 Degree Rotator	°	360°
Clamp Plate Height	mm	600
Service weight	kg	1580

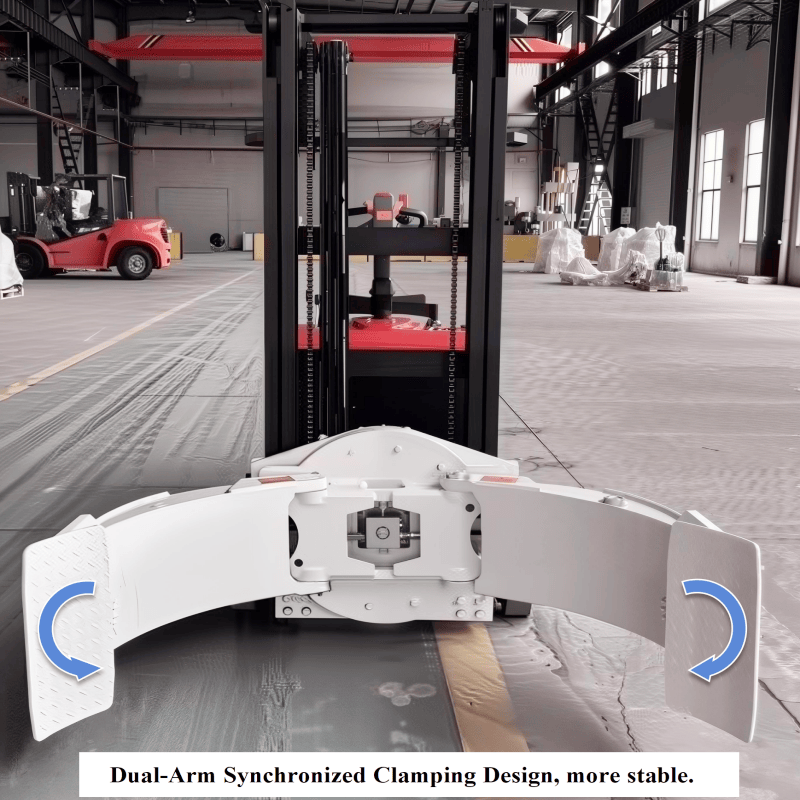

Dual-Arm Synchronized Clamping

FEATURES

Paper Roll Stacker Features and Benefits
Character:
1,Container-Ready Design
Low mast height and full free mast allow efficient operation inside 40GP and 40HC containers.
2,Strong & Stable Lifting Performance
2000kg rated capacity with reliable lifting up to 4500mm, suitable for heavy paper roll handling.
3,Flexible Paper Roll Handling
360° rotating clamp with 600–1400mm range enables precise positioning of different roll sizes.
4,High Safety & Smooth Control
Electronic steering, CURTIS controller, and automatic corner deceleration ensure safe, smooth operation.
5,Powerful Electric Drive System
AC drive motor and high-capacity 24V battery deliver strong performance with low maintenance.
6,Synchronized, Damage-Free Clamping
Dual-arm synchronized clamp provides even force distribution, protecting paper rolls from damage.

paper roll handling equipment

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
