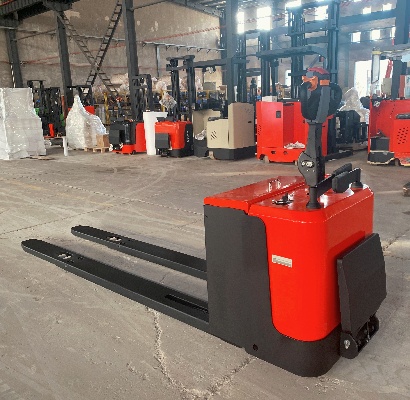

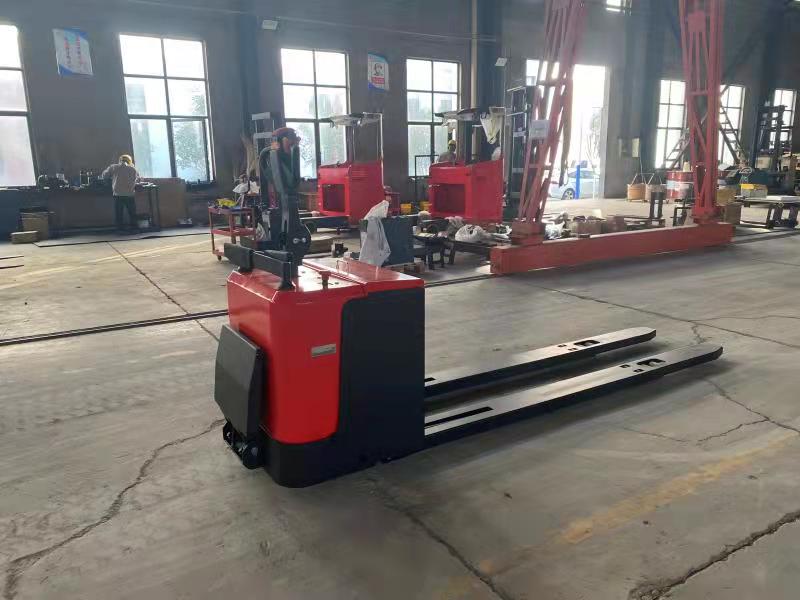

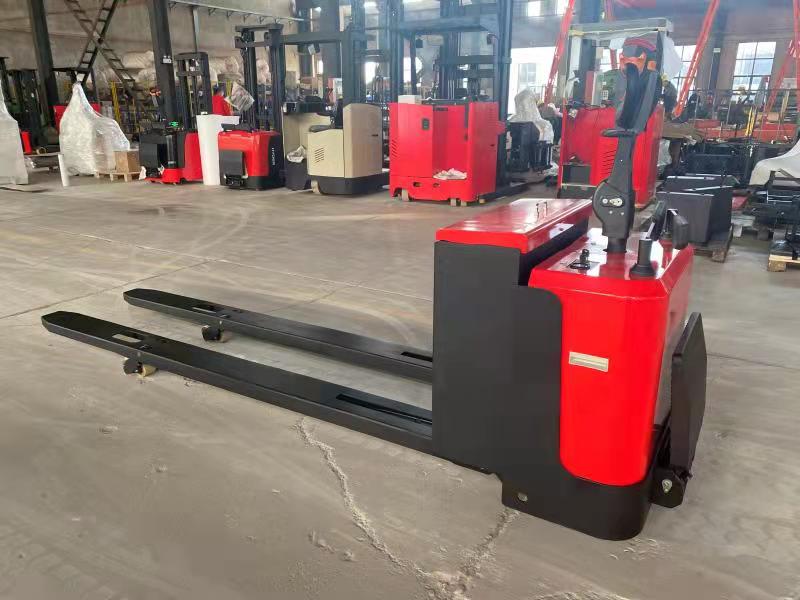

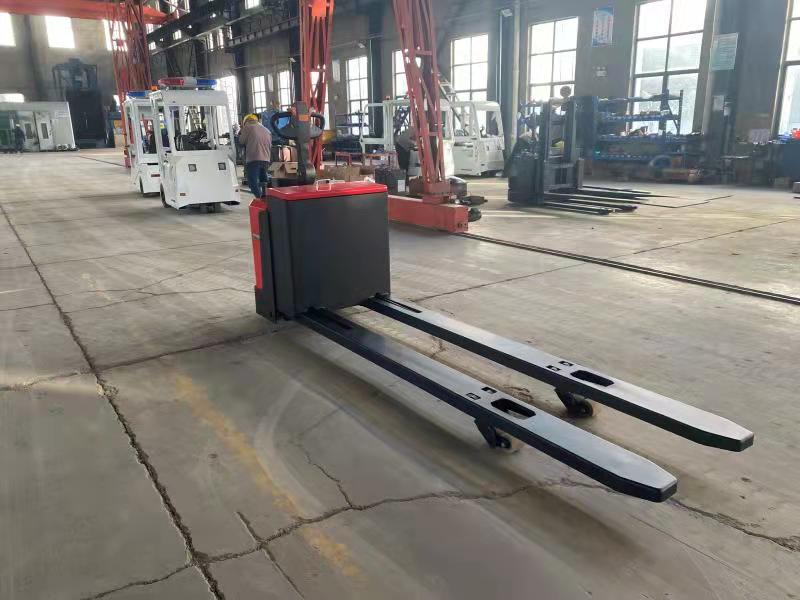

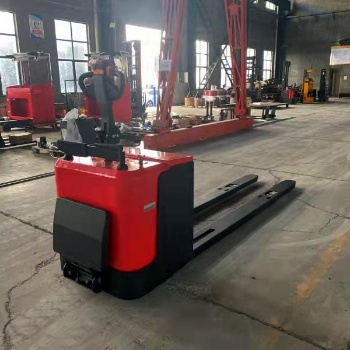

5ton end rider electric pallet truck with customized 1.8m fork length
Load Capacity5000kg
Lifting Height215mm
Turning radius2495mm
Max.Gradeability8%(no load)
Battery Capacity24v/280ah
We're here to help:Easy ways to get the answers you need.
- What capacity does a 5-ton end rider electric pallet truck have? What makes the customized Long fork length important?
- A 5-ton model electric pallet jack can carry up to 5 tons (≈10,000 lbs or ~4,500 kg) of load up to 215mm height. FLIFT’s heavy-duty pallet truck supports this capacity reliably with strong frame construction and 2.5kw high torque motors.The lengthen fork length allows this truck to handle oversized pallets, long materials, or multiple pallet loads at once. FLIFT offers this customization to improve efficiency in industries that require extended load handling.
Technical Parameters
|
5Ton-6ton electric walkie rider pallet jack specification |
|||
|
Models |
|
CBD50 |
CBD60 |
|
Type of power |
|
Electric |
|
|
Driving |
|
Walkie(Pedal) |
|
|
Rated load |
Q(kg) |
5000 |
6000 |
|
Load Center |
C(mm) |
600 |
600 |
|
Front end distance |
X(mm) |
210 |
210 |
|
Wheelbase |
Y(mm) |
1460 |
1460 |
|
Vehicle weight(including batteries) |
kg |
945 |
945 |
|
Bridge load,full load(front/back) |
kg |
3905/2040 |
4583/2407 |
|
Bridge load,no load (front/back) |
kg |
230/715 |
230/715 |
|
Tires |
|
PU |
|
|
Dimensions of drive wheels |
mm |
φ230×75 |
φ230×75 |
|
Dimensions of bearing wheels |
mm |
φ85*70 |
φ85*70 |
|
Dimensions of balance wheel |
mm |
φ130x55 |
φ130x55 |
|
Number of wheels (front/back)(x=drive wheels) |
mm |
8/4-1x |
8/4-1x |
|
Front wheel pitch |
b2(mm) |
480 |
480 |
|
Rear wheel base |
b4(mm) |
654 |
654 |
|
Elevation |
h3(mm) |
215 |
215 |
|
Height of fork off the ground(minimum) |
h5(mm) |
95 |
95 |
|
Ground height of operation handle(max/min) |
h1(mm) |
1530/1140 |
1530/1140 |
|
Total length (pedals retracted) |
L0(mm) |
1947 |
1947 |
|
Total length(pedals down) |
L1(mm) |
2344 |
2344 |
|
Distance from front end to front of fork |
L2(mm) |
747 |
747 |
|
Vehicle width |
b1(mm) |
882 |
882 |
|
Fork size |
s/e/l(mm) |
235/72(82)/1200 |
255/72(82)/1200 |
|
Outside width of forks |
b3(mm) |
715 |
715 |
|
Height of rear tail plate from ground |
m(mm) |
64 |
64 |
|
Right-angle stacking channel width,tray 1000X1200(1200 transverse)(pedals up/down) |
Ast(mm) |
2495/2890 |
2495/2890 |
|
Right-angle stacking channel width,tray 800X1200(1200 vertical)(pedals up/down) |
Wa(mm) |
1755/2150 |
1755/2150 |
|
Turn radius(pedals up/down) |
km/h |
4.0/5.0 |
4.0/5.0 |
|
Speed,full/empty |
mm/s |
25/30 |
25/30 |
|
Lifting speed,full/no load |
mm/s |
29/16 |
29/16 |
|
Rate of descent,full/no load |
% |
3.5/8 |
3/8 |
|
Maximum climbing capacity,full/no load |
|
Electromagnetic brake |
|
|
Braking mode |
kw |
2.5 |
2.5 |
|
Drive Motor Power |
kw |
2.2 |
2.2 |
|
Lifting motor power |
V/Ah |
24/280(Lead-Acid) |
24/280(Lead-Acid) |
|
Battery,voltage/rated capacity |
kg |
245 |
245 |
|
Controller brand |
|
America Curtis |
|
|
Vehicle noise |
dB(A) |
≤70 |
≤70 |
FEATURES
5ton electric pallet truck
Character:
1.Integral hydraulic lifting pump and double cylinders.
2.24v/280ah high capacity battery and optional lithium battery,and optional side-pull battery structure.
3.USA Curtis brand communication control system.
4.The whole vehicle seals adopt Japanese NOK.
5.External Charger Design,and Vertical AC drive motor/vertical gearbox.
6.Electric overheat protection device.
7.Electronic steering/electromagnetic brakes.
8.Cylinder safety shut-off valve design.
9.Emergency reverse anti-collision device,Automatic deceleration in corners.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
Inquiry
Please fill in your procurement needs and contact information
Related products
-

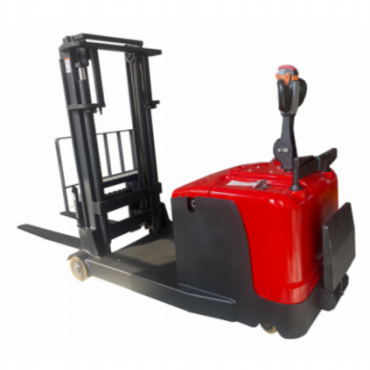

- Walkie Counterbalanced Stacker 1500–2000kg Capacity Compact Design
- Max.Gradeability:8% (no load)
- Lifting Height:2000mm-4500mm
- Rated Capacity:1500kg-2000KG
-

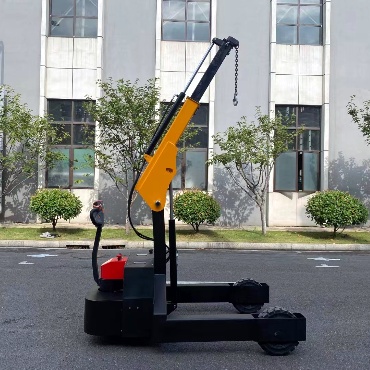

- 1.5ton-2ton all terrain electric pallet truck with crane jib
- Load Capacity:1500-2000kg
- Lifting Height:300mm
- Turning radius:1550mm
-
- 2ton electric rough terrain pallet stacker
- Max.Gradeability:10%
- Lifting Height:3000mm-4000mm
- Battery Capacity:24V/80AH
-
.png)
- Man up VNA Forklift 3-way pallet stacker
- Driving Type:Man-Mounted/Standed/Seated
- Rated Capacity:1600kg
- Load Center:600mm
-
- Semi-electric Pallet Stacker
- Brand:FLIFT
- Lifting Height:1500mm-3000mm
- Power Type:semi electric hydraulic stacker
-
- Multi-Directional Sideloader Forklift
- Load Capacity:4000kg
- Model:TFC40
- Lift Height:6000mm(3 stage mast)
-
- 1.5 Ton Electric Walkie Pallet Truck – Compact Power for Efficient Material Handling
- Model:CBD15
- Turning radius(outside):1410mm
- Service weight:165kg
-

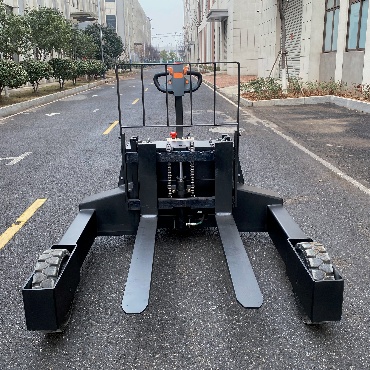

- 2.5ton all terrain electric pallet jack
- Load Capacity:2500kg
- Lifting Height:300mm
- Turning radius:1600mm
-
- 1200kg walking type electric pallet stacker
- Power Type:Storage Battery
- Rated Capacity:1200kg
- Load Center:400mm
-

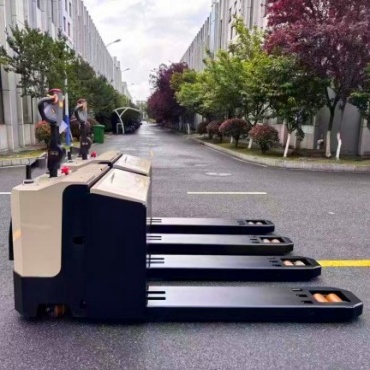

- 10ton-15ton heavy duty electric pallet truck
