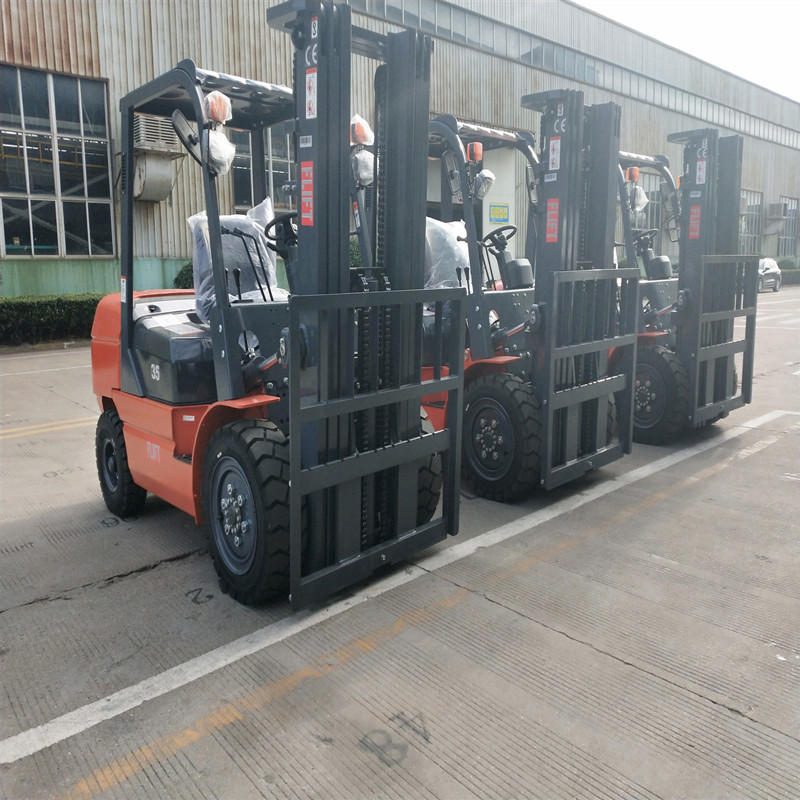

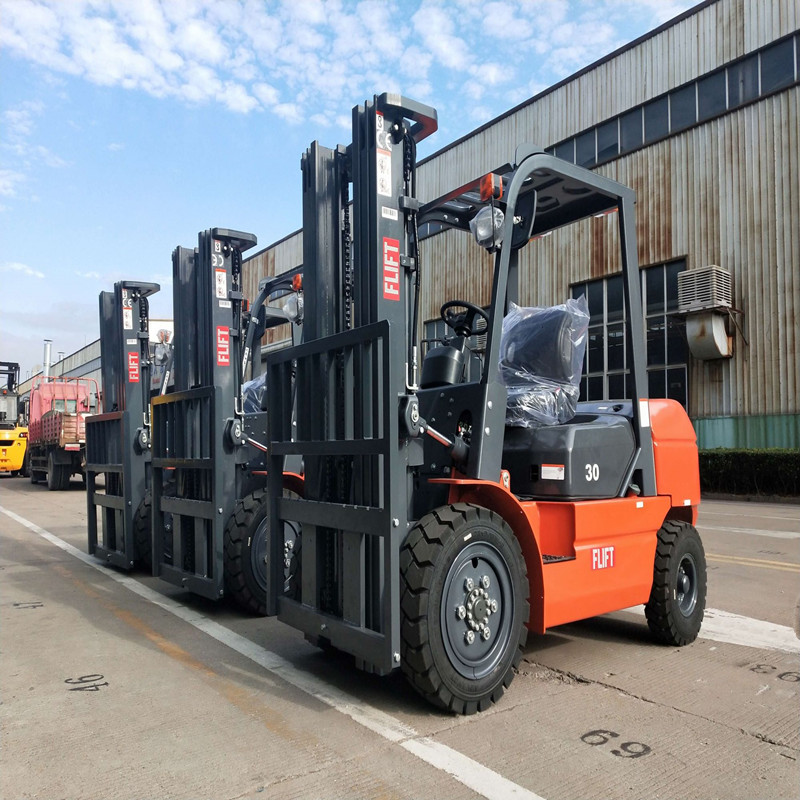

3.5 Ton Diesel Forklift

ModelFD25,FD30,FD35

Capacity2000kg,2500kg, 3000kg,3500kg

Load center500mm

Lift height3000mm

Fork size(LxWxH)1070*120*45mm,1070*120*40mm, 1070*125*45mm,1070*125*50mm

We're here to help:Easy ways to get the answers you need.

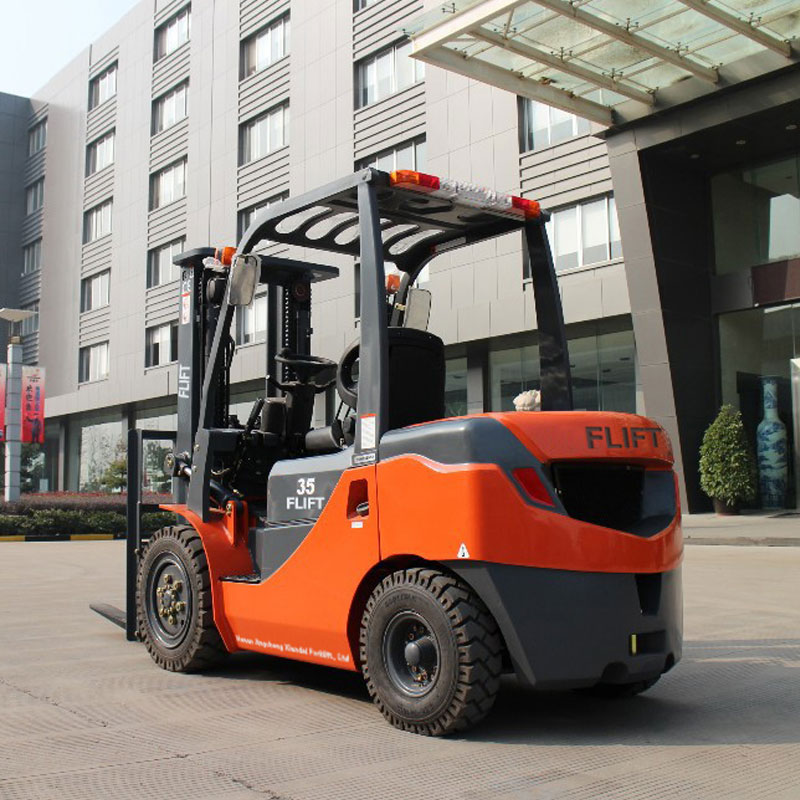

3.5 Ton Diesel Forklift
By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

Technical Parameters

Model   FD20 FD25 FD30 FD35 FD35
Capacity kg 2000 2500 3000 3500 3500
Load center mm 500 500 500 500 500
Lift height mm 3000 3000 3000 3000 3000
Fork size(LxWxH) mm 1070*120*45 1070*120*40 1070*125*45 1070*125*50 1070*125*50
Mast tilt angle(F/R) Deg 6°/12° 6°/12° 6°/12° 6°/12° 6°/12°
Length to face of fork mm 2600 2600 2730 2865 2865
Overall width mm 1150 1150 1225 1308 1308
Mast lowered height mm 1995 1995 2115 2175 2175
Mast extended height (with backrest) mm 4030 4030 4150 4160 4160
Overhead guard height mm 2070 2070 2090 2170 2170
Turning radius mm 2310 2310 2520 2600 2600
Min. right angle aisle width mm 2380 2380 2490 2530 2530
Front overhang mm 470 470 475 480 480
Ground clearance mm 120 120 135 135 135
Wheelbase mm 1600 1600 1700 1700 1700
Travel (no load) km/h 19 19 19 19 19
Lifting (full load) mm/s 530 530 440 420 420
Gradeability(laden) % 20 20 20 20 20
Service weight kg 3590 3790 4390 5500 5500
Front tire   7.00-12-12PR 7.00-12-12PR 28x9-15-12PR 28x9-15-12PR 28x9-15-12PR
Rear tire   6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Battery (voltage/capacity) v/ah (12V/80Ah) (12V/80Ah) (12V/80Ah) (12V/80Ah) (12V/80Ah)
Engine model   C490BPG-6A C490BPG-236 C490BPG-236 A495BPG-13 4JG2PE-01
Engine rated output/r.p.m kw 36.8/2650 40/2650 40/2650 42/2650 46/2450
Engine rated torque/r.p.m. n.m 148/1800-1900 160/1800-2000 160/1800-2000 174/1800-2000 186.3/1600-1800
Engine No.of Cylinder   4 4 4 4 4
Bore x stroke mm 90x100 95x105 90x105 95x105 95.4x107
Displacement cc 2540 2670 2670 2670 3059
Fuel tank capacity L 60 60 60 60 60

FEATURES

Small ton internal combustion forklift
Character:
1,Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
The powerful engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes  handling process more efficient and safe.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
Supper low and non-slip make operating convenient and safe.

Applications





Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
