China piggyback forklift manufacturer

Technical Parameters

Model		CQD20-30
Drive type		Electric
Operation type		Ride-on
Rated capacity	(kg)	2000
Load center	(mm)	600
Reach distance	L3(mm)	820
Front overhang	L2(mm)	555
Wheelbase	L1(mm)	1930
Service weight (incl. battery)	kg	3100
Front tire size		18×7×12.125
Rear tire size		18×7×12.125
Number of wheels, front/rear (x=drive wheels)		2/1x
Mast tilt angle	α/β（°）	8/10
Lowered mast height	H1（mm）	2340
Max. lifting height (incl. load backrest)	H2（mm）	4120
Overhead guard height	H3（mm）	2420
Max. fork height	H （mm）	3040
Overall length	L （mm）	2850
Overall width	W(mm)	2090
Distance between support legs (inner)	W1(mm)	1500
Fork dimensions	mm	50×125×1220
Ground clearance	H4 （mm）	210
Right angle stacking aisle width (pallet 1200x1200)	Ast（mm）	3660
Turning radius	Wa（mm）	2390
Travel speed, laden/unladen	km/h	10/12
Lifting speed, laden/unladen	mm/s	120/150
Lowering speed, laden/unladen	mm/s	240/200
Max. gradeability, laden/unladen (S2-5 min)	%	10/20
Braking system		Electromagnetic / hydraulic braking
Drive motor power (S2-60 min)	kw	6.5
Lifting motor power	kw	8.6
Lithium battery, voltage / rated capacity	V/Ah	51.2V/400
Battery weight	kg	170
Steering type		Electric Steering
Battery replacement method		Lifted by crane

FEATURES

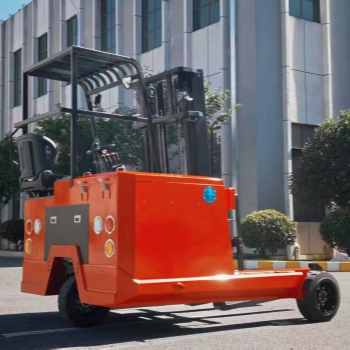

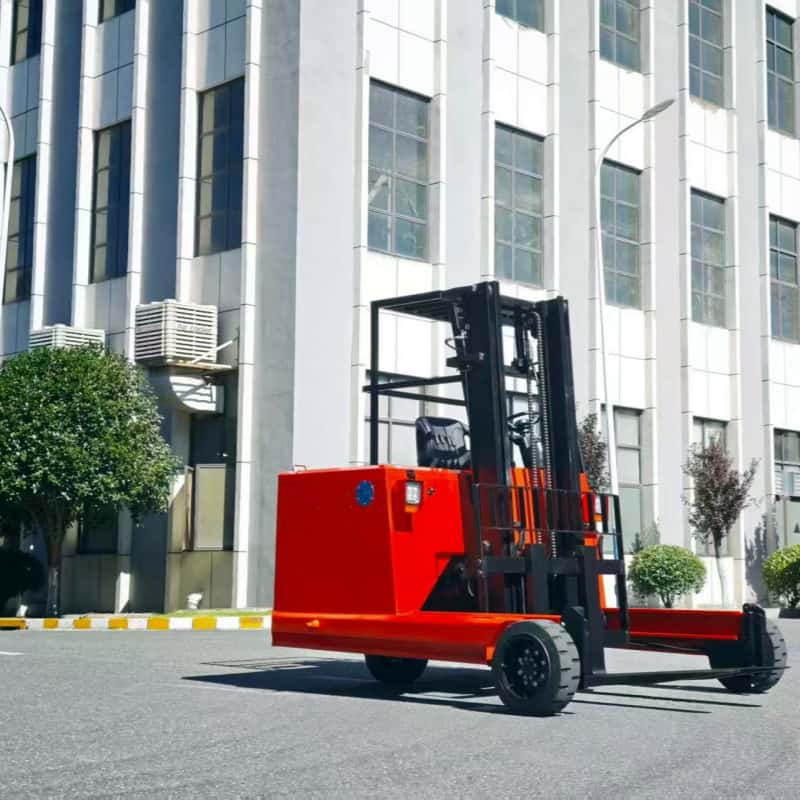

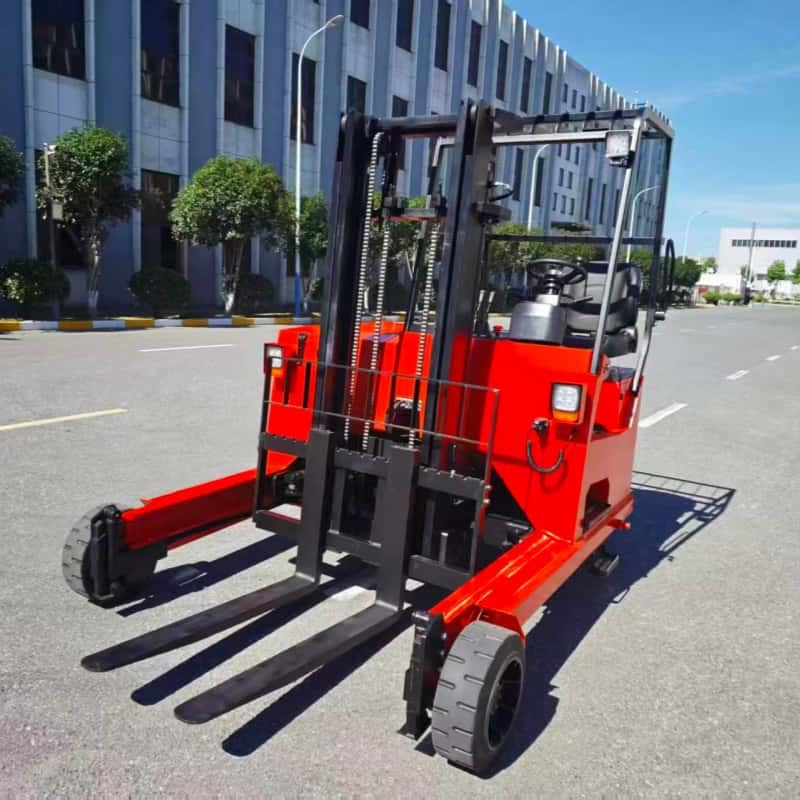

2T Truck Mounted Forklift|Electric Piggyback Forklift
Character:
1,Efficient Electric Power System
Lithium battery and CURTIS AC control deliver reliable performance..
2,Easy and Comfortable Operation
Electronic power steering and stepless speed control ensure smooth driving.
3,Advanced Safety Protection
OPS, anti-collision, and emergency braking improve operator safety.
4,Enhanced Driving Stability
Automatic turning deceleration enhances vehicle stability.
5,Reliable Braking & Hydraulic Safety
Electromagnetic and regenerative braking provide safe, smooth stopping.
6,Low Maintenance
Brushless AC motors and solid tires reduce maintenance needs.

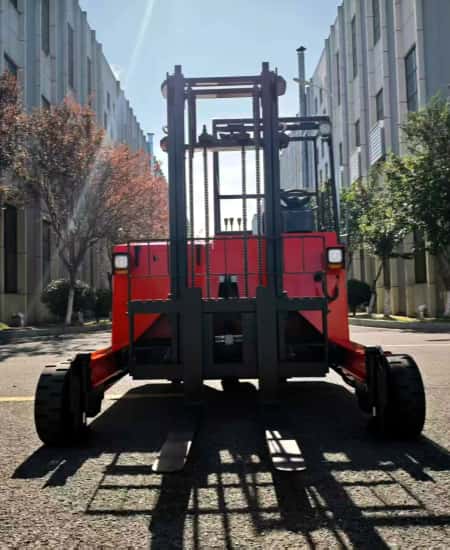

all terrain truck-mounted forklift

Applications

all terrain truck-mounted forklift forklift mounted on back of truck three wheel truck-mounted forklift

After-sales Service

After sale service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
