FLIFT Heavy Duty Electric Pallet Jack for tough material handling

Technical Parameters

Heavy duty electric pallet jack specifications 10ton-15ton
Models		CBD100	CBD150
Type of power		Electric	Electric
Driving		Walkie(Pedal)	Walkie
Rated load	Q(kg)	10000	15000
Load Center	C(mm)	600	600
Front end distance	X(mm)	215	335
Wheelbase	Y(mm)	1600	1460
Self-weight	kg	1880	2100
Bridge load,full load (front/back)	kg	7950/3930	14136/2964
Bridge load,no load(front/back)	kg	450/1430	796/1304
Tires		PU	PU
Dimensions of drive wheels	mm	φ343x135	φ400x140
Dimensions of bearing wheels	mm	φ110*175	φ260*135
Dimensions of balance wheel	mm	φ150x50	φ150×50
Number of wheels(front/back)(x=drive wheels)	mm	4/4-1x	4/4-1x
Front wheel pitch	b2(mm)	460	580
Rear wheel base	b4(mm)	840	880
Elevation	h3(mm)	235	\
Height of fork off the ground(minimum)	h5(mm)	115	320
Ground height of operation handle(max/min)	h1(mm)	1580/1190	1530/1120
Total length(pedals retracted)	L0(mm)	2261	\
Total length (pedals down)	L1(mm)	2658	2116
Distance from front end to front of fork	L2(mm)	1061	1016
Vehicle width	b1(mm)	1100	1100
Fork size	s/e/l(mm)	340/89(96)/1200	1100/-/1100
Outside width of forks	b3(mm)	800	\
Height of rear tail plate from ground	m(mm)	65	65
Right-angle stacking channel width,tray 1200X1200(pedals up/down)	Ast(mm)	2900/3295	2751
Turn radius(pedals up/down)	Wa(mm)	2060/2455	1810
Speed,full load/no load	km/h	4/5.5	4/5.5
Speed up,full load/no load	mm/s	25/30	\
Rate of descent,full load/no load	mm/s	29/16	\
Maximum climbing capacity,full load/no load	%	3/10	2/8
Braking mode		Electromagnetic brake	Electromagnetic brake
Drive motor power	kw	6.5	10
Increase motor power	kw	3	\
Battery voltage/capacity	V/Ah	48/300(Lead-Acid Battery)	48/400 (Lead-Acid Battery)
Weight of battery	kg	480	650
Control mode		Mosfet control	Mosfet control
Vehicle Noise	dB(A)	≤70	≤70

FEATURES

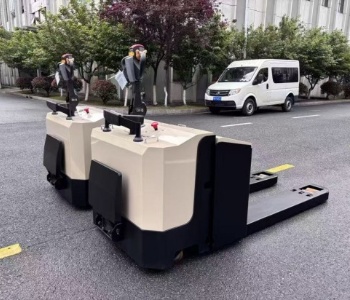

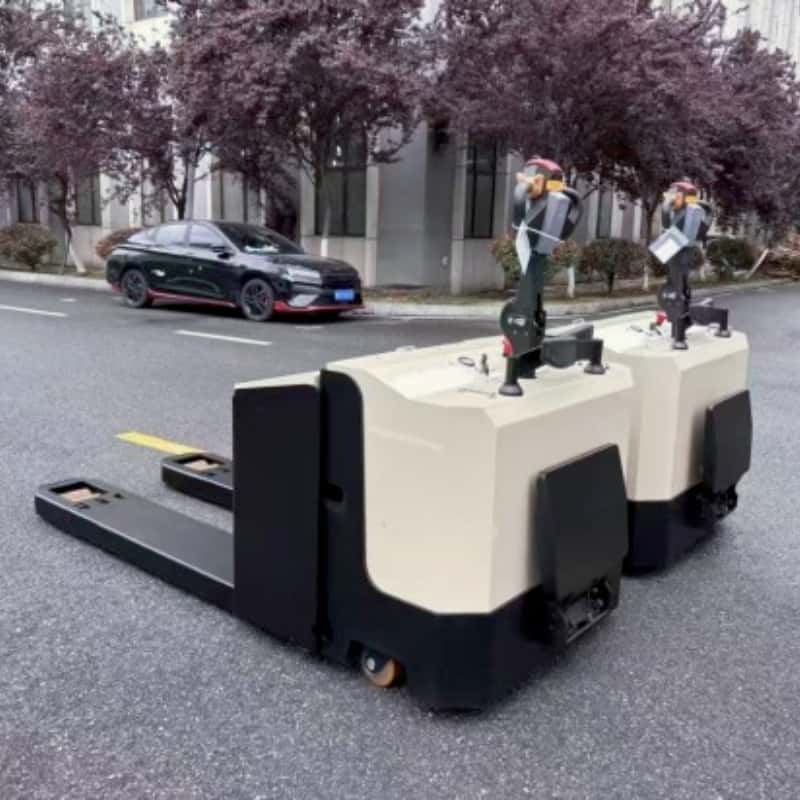

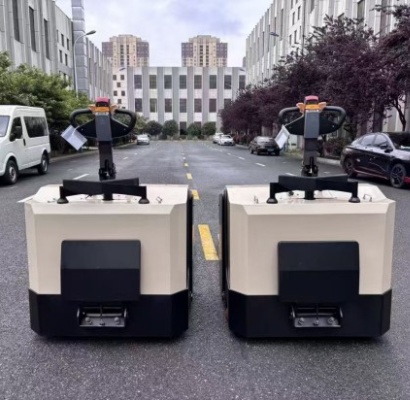

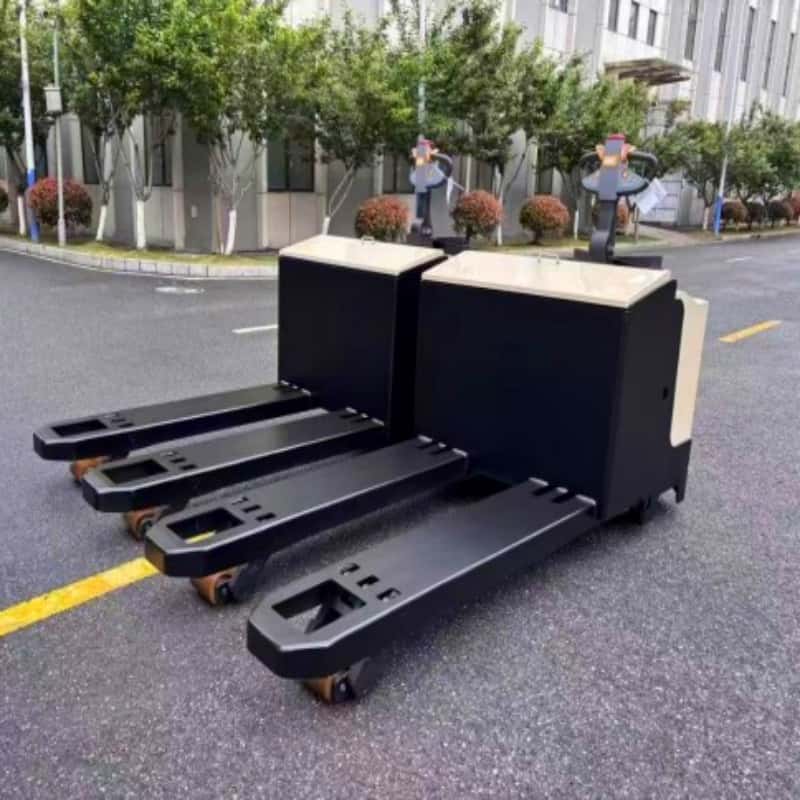

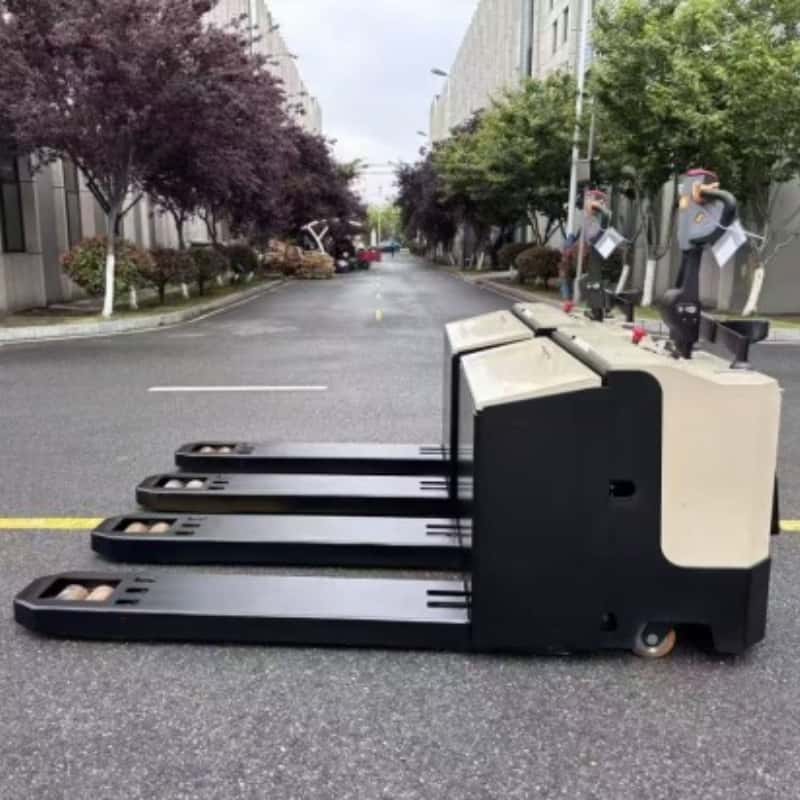

10ton-15ton heavy duty Walkie Pallet Jack
Character:
1.Integral hydraulic lifting pump and double cylinders.
2.48v high capacity battery and optional lithium battery,and optional side-pull battery structure.
3.USA Curtis brand communication control system.
4.The whole vehicle seals adopt Japanese NOK.
5.External Charger Design,and Vertical AC drive motor/vertical gearbox.
6.Electric overheat protection device.
7.Electronic steering/electromagnetic brakes.
8.Cylinder safety shut-off valve design.
9.Emergency reverse anti-collision device,Automatic deceleration in corners.

electric pallet trucks for sale

Applications

pedestrian pallet truck electric pedestrian pallet truck electric walkie pallet jack

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
