FLIFT Off-Road Electric Pallet Truck | Heavy-Duty Outdoor All-Terrain Powered Pallet Jack

Technical Parameters

2.5ton All Terrain Electric Pallet Jack Specification
FEATURE	1.1	Origin		China
	1.2	Brand		FLIFT
	1.3	Telescopic spreader		3 stage
	1.4	Telescopic type		Hydraulic
	1.5	Operation Type		Walking Driving
	1.6	Load Capacity	kg	2000
	1.7	Lift height	mm	300
	1.8	Telescopic spreader lifting height	mm	3000
	1.9	Wheel Base	mm	1343
DIMENSION	2.1	Overal Dimension	mm	1950×1590x1270
	2.2	Fork Dimension(L×W×H)	mm	1070×100×35
	2.3	Fork Width Min./Max.	mm	220/700
	2.4	Turning Radius	mm	1550
	2.5	Stacking Channel Width 1000mm*1200mm Pallet size	mm	2570
WEIGHT	3.1	Self weight	kg	700
WEIGHT	3.2	Battery Weight	kg	64
WHEEL	4.1	Wheel Type		Solid Rubber
	4.2	Driving Wheel Sizes	mm	250×80
	4.4	Loading wheel sizes	mm	85×70
	4.5	Min. Ground Clearance	mm	127
DRI＆CONTROL	5.1	Driving Motor	kw(60min)	2.0
	5.2	Liifting Motor	kw(60min)	2.2
	5.3	Battery dimension	mm	271×174×213
	5.4	Battery Voltage/Capacity	V/Ah	24/100
	5.5	Controller		American Curtis
	5.6	Working Pressure	mpa	14
PERFORMANCE	6.1	Driving Speed	km/h	3.0/4.0
	6.2	Lifting Speed	mm/s	45/55
	6.3	Lowering Speed	mm/s	40/55
	6.4	Max.Climbing Ability	%	6/10 (Fullload/no load)
	6.5	Service Braking		electromagnetic induction
	6.6	Parking Braking		electromagnetic induction
OTHER	7.1	Driving type		Electric
	7.2	Steering Type		Manual
	7.3	Noise Level		63
	7.4	Waterproof Grade		IP54

FEATURES

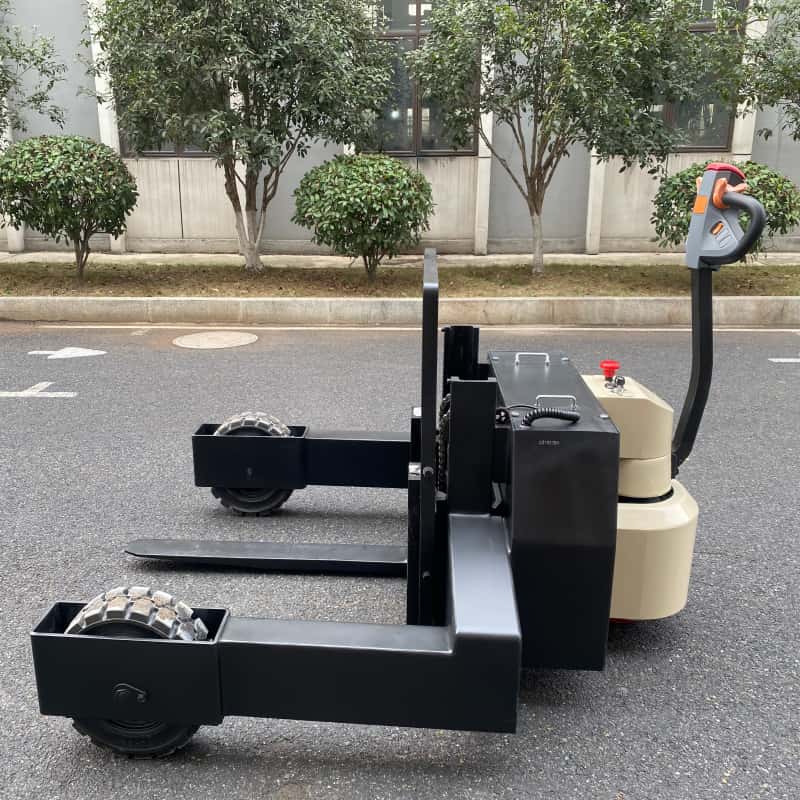

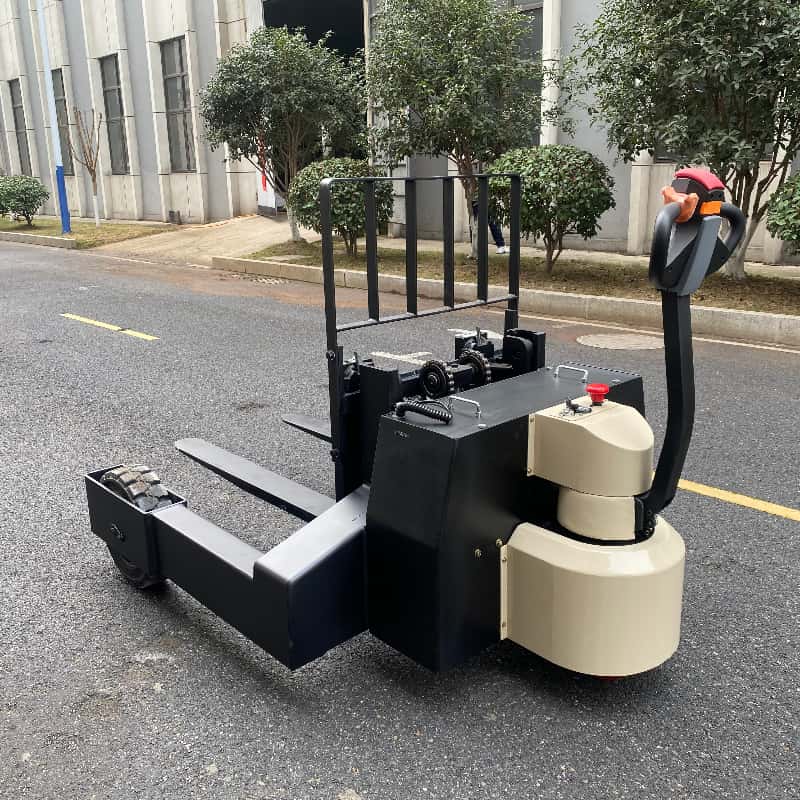

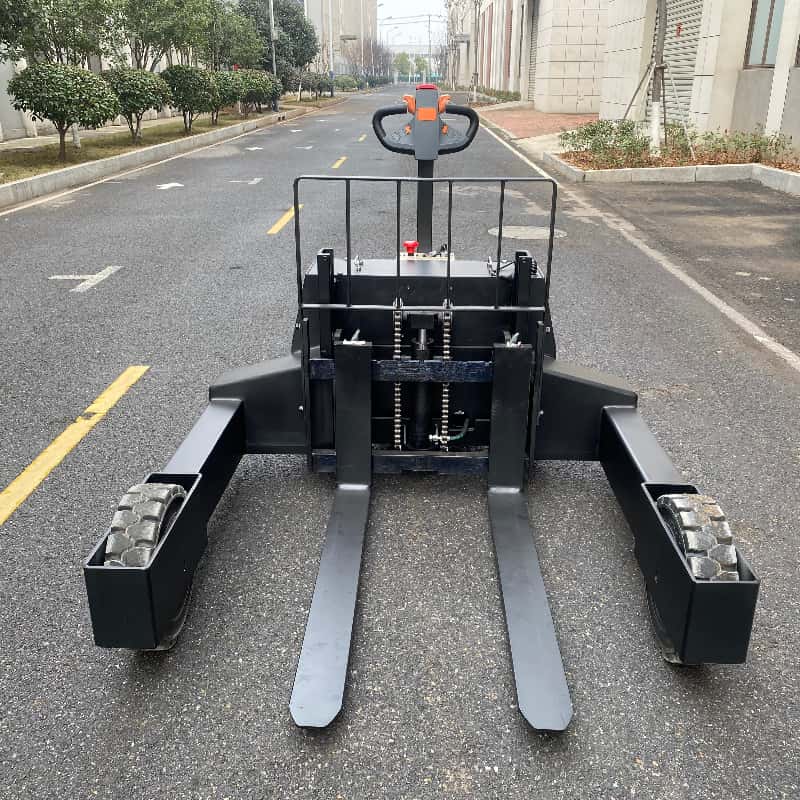

Heavy Duty Off-road Electric Pallet Truck
Character:
1.Integrated low noise hydraulic lifting pump.
2.Smaller turning radius of 1550mm for easy maneuvering.
3.USA Curtis brand communication control system.
4.Multi-function integrated handle.
5.High abrasion resistant solid rubber tires.
6.External Charger Design,and AC drive motor, No carbon brush, motor free-maintain.
7.Stepless speed regulation,safety and mute.
8.Mechanical steering, more portable.
9.Emergency reverse anti-collision and emergency brake device.

electric all terrain pallet jack

Applications

outdoor pallet jack outdoor electric pallet truck electric pallet truck rough terrain

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
