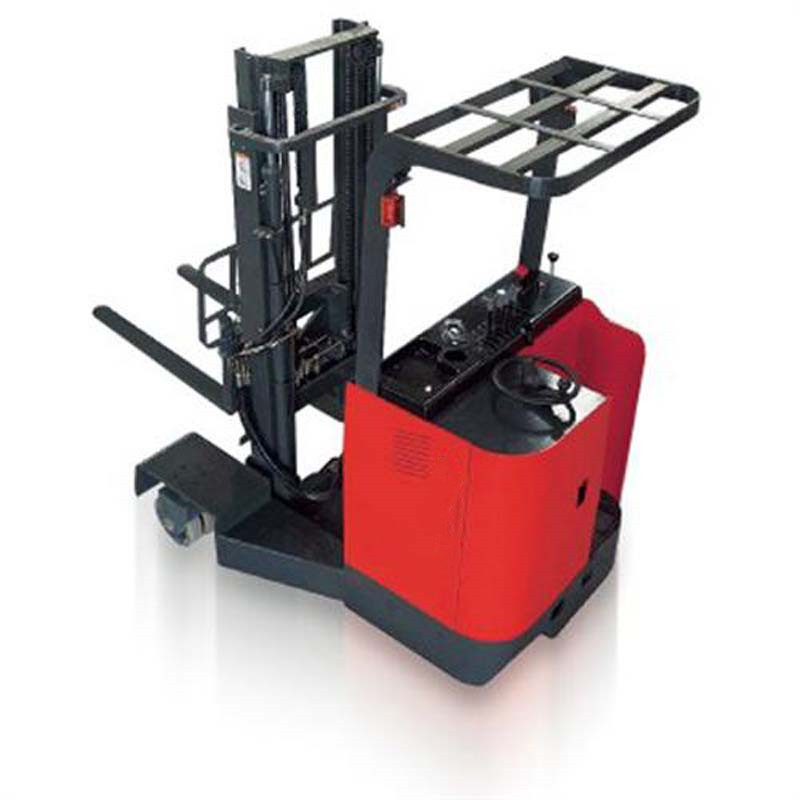

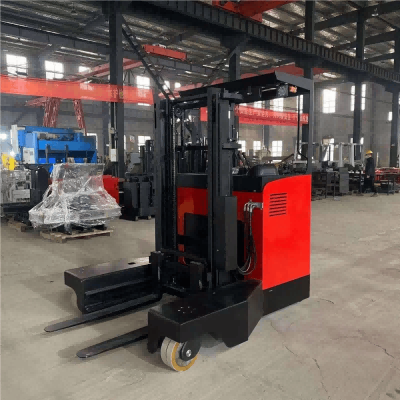

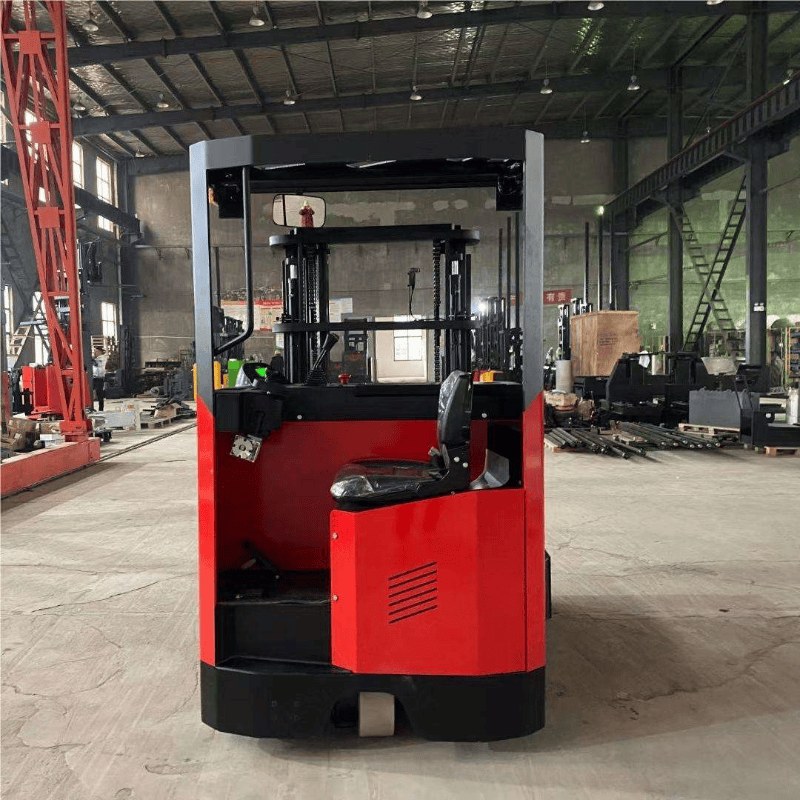

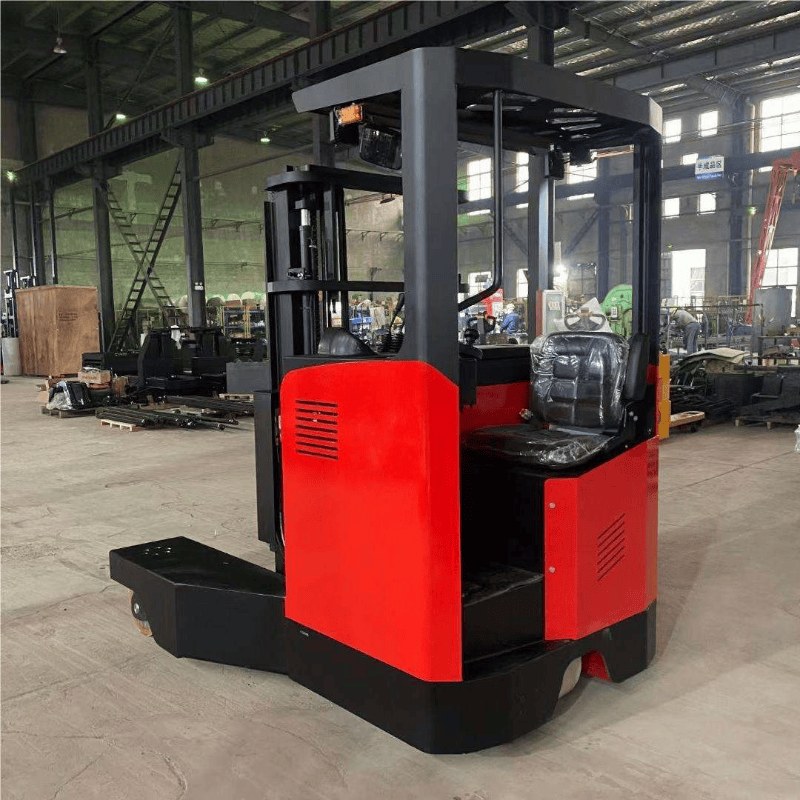

4 direction reach truck
Controller brand America Curtis
Load Capacity1500KG-2500KG
Battery Capacity48v/300ah
Mast Forward Distance570/630
Lifting Height3000mm-7200mm
We're here to help:Easy ways to get the answers you need.
- How high can a 4-direction reach truck lift?
- They typically lift between 6 meters to 12 meters (20–40 ft), making them suitable for high-rack storage systems.What is the typical load capacity of a 4-direction reach truck?Most models have a capacity ranging from 1500kg to 2500kg, depending on the manufacturer and configuration.
Technical Parameters
Description Model No. |
TFB15-30
|
TFB15-60
|
Rated Capacity (KG) |
1500
|
1500
|
Operate Type |
Stand-on
|
Stand-on
|
Max. Lifting Height (MM) |
3000
|
6000
|
Max Travel Speed km/h-laden/unladen |
7.5/8.5
|
7.5/8.5
|
Load center MM |
500
|
500
|
Fork Dimensions- L/W/T---mm |
1070*100*35
|
1070*100*35
|
Lifting Speed (MM/S)-laden/unladen |
117/243
|
117/243
|
Side-travel Speed -km/h |
5
|
5
|
Overall Length (MM) |
2333
|
2393
|
Overall Width (MM) |
1514
|
1682
|
Height-Overhead guard--mm |
2320
|
2320
|
Height---Mast Lowered(MM) |
2080
|
2679
|
Height-Mast Extended w/Load-Backrest -mm |
3885
|
6885
|
Height--Free Lift--mm |
100
|
2090
|
Tilt Angle----Upward/Downward--deg. |
3/5
|
3/5
|
Fork Spread Range(MM) |
220-662
|
247-780
|
Reach Stroke |
630
|
570
|
Min Ground Clearance--mm |
80
|
80
|
Wheel Type |
Polyurethane Solid Tyre
|
|
Driving Wheel (MM) |
Φ343×108
|
Φ343×108
|
Balance Wheel (MM) |
Φ180×76
|
Φ180×76
|
Front Wheel (MM) |
Φ267×114
|
Φ267×114
|
Battery V/AH- |
48V /300 AH
|
48V/300 AH
|
Service Brake |
Electromagnetic
|
|
Parking Brake |
Electromagnetic
|
|
Charger-Intelligent |
48V /40 A
|
48 V/40 A
|
Driving Motor (KW) |
5.5 (AC)
|
5.5(AC)
|
Lifting Motor (KW) |
6.3
|
6.3
|
FEATURES
AC Driving system, hydraulic steering;
Maximised Storage Capacities
Reduced handling times
Reduced costs
Less damage to product or property
Multi-Directional Movement;
Rated load capacity: 2500kg;
Max lift height: 7200mm.
Safer Long Load Handling,A 4-direction reach truck keeps loads stable and aligned, ensuring safer operation.
Space Optimization in Narrow Aisles.
Efficient handling of long and oversized loads.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
