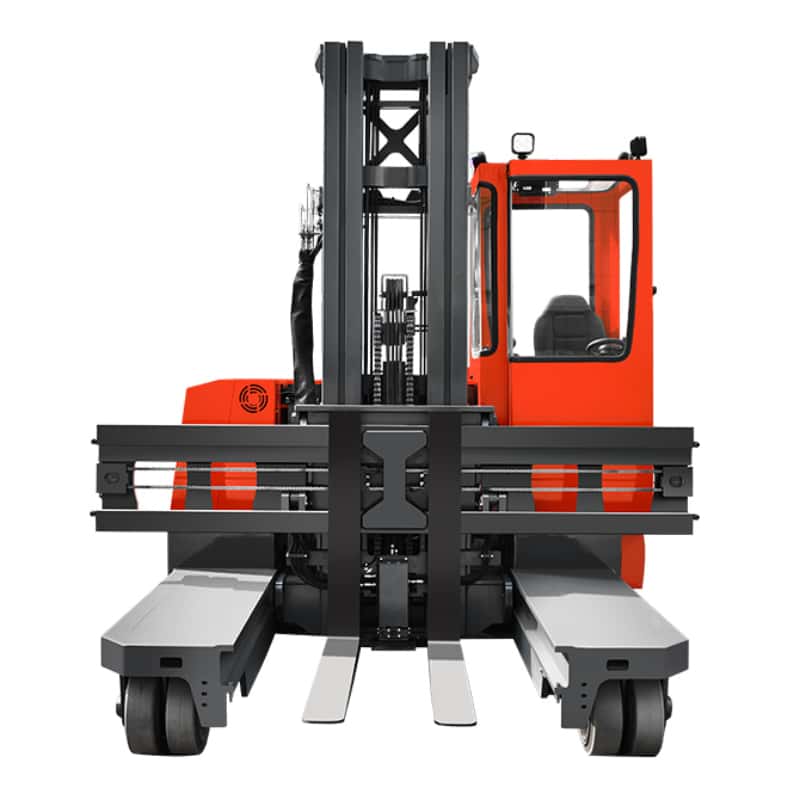

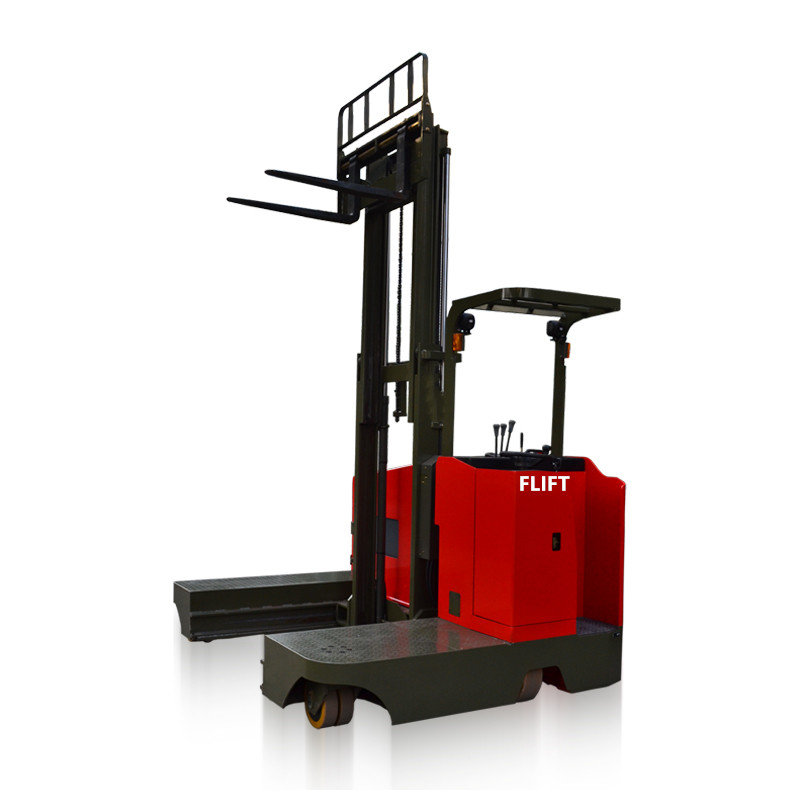

Side loading forklift truck
BrandFLIFT
ModelTD Series
Typeelectric side loading forklift truck
CategoriesNarrow Aisle Forklift
We're here to help:Easy ways to get the answers you need.
- Electric side loading forklift truck

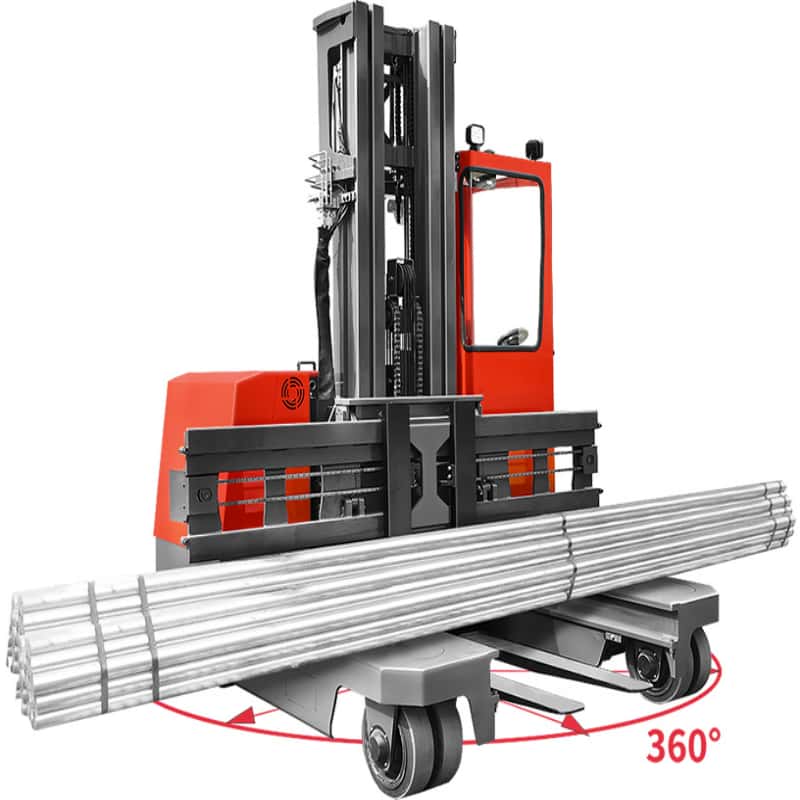

- 2 ton electric side loading reach forklift truck for steel tube
Technical Parameters
| Description Model No. |
TD15-30
|
TD25-30
|
| Rated Capacity (KG) |
1500
|
2500
|
| Operate Type |
Stand-on
|
Stand-on
|
| Max. Lifting Height (MM) |
3000
|
3000
|
| Min. Turning Radius (MM) |
2422
|
2572
|
| Min. Stacking Aisle-- mm (1000*1000 Pallet) |
2622
|
2772
|
| Max Travel Speed km/h -laden/unladen |
6.0/7.0
|
6.0/7.0
|
| Load center MM |
500
|
500
|
| Fork Dimensions -L/W/T---mm |
850*100*35
|
920*100*45
|
| Lifting Speed (MM/S)-laden/unladen |
120/270
|
120/270
|
| Overall Length (MM) |
2450
|
2580
|
| Overall Width (MM) |
1830
|
2000
|
| Height-Overhead guard--mm |
2250
|
2330
|
| Height---Mast Lowered (MM) |
2104
|
2094
|
| Height-Mast Extended w/ Load-Backrest -mm |
3885
|
3875
|
| Height--Free Lift --mm |
100
|
100
|
| Outrigger Height ---mm |
415
|
415
|
| Tilt Angle---- Upward/Downward--deg. |
3/5
|
3/5
|
| Fork Spread Range (MM) |
247-973
|
247-1072
|
| Reach Stroke |
1050
|
1065
|
| Min Ground Clearance--mm |
84
|
88
|
| Wheel Type |
Polyurethane Solid Tyre
|
|
| Driving Wheel (MM) |
Φ343×108
|
Φ343×120
|
| Balance Wheel (MM) |
Φ180×76
|
Φ204×80
|
| Front Wheel (MM) |
Φ267×114
|
Φ267×114
|
| Swivel Caster Wheel---mm |
Φ267×76
|
Φ267×76
|
| Battery V/AH-Domestic BRAND |
48V /300 AH
|
48V/400 AH
|
| Service Brake |
Electromagnetic
|
|
| Parking Brake |
Electromagnetic
|
|
| Charger-Intelligent |
48V /40 A
|
48 V/50 A
|
| Driving Motor (KW) |
5.5 (AC)
|
5.5(AC)
|
| Lifting Motor (KW) |
6.3
|
7.5
|
FEATURES
TD Series side loading forklift truck, rated load capacity: 2500kg, lift hieght: 7200mm, used for long material transportation;
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintanin the battery;
5. Use Vertical drive cell to Increase the working life;

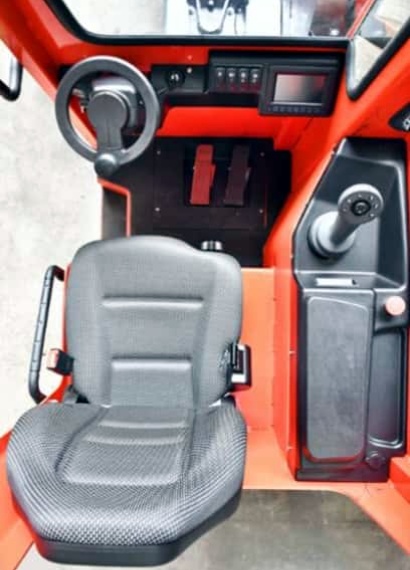

6. Ergonomics design and shock absorption configuration, with more comfortable operation;
7. Buffering design for lift cylinder, to imporve the function of mast in lifting and downing,to ensure the safe for products;
8. Electromagnetism braking with Lose-electric type have reliable braking result, it's can easy to make the parking brake safely;
9. Battery with side-pulling function, easy to change and maintenance.
Applications
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
