Heavy Duty 2000kg Powered Pallet Truck | Efficient Handling with PU Wheels

Technical Parameters

FLIFT 2ton full electric pallet truck specification
FEATURE	1.1	Origin		China
	1.2	Brand		FLIFT
	1.3	Model		CTXZ-20
	1.4	Power Type		Lead Battery
	1.5	Operation Type		Standing-driving
	1.6	Rated Capacity	kg	2000
	1.7	Load Center	mm	500
	1.8	Lifting Height	mm	200
DIMENSION	2.1	Overall Dimension(L/W/H)	mm	1750×720×1280
	2.2	Fork Sizes	mm	1150×140×50
	2.3	Fork Width Min./Max.	mm	550/688
	2.4	Min. Ground Clearance	mm	85
	2.5	Turning Radius	mm	1580
	2.6	Min.Right Angle Channel Width	mm	2330
WEIGHT	3.1	Self-weight(with battery)	kg	320
WEIGHT	3.2	Battery Weight	kg	20
WHEEL	4.1	Wheel Type (driving/turning)		Solid PU
	4.2	Driving Wheel Sizes	mm	252×88
	4.3	Loading Wheel Sizes	mm	80×70
DRIVING ＆ CONTROL	5.1	Driving Motor	kw(60min)	0.8
	5.2	Lifting Motor	kw(60min)	0.8
	5.3	Battery Dimension	mm	271×174×213
	5.4	Battery Voltage/Capacity	V/ah	2x12/80
	5.5	Controller		DC
	5.6	Working Pressure	mpa	14
PERFORMANCE	6.1	Travel speed(laden/unladen)	km/h	4.5/5
	6.2	Lifting speed(laden/unladen)	mm/s	30/34
	6.3	Max Climbing Ability	%	5
	6.4	Braking		electromagnetic induction
OTHER	7.1	Driving Type		Electric
	7.2	Steering System		Manual
	7.3	Noise Level		63
	7.4	Waterproof Grade		IPX4

FEATURES

1,This product adopts the well-known hydraulic pump station in the industry, with low noise, low power consumption and low carbon environmental pollution.
2,The wiring plug of the whole car is sealed and waterproof so that the product is safe and reliable and can be used at ease.
3,Whether loading or unloading a trailer or moving loads around a warehouse the FLIFT range of electric pallet trucks are designed to make the operator's job as easy and comfortable as possible to ensure that the warehouse is as productive as possible.

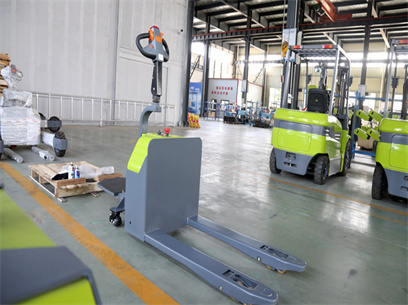

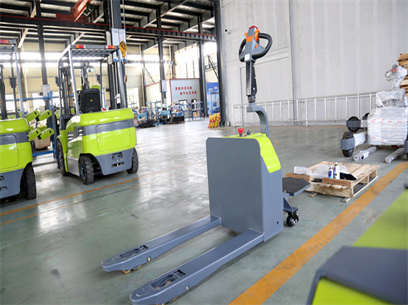

PRODUCT DISPLAY

After-sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
