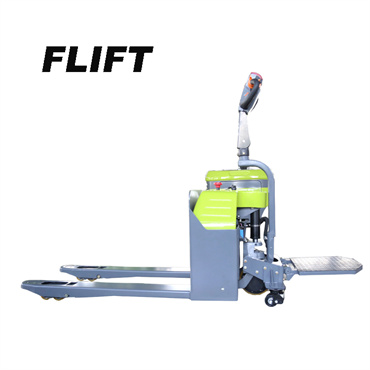

CTXZ20 2t Electric Pallet Truck
Power TypeLead Battery
Lifting Height200mm
Load Centre500mm
Service Weight320kg
Fork Length1150mm
We're here to help:Easy ways to get the answers you need.
- 2t Electric Pallet Truck
- WFactory Direct Supply Price Lifting Height 200mm Electric Pallet Truck with Standing Type.
.jpg)
Technocal Parameters
| FLIFT Electric Pallet Truck Forklift Specification | ||||
FEATURE |
1.1 | Origin | China | |
| 1.2 | Brand | FLIFT | ||
| 1.3 | Model | CTXZ-20 | ||
| 1.4 | Power Type | Lead Battery | ||
| 1.5 | Operation Type | Standing-driving | ||
| 1.6 | Rated Capacity | kg | 2000 | |
| 1.7 | Load Center | mm | 500 | |
| 1.8 | Lifting Height | mm | 200 | |
DIMENSION |
2.1 | Overall Dimension(L/W/H) | mm | 1750×720×1280 |
| 2.2 | Fork Sizes | mm | 1150×140×50 | |
| 2.3 | Fork Width Min./Max. | mm | 550/688 | |
| 2.4 | Min. Ground Clearance | mm | 85 | |
| 2.5 | Turning Radius | mm | 1580 | |
| 2.6 | Min.Right Angle Channel Width | mm | 2330 | |
WEIGHT |
3.1 | Self-weight(with battery) | kg | 320 |
| 3.2 | Battery Weight | kg | 20 | |
WHEEL |
4.1 | Wheel Type (driving/turning) |
Solid PU | |
| 4.2 | Driving Wheel Sizes | mm | 252×88 | |
| 4.3 | Loading Wheel Sizes | mm | 80×70 | |
DRIVING ＆ CONTROL |
5.1 | Driving Motor | kw(60min) | 0.8 |
| 5.2 | Lifting Motor | kw(60min) | 0.8 | |
| 5.3 | Battery Dimension | mm | 271×174×213 | |
| 5.4 | Battery Voltage/Capacity | V/ah | 2x12/80 | |
| 5.5 | Controller | DC | ||
| 5.6 | Working Pressure | mpa | 14 | |
PERFORMANCE |
6.1 | Travel speed(laden/unladen) | km/h | 4.5/5 |
| 6.2 | Lifting speed(laden/unladen) | mm/s | 30/34 | |
| 6.3 | Max Climbing Ability | % | 5 | |
| 6.4 | Braking | electromagnetic induction | ||
OTHER |
7.1 | Driving Type | Electric | |
| 7.2 | Steering System | Manual | ||
| 7.3 | Noise Level | 63 | ||
| 7.4 | Waterproof Grade | IPX4 | ||
FEATURES
1,This product adopts the well-known hydraulic pump station in the industry, with low noise, low power consumption and low carbon environmental pollution.
2,The wiring plug of the whole car is sealed and waterproof so that the product is safe and reliable and can be used at ease.
3,Whether loading or unloading a trailer or moving loads around a warehouse the FLIFT range of electric pallet trucks are designed to make the operator's job as easy and comfortable as possible to ensure that the warehouse is as productive as possible.
.jpg)

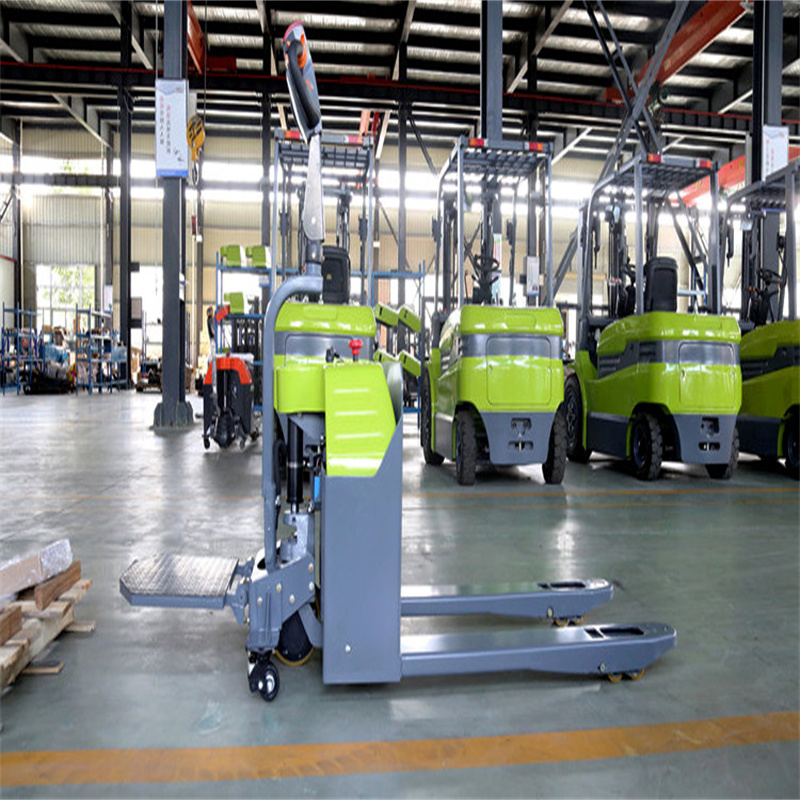

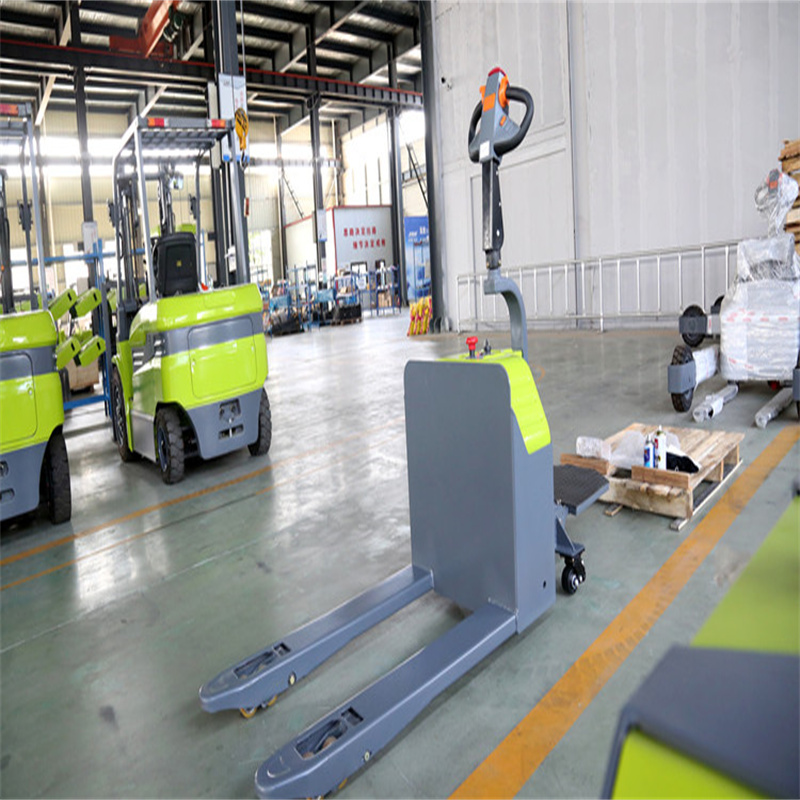

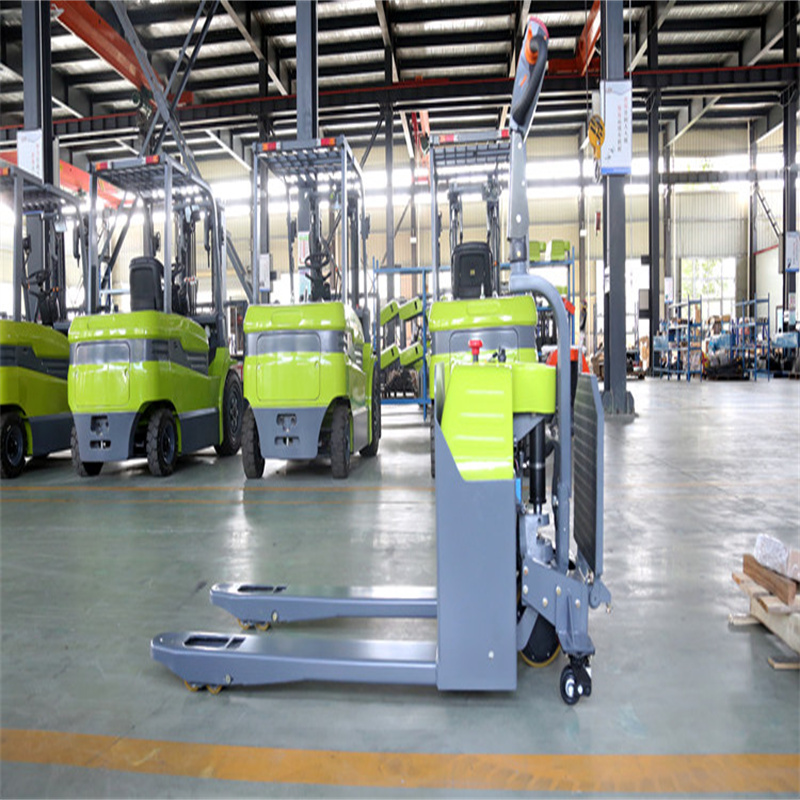

PRODUCT DISPLAY
