DGX1230-walking-type-electric-pallet-stacker
Power TypeStorage Battery
Rated Capacity1200kg
Load Center400mm
Lift height 3000mm
Fork Length1080mm
We're here to help:Easy ways to get the answers you need.
- 1200kg DGX1230 Electric Pallet Stacker
- Factory Supply Cheap Price DGX1230 Electric Pallet Stacker with Storage Battery.
technology parameters
|
FLIFT DGX12-15 series battery forklift technical parameters table |
||||||||
|
Overline |
1 |
Place of Origin |
|
Changge |
Changge |
Changge |
Changge |
|
|
2 |
Model |
|
DGX1220 |
DGX1225 |
DGX1230 |
DGX1520 |
||
|
3 |
Power Type |
|
Storage Battery |
Storage Battery |
Storage Battery |
Storage Battery |
||
|
4 |
Rated Capacity |
Kg |
1200 |
1200 |
1200 |
1500 |
||
|
5 |
Load Center |
mm |
400 |
400 |
400 |
400 |
||
|
Size |
6 |
Lifting Height |
mm |
2000 |
2500 |
3000 |
2000 |
|
|
7 |
Fork Size |
L×W×T |
mm |
1080×140×60 |
1080×140×60 |
1080×140×60 |
1080×140×60 |
|
|
8 |
Fork Distance（Outside） |
Min./Max. |
mm |
685 |
685 |
685 |
685 |
|
|
9 |
|
|
|
|
|
|
||
|
10 |
Overall dimensions |
Overall Length |
mm |
1730 |
1730 |
1730 |
1730 |
|
|
11 |
Overall Width |
mm |
800 |
800 |
800 |
800 |
||
|
12 |
Mast Lowered Height |
mm |
1580 |
2030 |
2630 |
1580 |
||
|
13 |
Mast Extended Height |
mm |
2550 |
3250 |
3750 |
2550 |
||
|
14 |
Min. Turning Radius |
mm |
1410 |
1410 |
1410 |
1410 |
||
|
15 |
Minimum right-angle channel width |
mm |
1000 |
1000 |
1000 |
1000 |
||
|
Performance |
16 |
Speed |
Driving Speed(Full Load） |
km/h |
4 |
4 |
4 |
3 |
|
17 |
Lift Speed（Full Load） |
mm/sec |
130 |
130 |
130 |
110 |
||
|
18 |
Max. Gradeability (Full Load） |
% |
3 |
3 |
3 |
3 |
||
|
19 |
Self-Weight |
Kg |
500 |
540 |
620 |
600 |
||
|
Tire |
20 |
Tire |
Load-bearing wheel (polyurethane)） |
|
80×70 |
80×70 |
80×70 |
80×70 |
|
21 |
Training wheel (polyurethane) |
|
110×55 |
110×55 |
110×55 |
110×55 |
||
|
22 |
Driving wheel (polyurethane) |
|
210×70 |
210×70 |
210×70 |
210×70 |
||
|
23 |
Wheel Base |
Front |
mm |
530 |
530 |
530 |
530 |
|
|
24 |
Rear |
mm |
503 |
503 |
503 |
503 |
||
|
25 |
Wheelbase |
mm |
1151 |
1151 |
1151 |
1151 |
||
|
26 |
Min. ground clearance |
mm |
30 |
30 |
30 |
30 |
||
|
Power unit and control |
27 |
storage battery |
Voltage |
V/Ah |
24V/60Ah |
24V/60Ah |
24V/60Ah |
24V/100Ah |
|
28 |
Weight |
kg |
52 |
52 |
52 |
52 |
||
|
29 |
Motor |
Driving Motor（AC） |
kw(60min) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
30 |
Oil pump motor（AC） |
kw(15min) |
2.2 |
2.2 |
2.2 |
2.2 |
||
|
31 |
Controller |
Place of Origin |
|
CURTIS1212 |
CURTIS1212 |
CURTIS1212 |
CURTIS1212 |
|
|
32 |
Operation Pressure for Attachment |
Mpa |
12 |
12 |
12 |
12 |
||
FEATURES
1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.The steering is flexible and the whole machine runs smoothly.
5.Adjustable auxiliary wheels to solve the slip of the driving wheels with traditional structure.
6.Maintenance-free power battery, and optional 24V/60Ah/80Ah/100Ah.
7.Electric stacker is widely used in factory workshop, warehouse, distribution center, station, freight yard and so on. It can enter the cabin, carriage and container to load and unload pallet goods.
.jpg)

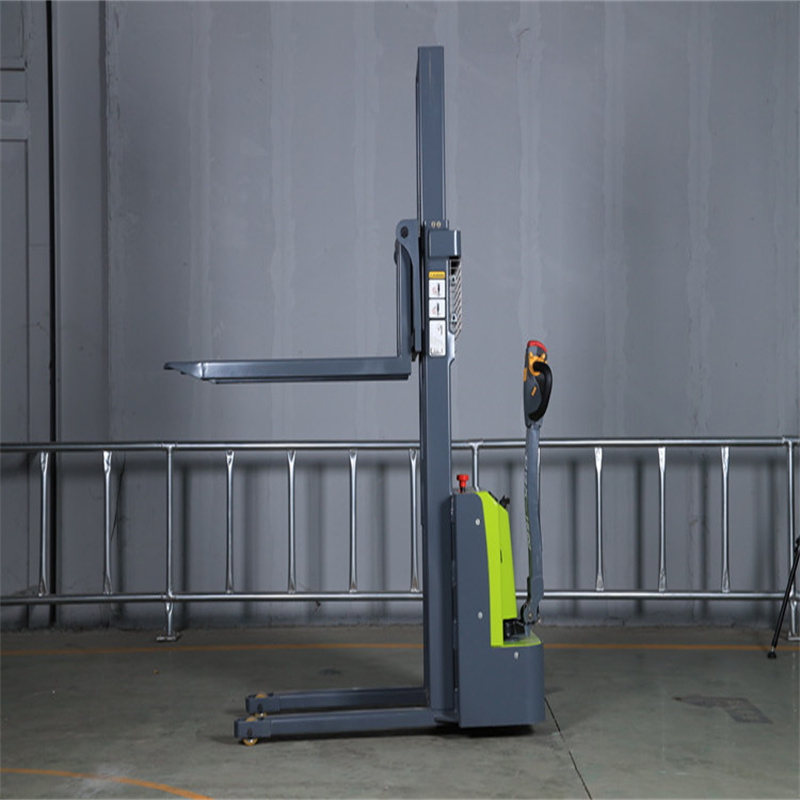

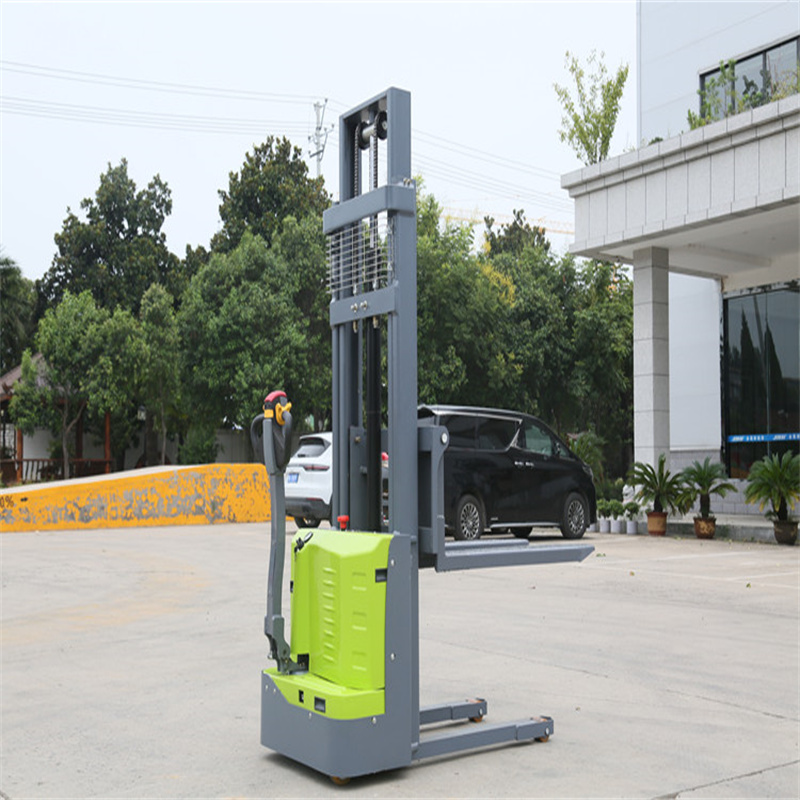

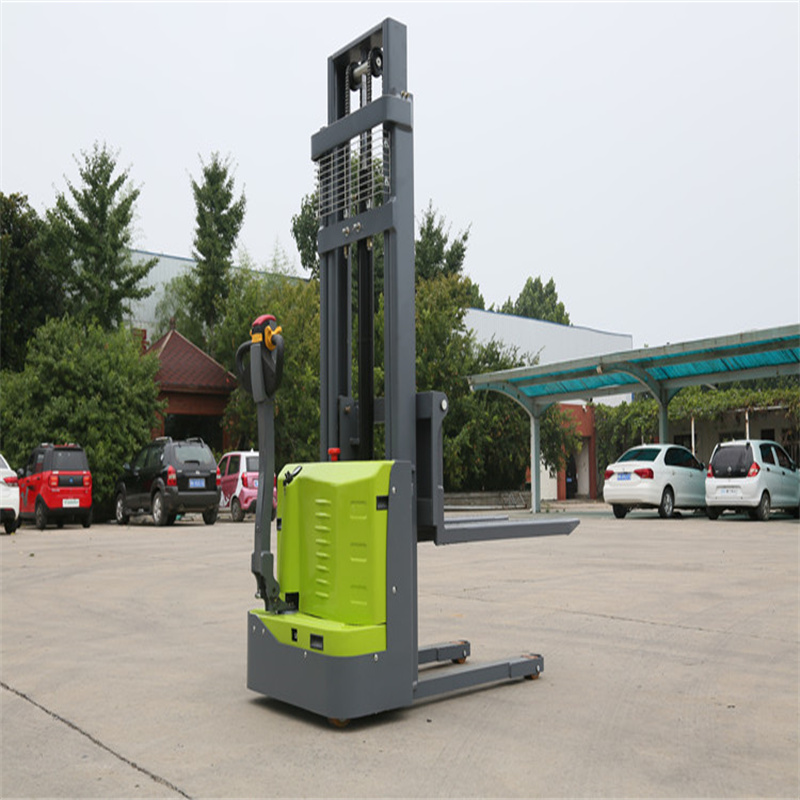

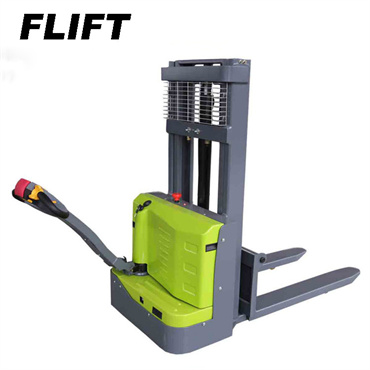

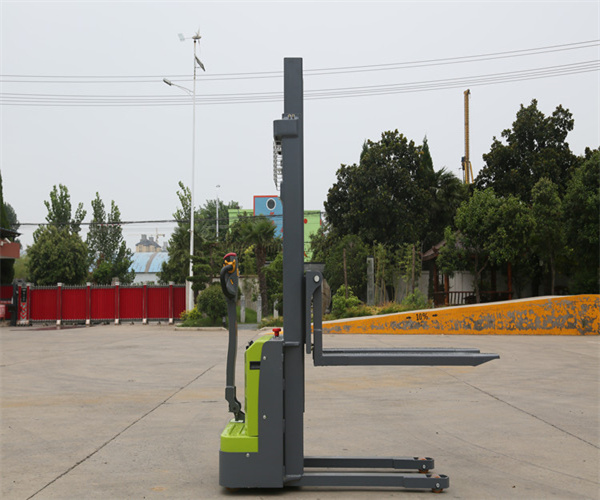

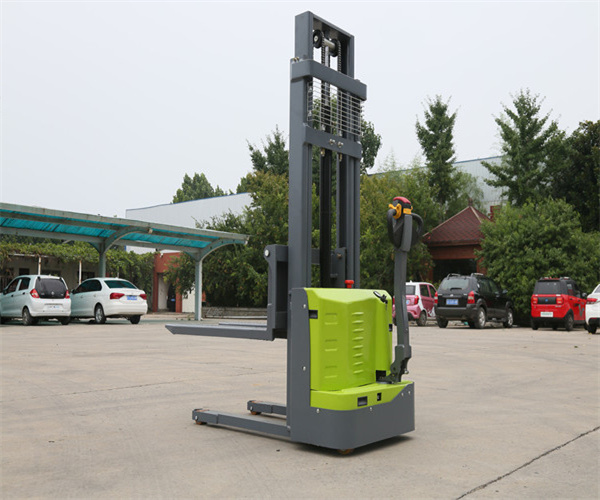

Product Display
.jpg)
.jpg)
.jpg)
.jpg)
Sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
