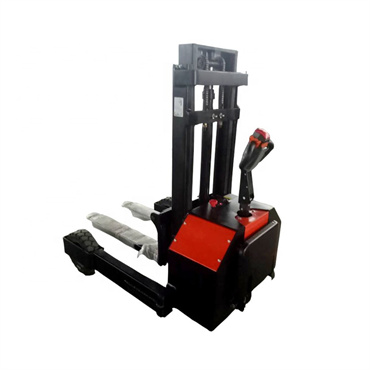

3300lbs Electric off-road pallet stacker
Max.Gradeability10%
Lifting Height2000mm-4500mm
Rated Capacity1500kg
Service Weight1000kg
Load Center400mm
We're here to help:Easy ways to get the answers you need.
- Is this rough terrain stacker suitable for indoor use?
- Rough terrain stackers are best suited to outdoor and mixed indoor/outdoor work environments, due to the possibility that their tires or size could damage smooth floors indoors or make maneuvering them in tight spaces difficult. When used indoors, make sure that adequate tire types and clearance clearance exist before use.
.jpg)
Technical Parameters
|
All Terrain Electric Powered Pallet Stacker Specifications |
||||||
|
FEATURE |
1.1 |
Origin |
|
China |
China |
China |
|
1.2 |
Brand |
|
FLIFT |
FLIFT |
FLIFT |
|
|
1.3 |
Model |
|
DGXB10-20 |
CTXA-20 |
DGXC15-20 |
|
|
1.4 |
Power Type |
|
Battery |
Battery |
Battery |
|
|
1.5 |
Operation Type |
|
Standing Driving |
Standing Driving |
Standing Driving |
|
|
1.6 |
Load Capacity |
kg |
1000 |
2000 |
1500 |
|
|
1.7 |
Load Center |
mm |
400 |
400 |
400 |
|
|
1.8 |
Lift Height |
mm |
2000 |
2000 |
2000 |
|
|
1.9 |
Wheel Base |
mm |
1151 |
1151 |
1151 |
|
|
DIMENSION |
2.1 |
Overal Dimension |
mm |
2580×1000 |
1600×1200 |
1600×1000 |
|
2.2 |
Mast unraise/raise Height |
mm |
1680/2650 |
1680/2650 |
1680/2650 |
|
|
2.3 |
Fork Dimension(L×W×H) |
mm |
1080×140×60 |
1080×140×60 |
1080×140×60 |
|
|
2.4 |
Fork Width Min./Max. |
mm |
685 |
685 |
685 |
|
|
2.6 |
Turning Radius |
mm |
1600 |
1600 |
1600 |
|
|
2.7 |
Min.Right Angle Channel Width |
mm |
1000 |
1000 |
1000 |
|
|
WEIGHT |
3.1 |
Self weight |
kg |
1450 |
1650 |
1600 |
|
3.2 |
Battery Weight |
kg |
52 |
52 |
52 |
|
|
WHEEL |
4.1 |
Wheel Type |
|
Solid Rubber |
Solid Rubber |
Solid Rubber |
|
4.2 |
Driving Wheel Sizes |
mm |
250×70 |
250×70 |
250×70 |
|
|
4.4 |
Loading wheel sizes |
mm |
370×100 |
370×100 |
370×100 |
|
|
4.5 |
Min.Ground Clearance |
mm |
114 |
100 |
100 |
|
|
DRIVE&CONTROL |
5.1 |
Driving Motor |
kw(60min) |
1.5 |
1.5 |
1.5 |
|
5.2 |
Lifting Motor |
kw(60min) |
2.2 |
2.2 |
2.2 |
|
|
5.3 |
Batterydimension |
mm |
271×174×213 |
271×174×213 |
271×174×213 |
|
|
5.4 |
Battery Voltage/Capacity |
VIAh |
24/60 |
24/80 |
24/80 |
|
|
5.5 |
Controller |
|
USA Curtis |
USA Curtis |
USA Curtis |
|
|
5.6 |
Working Pressure |
mpa |
12 |
14 |
14 |
|
|
PERFORMANCE |
6.1 |
Driving Speed |
km/h |
4/4.5 |
3.5/4 |
3.5/4 |
|
6.2 |
Lifting Speed |
mm/s |
45/55 |
45/55 |
45/55 |
|
|
6.3 |
Lowering Speed |
mm/s |
40/55 |
40/55 |
40/55 |
|
|
6.4 |
Traction |
kN |
1.1 |
0.9 |
0.9 |
|
|
6.5 |
Max.traction |
kN |
1.1 |
0.9 |
0.9 |
|
|
6.6 |
Max Climbing Ability |
% |
5 |
4 |
4 |
|
|
6.7 |
Service Braking |
|
electromagneticinduction |
electromagnetic induction |
electromagnetic induction |
|
|
6.8 |
Parking Braking |
|
electromagnetic induction |
electromagnetic induction |
electromagnetic induction |
|
|
OTHER |
7.1 |
Driving type |
|
Electric |
Electric |
Electric |
|
7.2 |
Steering Type |
|
Manual |
Manual |
Manual |
|
|
7.3 |
Noise Level |
|
68 |
63 |
63 |
|
|
7.4 |
Waterproof Grade |
|
IP54 |
IP54 |
IP54 |
|
FEATURES
1.DC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.The Rough Terrain Stacker is designed for outdoor performance, offering strong stability and smooth operation with up to 10% gradeability for efficient material handling;
.png)

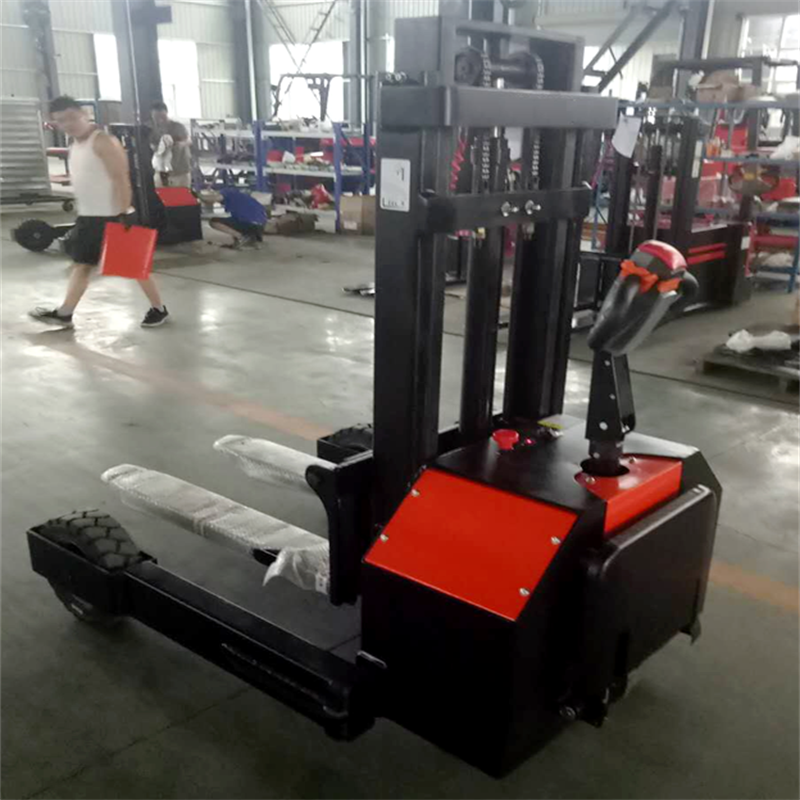

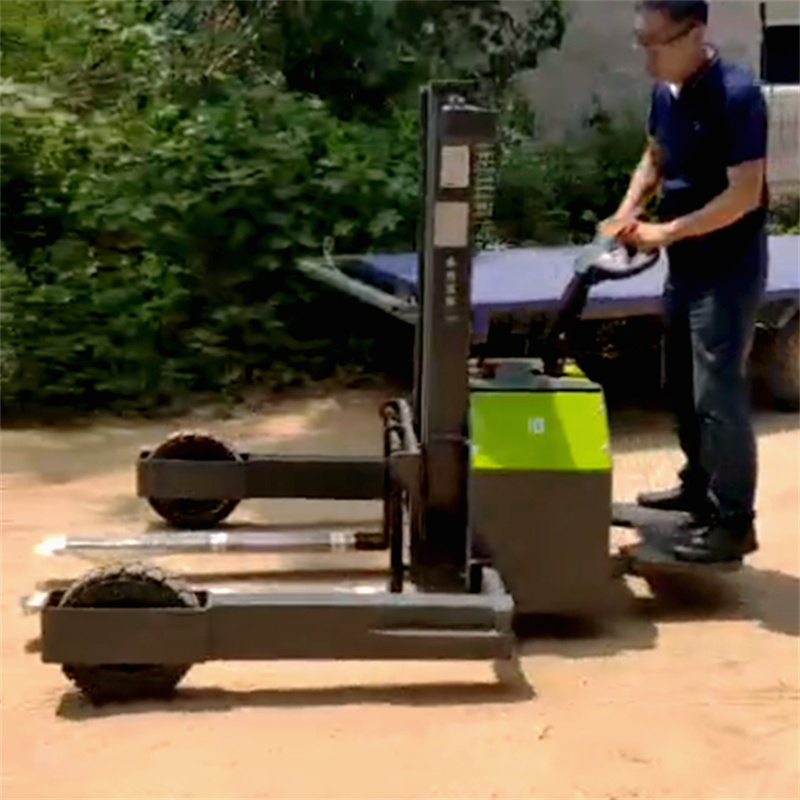

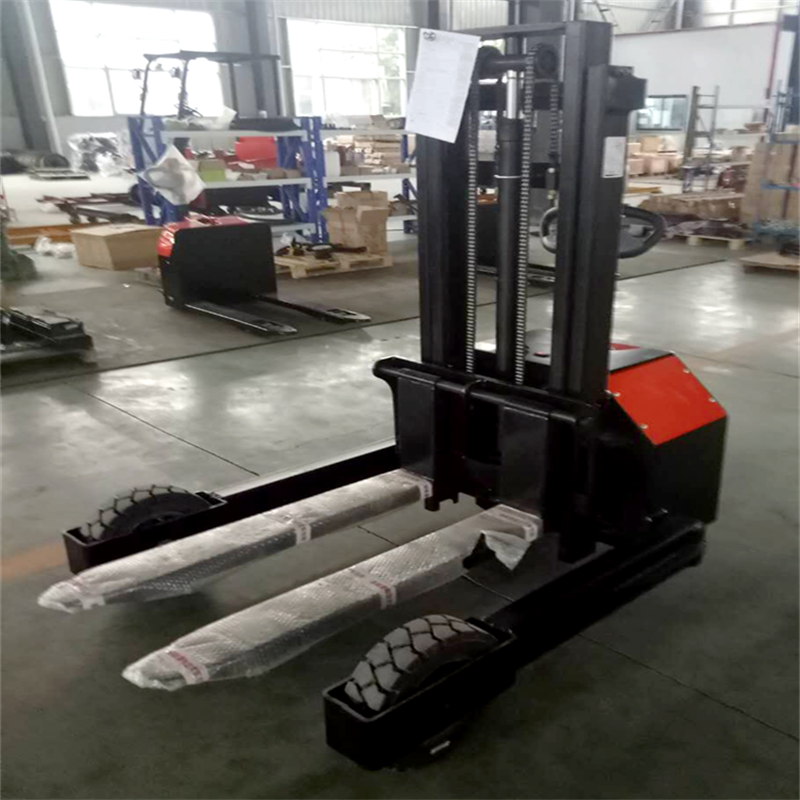

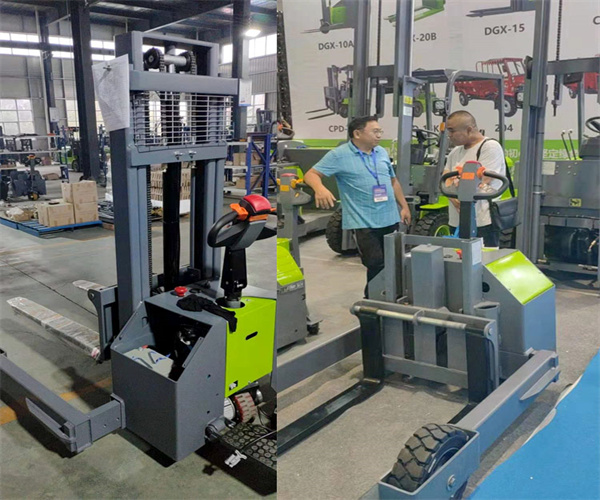

Product Display
.png)
After-sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Inquiry
Please fill in your procurement needs and contact information
Related products
-
- 2t Rough Terrain Pallet Truck
- Power Type:Lead Battery
- Operation Type:Standing Driving
- Load Center:400mm
-
- 1ton-1.6ton 3 Way Pallet Stacker
- Load Capacity:1000kg-1600kg
- Lifting Height:3000mm-8000mm
- Load center:600mm
-
- 1.5ton off road Rough Terrain Stacker
- Power Type:Electric
- Lifting Height:3000mm-4500mm
- Rated Capacity:1500KG
-

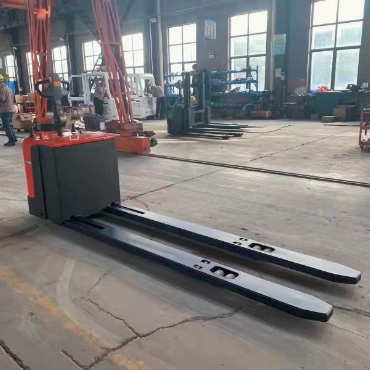

- 5ton end rider electric pallet truck with customized 1.8m fork length
- Load Capacity:5000kg
- Lifting Height:215mm
- Turning radius:2495mm
-

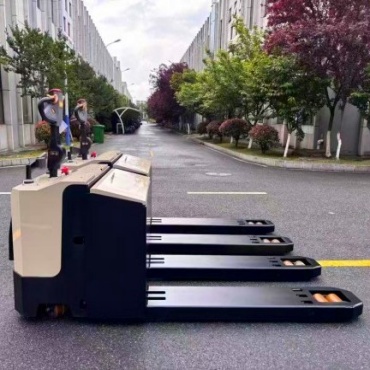

- 10ton-15ton heavy duty electric pallet truck
- Load Capacity:10000kg-15000kg
- Lifting Height:235mm
- Turning radius:2060mm (Walkie Model)
-
- Counterbalanced Pallet Stacker 1600 lb to 2000 lb Capacity for Indoor Warehouses
- Load Capacity:800kg-1000kg
- Lifting Height:1500mm-4500mm
- Turning radius:1155mm
-
- 4 direction reach truck
- Controller brand :America Curtis
- Load Capacity:1500KG-2500KG
- Battery Capacity:48v/300ah
-
.jpg)
- 2t Elecric Hand Truck
- Model:CTX20
- Lifting Height:205mm
- Rated Capacity:2000kg
-
- 1.5 Ton Reach Forklift
- Model:FBR15-FBR25
- Power type:Battery
- Max. Gradeability:5%(No load)
-

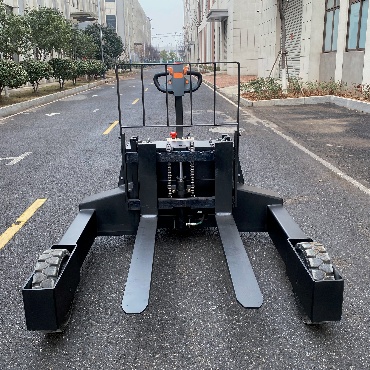

- 2.5ton all terrain electric pallet jack
