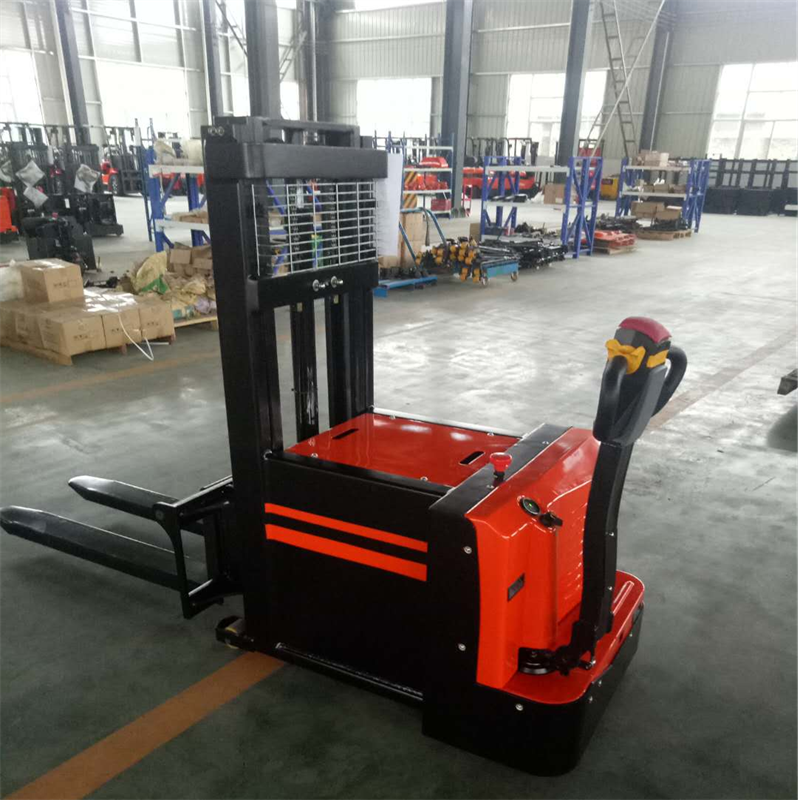

Walkie Counterbalanced Stacker 1500–2000kg Capacity Compact Design
Max.Gradeability8% (no load)
Lifting Height2000mm-4500mm
Rated Capacity1500kg-2000KG
Battery Capapcity24V/210AH
Turning Radius1605mm/1900mm
We're here to help:Easy ways to get the answers you need.
- Pedestrian Counterbalanced Pallet Stackers
- The FLIFT 1.5 Ton to 2 Ton series Walkie Counterbalanced Stacker provides maximum efficiency in limited warehouse space. Featuring strong lifting capability, precise controls, and durable construction, it’s the perfect solution for safe and versatile indoor material handling.
Technical Parameters
|
Pedestrian Counterbalanced Stackers Specifications (1.0-2.0T) |
||||
|
Models |
|
CDD10B |
CDD15B |
CDD20B |
|
Driving Models |
|
Walkie (Pedal) |
|
|
|
Rated load |
Q(kg) |
1000 |
1500 |
2000 |
|
Center distance of load |
C(mm) |
500 |
500 |
500 |
|
Front suspension |
x(mm) |
145 |
145 |
150 |
|
wheelbase |
y(mm) |
1210 |
1310 |
1610 |
|
Tare weight(including battery) |
kg |
1800 |
2050 |
2170 |
|
No-load axle load,drive side/load-bearing side |
kg |
1000/800 |
1220/830 |
1340/830 |
|
Full load axle load,drive side/bearing side |
kg |
530/2270 |
550/3000 |
530/3640 |
|
Type of tire |
|
PU |
PU |
PU |
|
Tire size,load side |
mm |
φ210×85 |
φ210×85 |
φ210×85 |
|
Tire dimensions,drive side |
mm |
φ230×75 |
φ230×75 |
φ230×75 |
|
Dimension of stabilizing wheel |
mm |
φ130x55 |
φ130×55 |
φ130x55 |
|
Number of wheels,front/rear(x=drive wheels) |
|
2/1X-2 |
2/1X-2 |
2/1X-2 |
|
Wheelbase,drive side |
mm |
684 |
684 |
684 |
|
Wheelbase,load bearing side |
mm |
890 |
890 |
890 |
|
Closing height of door frame |
h1(mm) |
1835 |
1835 |
1835 |
|
Free lifting height |
h2(mm) |
/ |
/ |
/ |
|
lifting height |
h3(mm) |
2500 |
2500 |
2500 |
|
Maximum height of gantry when lifting(including shelves) |
h4(mm) |
3540 |
3540 |
3545 |
|
Height of the control handle from the ground |
h5(mm) |
1510 |
1510 |
1510 |
|
Full car length,pedals up/down |
L1(mm) |
2705/3100 |
2805/3200 |
3110/3505 |
|
Vehicle width |
b1/b2 |
900/990 |
900/990 |
900/990 |
|
Fork size |
I/e/s |
1070/100/35 |
1070/122/40 |
1070/122 /40 |
|
Width of shelf |
b3(mm) |
950 |
950 |
950 |
|
Outside distance of forks |
b5(mm) |
240-700 |
266-720 |
266-720 |
|
Ground dearance of door frame |
mm |
100 |
100 |
100 |
|
Vehicle ground clearance |
m(mm) |
68 |
68 |
68 |
|
Stack channel width (pallet 1000x1200)1200 cross forks,pedals up/down |
Ast (mm) |
3000/3394
|
3100/3495
|
3400/3792 |
|
Stack channel width (tray 800x1200)1200 along fork, pedals up/down |
Ast (mm) |
3112/350
|
3212/360
|
3510/3900
|
|
Turn radius,pedals up/down |
Wa (mm) |
1505/1898
|
1605/1997
|
1900/229 |
|
Speed,ful/empty |
km/h |
4.0/5.5 |
4.0/5.5 |
4.0/5.5 |
|
Liftingspeed,full/no load |
mm/s |
75/100 |
80/150 |
75/130 |
|
Rate of descent,full/no load |
mm/s |
180/100 |
200/105 |
200/95 |
|
Maximum climbing capacity.ful/no load(S2-5MIN) |
% |
5/8 |
4/8 |
3/8 |
|
Braking mode |
|
electromagnetic brake |
electromagnetic brake |
electromagnetic brake |
|
Drive Motor Power (S2-60MIN) |
kw |
1.6(AC) |
1.6(AC) |
2.2(AC) |
|
Lift motor power |
kw |
2.2 |
3 |
3 |
|
Battery,voltage/rated capacity |
V/Ah |
24/210 |
24/210 |
24/210 |
|
Weight of battery |
kg |
190 |
190 |
190 |
|
Steering mode |
|
Electric |
Electric |
Electric |
|
Battery replacement method |
|
Lifting Type |
Lifting Type |
Lifting Type |
FEATURES

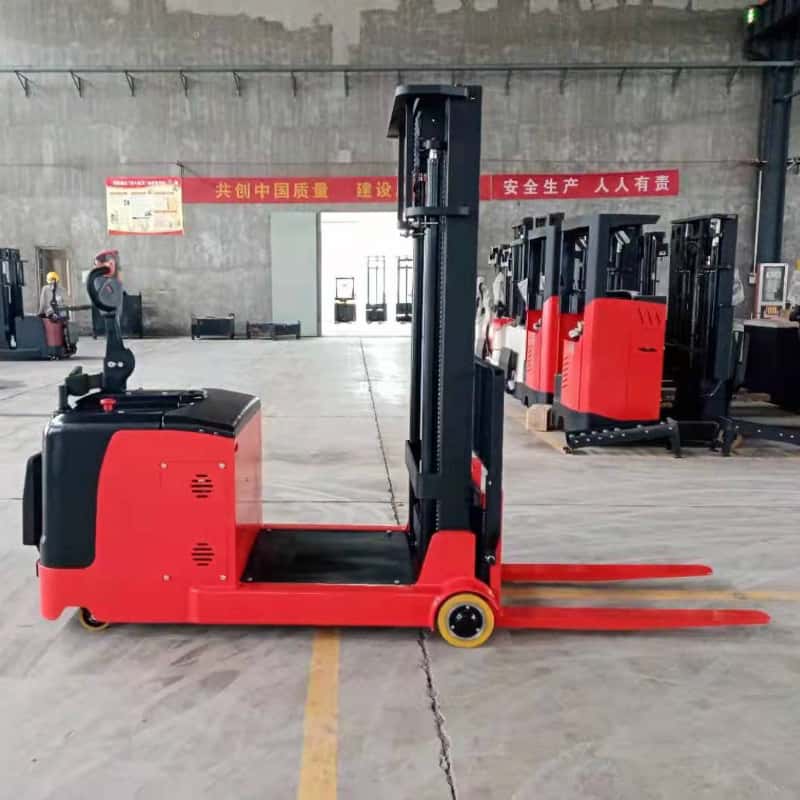

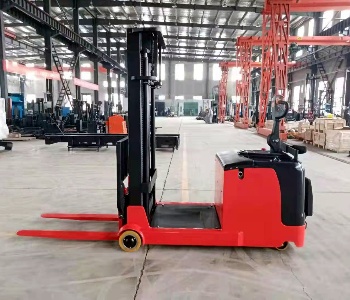

Counterbalanced Walkie Stacker
Character:
1.Double cylinder,wide view door frame.
2.Multi-function integrated handle/electronic steering and electromagnetic brakes.
3.USA Curtis brand controller system.
4.Automatic deceleration of High Forks.
5.High abrasion resistant polyurethane wheel.
6.Body shock absorption system/pedals.
7.AC drive,No Carbon Brush,motor maintenance-free .
8.Optional forks tilt forward and backward function and lithium battery
9.Emergency reverse anti-collision device/emergency power cut-off switch,Automatic deceleration in corners.
Applications
After-sales Service
We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
.jpg)
.jpg)
.jpg)
Pre-Sales Service
* Inquiry and consulting support.
* Inspection support
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
