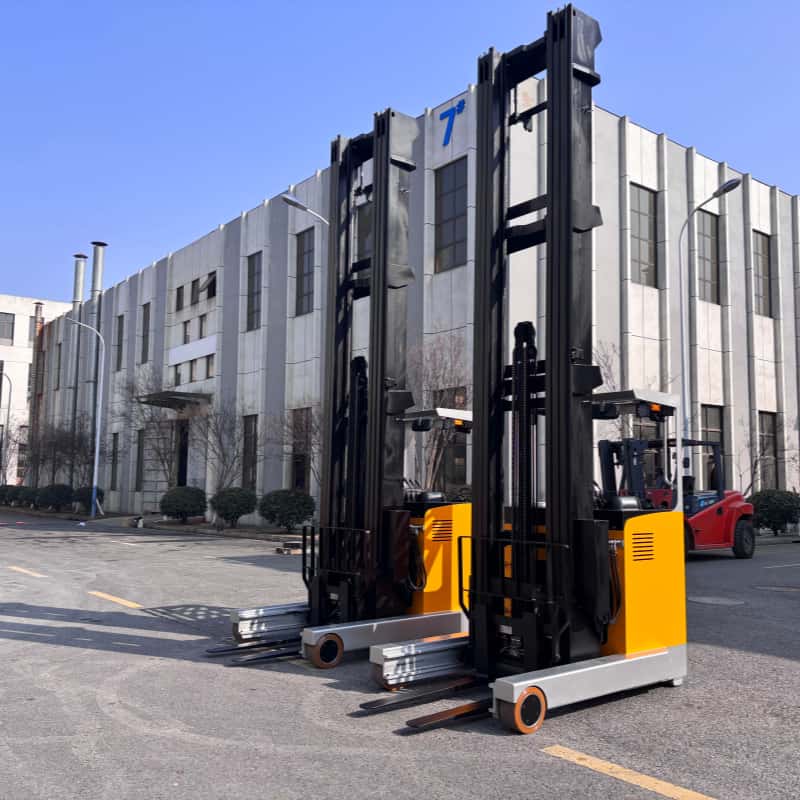

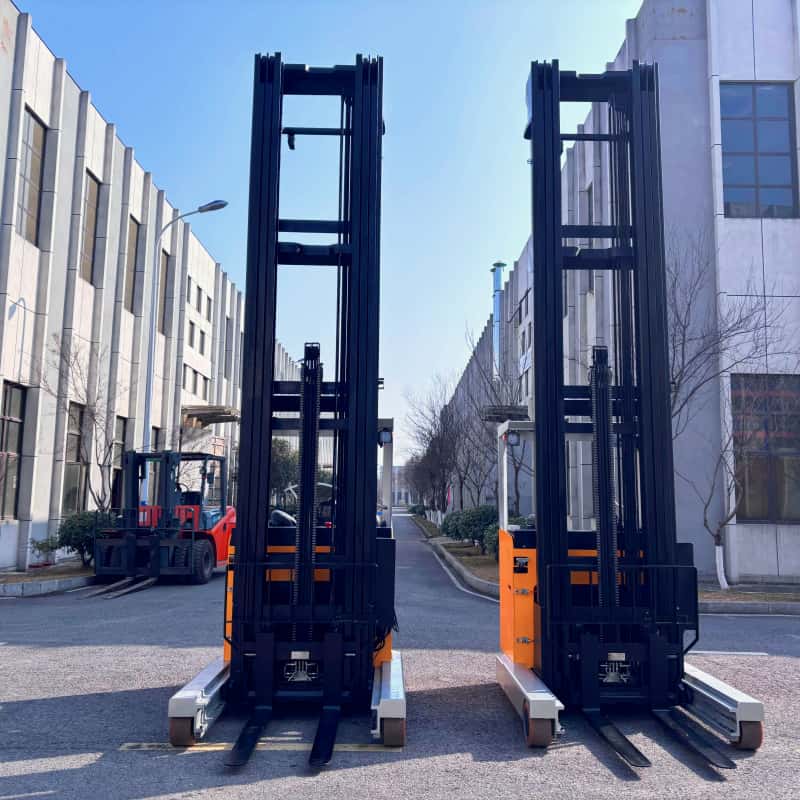

Heavy duty 2ton Electric Reach Truck for Narrow Aisle Warehouses

Technical Parameters

FLIFT 2.5T Electric Reach Forklift Truck Specifications
Model		CQD25
Battery Type		Lead -Acid Battery
Operation Type		Seated Type
Rated Capacity	kg	2500
Load Center	mm	530 ( Customized load center as demand )
Tyre mode	mm	Solid PU
Front Wheeling Size	mm	Φ267*114
Driving Wheeling Size	mm	Φ343*135
Numbers of Tires		2/1X
Mast Tilt Angle		3°/5°
Lifting Height	mm	12000
Mast Lowered Height	mm	5020
Overhead Guard Height	mm	2190
Fork Height	mm	310
First step height	mm	320
Second step height	mm	530
Seat height	mm	975
Secondary pedal height distance from overhead guard	mm	1615
Fork leg clearance	mm	110
Forklift Body floor clearance	mm	80
Overall Length	mm	2500
Forward distance	mm	650
Front overhang	mm	160
Wheel Base	mm	1665
Oveall Width	mm	1270
Tread (Front/Rear)	mm	1158
Fork outside width	mm	260-820
Fork Size	mm	107012240
Aisle width	mm	2975 (1000*1000mm Pallet)
Turning Radius	mm	1945
Driving Speed	km/h	7.5 /8.0
Lifting Speed	mm/s	150/400
Descend Speed	mm/s	350/160
Gradeability (Full load/no load)	%	8% / 15%
Driving motor capacity	kw	6.5
Lifting motor capacity	kw	8.6
Battery Voltage/Capacity	V/AH	48 /400-450ah
Battery Weight	kg	700
Overall Weight	kg	5400
Steering Type		Electronic steering
Parking Brake Type		Electromagnetic brake

FEATURES

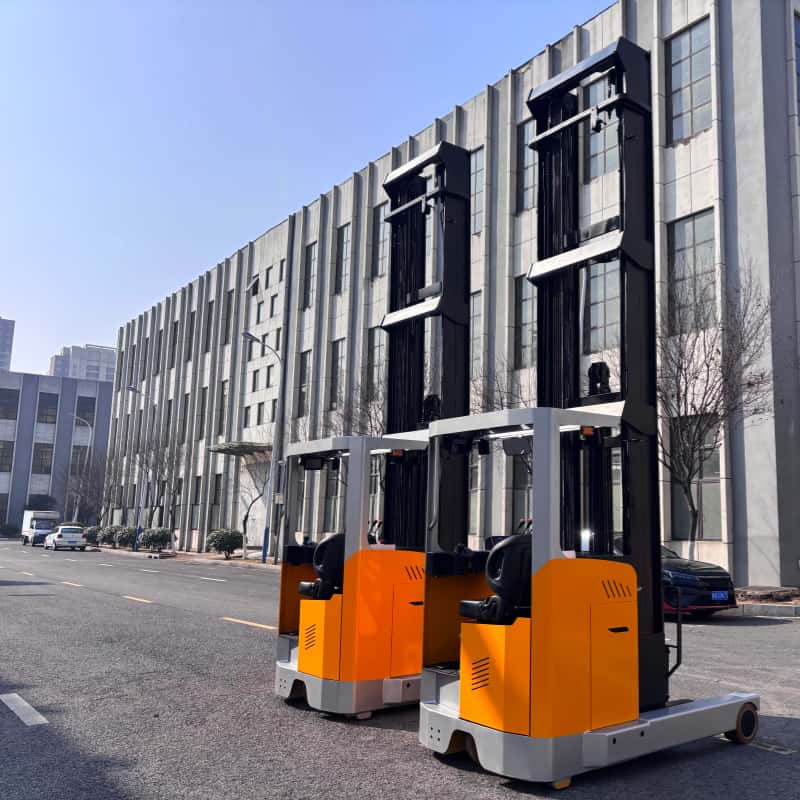

2.5t electric reach truck 12m lifting height
Character:
1,High-Lift Heavy-Duty Design
2.5T electric reach truck with a customized 3-stage 12m mast, engineered for high-bay warehouse operations.
2,Flexible Mast & Attachment Options
Optional 4-stage full free mast, side shifter, and fork positioner to meet diverse material-handling needs.
3,Reliable American Curtis Controller
Equipped with an American Curtis brand controller for precise control and long-term operational stability.
4,Multiple Battery Solutions
Supports 48V 400Ah–600Ah batteries, available in lead-acid or high-efficiency lithium configurations.
5,Excellent Stability & Maneuverability
Service weight around 5,400 kg ensures stability, while a 1945 mm minimum turning radius suits narrow aisles.
6,Powerful Performance Under Load
8.6 kW lift motor and 6.5 kW drive motor deliver smooth operation and up to 8% gradeability at full load.

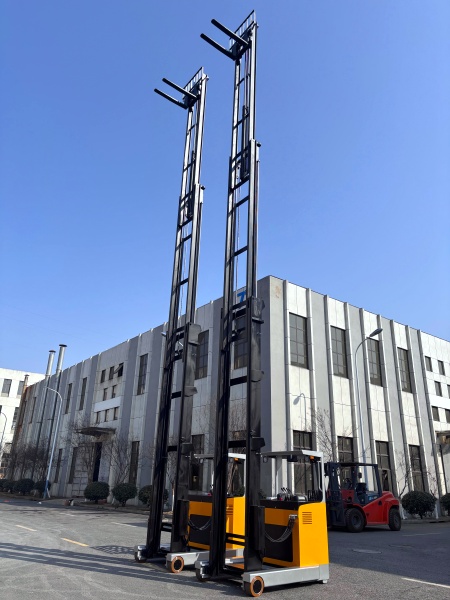

12m Heavy Duty Reach Truck

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
