Electric Counterbalanced Stacker Truck 1600 lb to 2000 lb for Tight Spaces

Technical Parameters

FLIFT 2000lb Counterbalanced pallet stacker specifications
Model		CDD-08B	CDD-10B
Type of power		Lead-acid battery	Lead-acid battery
Driving type		(Stand-on Pedal model)	(Stand-on Pedal model)
Rated load	Q(kg)	800	1000
Lifting height	h3(mm)	2500	2500
Overall length,pedals retracted/down	L1(mm)	2336/2731	2636/2731
Overall width	b1/b2	900/985	900/985
Fork dimensions	s/e/(mm)	35/100/1070	35/100/1070
Fork outside width adjustment range	b5(mm)	220-700	220-700
Mast closed height	h1(mm)	1850	1850
Maximum height of mast during lifing(including load backrest)	h4(mm)	3495	3495
Width of load backrest	b3(mm)	950	950
Min height of mast off the ground	mm	100	100
Height of vehicle off the ground	m(mm)	65	65
Height of the operating handle	h5(mm)	1510	1510
Battery,voltage/capacity	V/Ah	24/210	24/240
Weight of battery	kg	190	190
Vehicle weight(including battery)	kg	1580	1600
Driving motor Power(S2-60MIN)	kw	1.6(AC)	1.6(AC)
Lifting motor power	kw	2.2	2.2
Tire		Polyurethane	Polyurethane
Tire dimensions,drive wheel	mm	φ230x75	φ230x75
Tire dimensions,load wheel	mm	φ210×85	φ210×85
Dimension of balance wheel	mm	φ125×50	φ125×50
Number of wheels,front/rear(x=drive wheel)		2/1X-2	2/1X-2
Wheel track,drive Side	mm	654	654
Wheel track,bear Side	mm	887	887
wheelbase	y(mm)	855	855
Load center	C(mm)	500	500
Front overhang	x(mm)	135	135
Turn radius,pedals retracted/down	Wa(mm)	1155/1545	1155/1545
Stack channel width(pallet 1000×1200)1200 cross forks,pedals retracted/down	Ast(mm)	2642/3032	2642/3032
Stack channel width (pallet 800×1200)1200 along fork,pedals retracteddown	Ast(mm)	2752/3142	2752/3142
Full-load axle load,drive side/bear side	kg	265/2115	265/2115
No-load axle load,drive side/bear side	kg	835/745	835/745
Driving speed,full load/no load	km/h	4.0/5.5	4.0/5.5
Lifting speed,full load/no load	mm/s	75/100	75/100
Descent speed,fll load/no load	mm/s	180/100	180/100
Maximum climbing,full load/no load(S2-5MIN)	%	5/8.	5/8.
Braking type		Electromagnetic brake	Electromagnetic brake
Steering type		Electric steering	Electric steering
Battery replacement method		Lifting type	Lifting type

FEATURES

800kg-1000kg Counterbalanced Stacker
Character:
1.Integral hydraulic lifting pump station.
2.Smaller turning radius of 1155mm for easy maneuvering.
3.USA Curtis brand communication control system.
4.The whole vehicle seals adopt Japanese NOK.
5.High abrasion resistant polyurethane wheel.
6.External Charger Design,and Vertical AC drive motor/vertical gearbox.
7.Stepless speed regulation,safety and mute.
8.Electronic steering/electromagnetic brakes.
9.Optional forks tilt forward and backward function and lithium battery
10.Emergency reverse anti-collision device/emergency power cut-off switch,Automatic deceleration in corners.

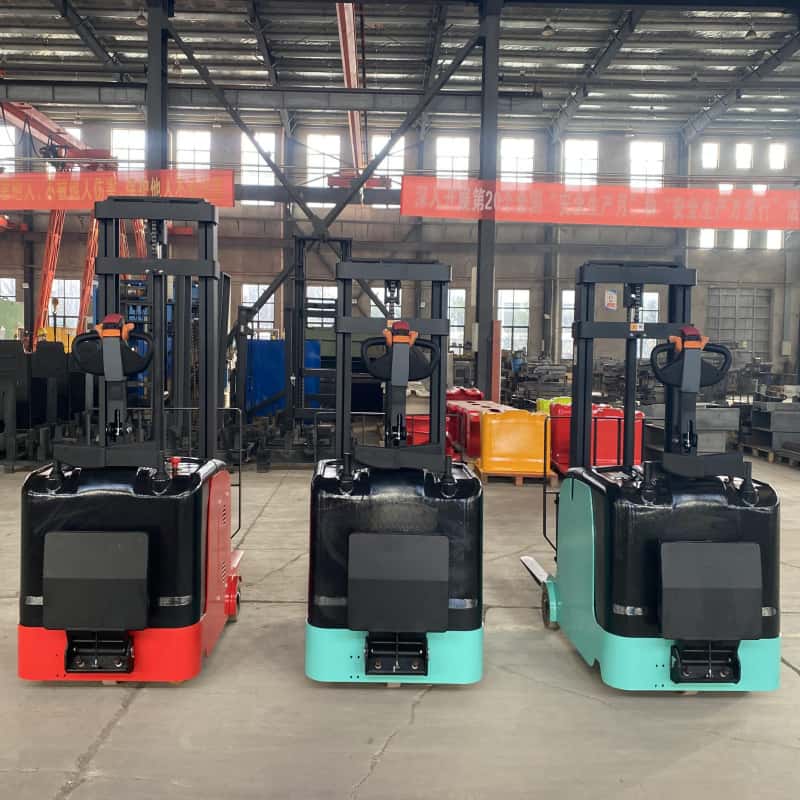

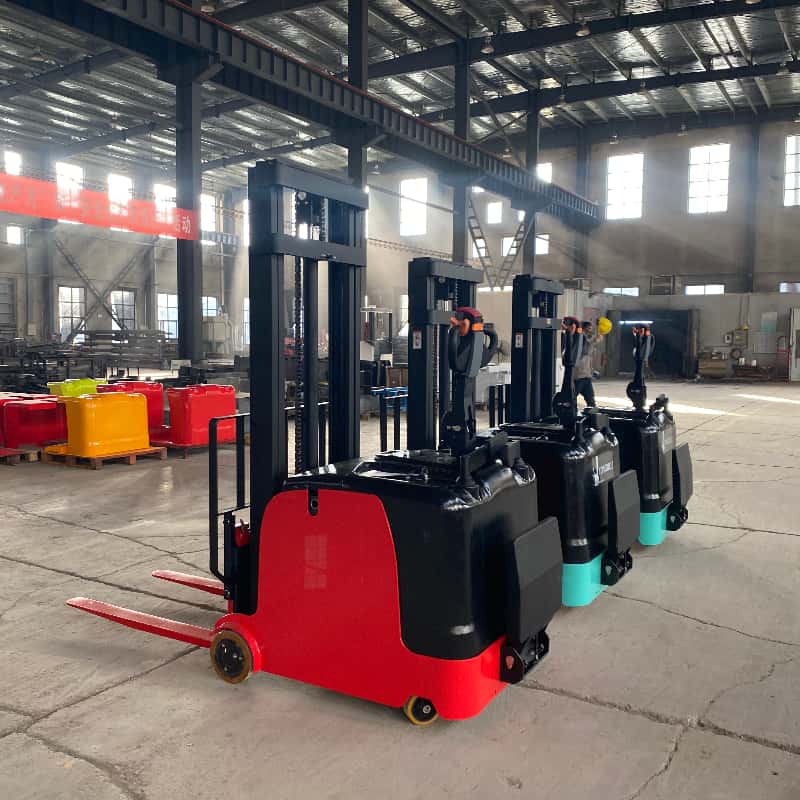

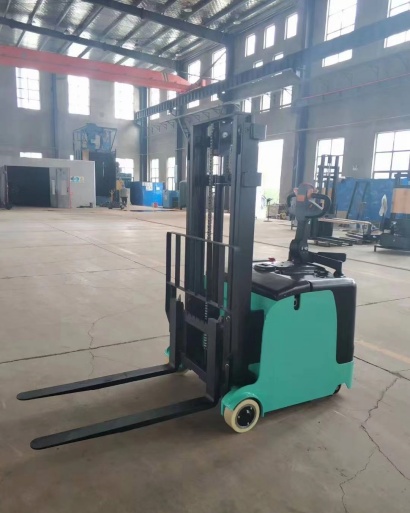

counterbalanced Electric pallet stacker

Applications

Heavy-Duty Walkie Counterbalance Stacker Electric counterbalance pallet stacker price 1ton counterbalanced pallet stacker

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
