1.0t -1.5 Ton straddle pallet stacker| Efficient Warehouse Lifting & Material Handling

Technical Parameters

1.0t -1.5ton Straddle Pallet Stacker Specification
Model		CDD10A / 15A
Power Type		Storage Battery
Operation Type		Walking handle type
Rated Capacity	kg	1000/1500
Load Center	mm	500
Tyre Mode Front/Rear		PU
Wheel Bearing	mm	85*70
Driving wheeling	mm	210*70
Auxiliary Wheel	mm	130*55
Number of wheels		2/1X+1
Mast mode		2 Stage
Standard lifting height	mm	3000
Free Lifting Height	mm	0
Mast Lowered Height	mm	2080
Mast Extended Height	mm	3560
Minimum ground clearance of fork surface	mm	85
Overall Length	mm	1710
Wheel Base	mm	1185
Overall Width	mm	800
Tread Front/Rear	mm	525/535
Fork Size	mm	1150/160/60
Maximum forks width	mm	685/560
Aisle width (1000*1200 Pallet)	mm	2205
Aisle width (800*1200 Pallet)	mm	2145
Turning Radius	mm	1366
Driving Speed (Full Load/no load)	km/h	3.5/4
Lifting speed (Full Load/no load)	mm/s	80/125
Descend speed (Full Load/no load)	mm/s	150/100
Gradeability(S2-5) Full/no load	%	3%/6%
Driving Motor capacity	kw	0.75
Lifting Motor capacity	kw	2
Storage Battery	V/AH	24/60
Battery Weight	kg	20
Overall Weight (with battery)	kg	625
Steering Type		Manual operation
Parking brake type		Electronic Brake
Parking brake operation mode		Handle Operation

FEATURES

1.AC drive motor,strong climbing force;
2.High capacity maintenance free battery;
3.Built-in smart charger;
4.Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Multi-function integrated,narrow channel special operation handle;
6.Equipped with standard America CURTIS brand Controller,and controller multiple automatic protection system;
7.Emergency reverse anti-collision device /emergency power cut-off switch;
8.Automatic deceleration in corners;

electric walkie stacker

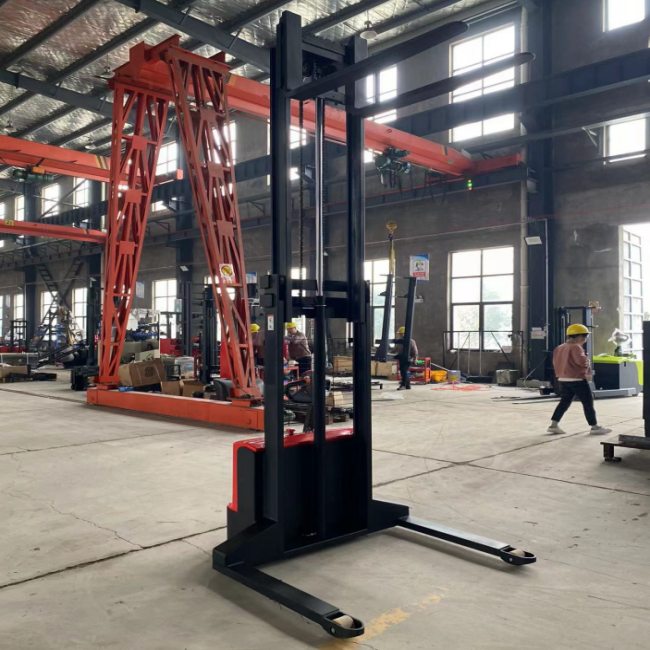

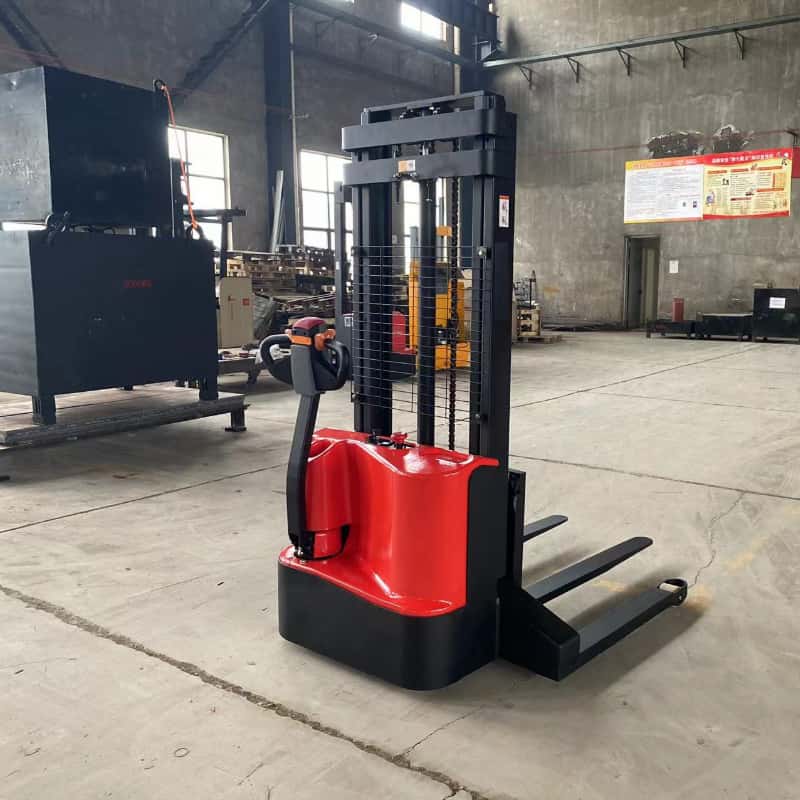

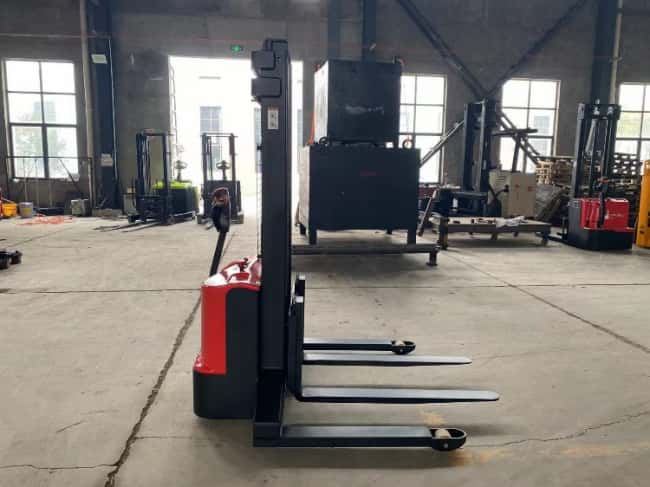

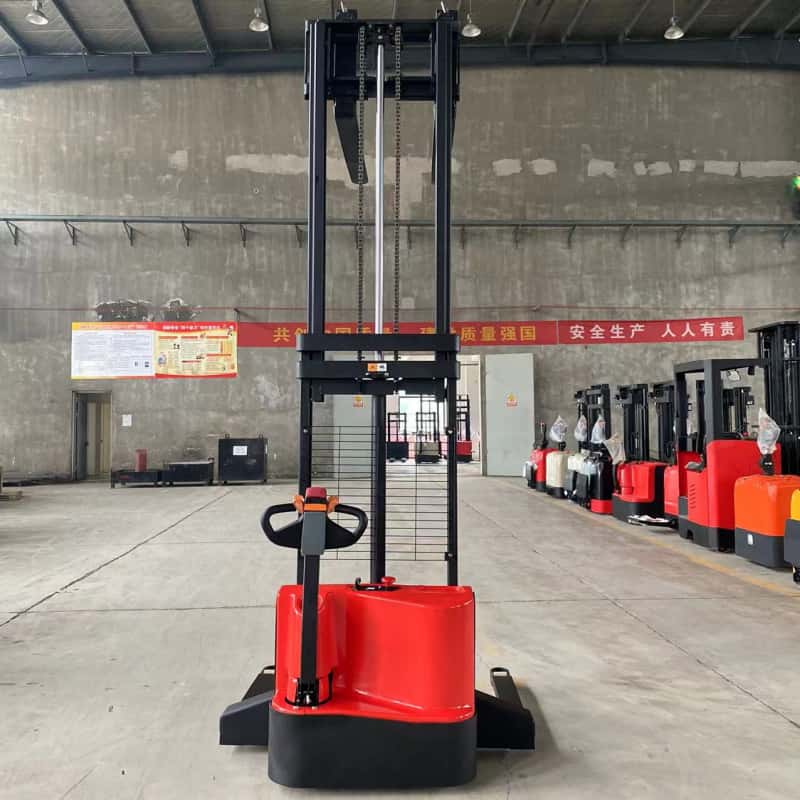

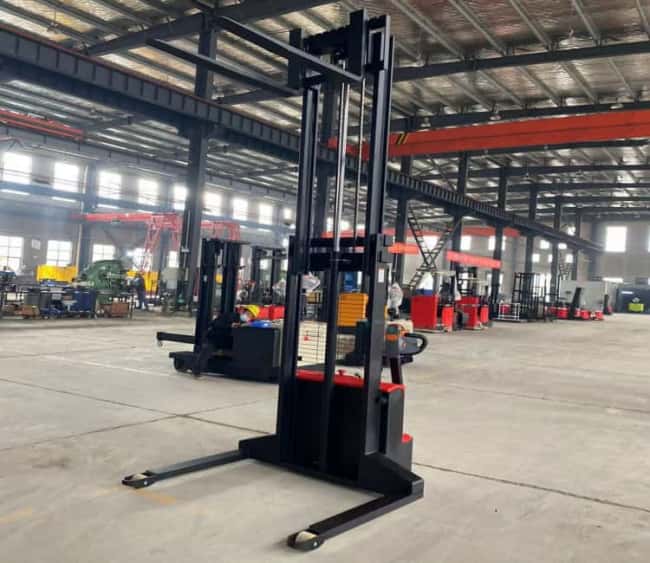

Product Display

walkie stacker electric

Walkie straddle stacker price

Electric Walkie Straddle Stacker

After-sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, FLIFT Forklift will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
