1 Ton roll handling trolley | Roll Lifting Trolley

Technical Parameters

FLIFT- Film Roll Lifter Specifications
Model		CDD10D-13
Power type		Electric
Operation mode		Walkie Type
Rated load	kg	1000
Load center distance	mm	500
Tire type Front/rear		Polyurethane
Load wheel		Φ85*70
Drive wheel		φ250*80
Auxiliary wheel		Φ130*55
Mast type		(Customized Single Column Mast)
Standard lifting height	mm	1300
Maximum Ground Clearance	mm	25
Arc-shaped Pallet Holder width	mm	1100
Arc-shaped Pallet Holder Tilt Angle	。	3 / 5 (F/ R)
Overall length	mm	1700
Overall width	mm	900
Mast lowered height	mm	750
Aisle width（Min.Right Angle Stacking Aisle Width)	mm	2100
Turning radius	mm	1650
Travel speed( Full load/no load)	km/h	3.5 / 4
Lifting speed (Full load/no load)	mm/s	85/125
Descending speed (Full load/no load)	mm/s	155/105
Climbing gradeability(Full load/no load)	%	6°/ 10 °
Drive motor power	kw	1.5
Lifting motor power	kw	2.2
Battery Voltage/capacity	V/Ah	24/210
Battery Type		Lead - Acid
Service Weight(including battery)	Kg	753
Steering type		Mechanical steering
Parking brake type		Electromagnetic brake
Parking brake operation mode		Handle operation

FEATURES

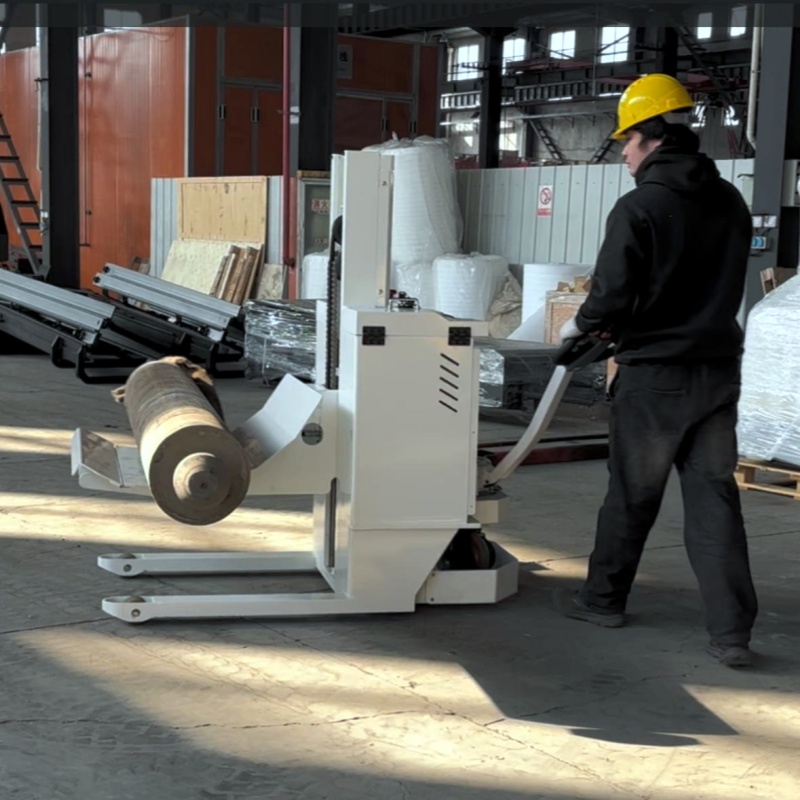

FLIFT 1000kg Plastic Film reel Lifter
Character:
1:Designed for large plastic film rolls up to 1100mm diameter, the curved 1000mm pallet ensures stable.
2:With a 1000kg rated capacity and 1.3m lifting height,rigid single mast structure delivers reliable lifting performance in industrial environments.
3:The pallet tilts 3° forward and 5° backward, allowing safer roll positioning and easier alignment during loading and unloading.
4:A 24V 210Ah maintenance-free battery provides long working hours, reducing downtime.
5:Curtis controllers across the series ensure smooth lifting, precise control, and higher energy efficiency.
6:The walk-behind design with mechanical steering offers excellent maneuverability,making reel lifter ideal for narrow aisles and confined workspaces.

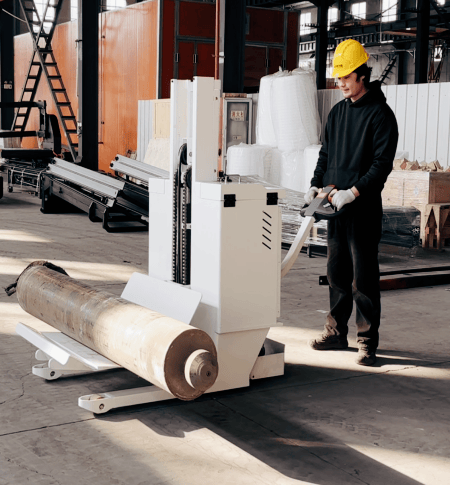

roll handling trolley

Applications

roll lifting equipment Electric paper roll lift film roll handling equipment

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
