MCC16 1.6t Man Mount Three-way Stacker

Driving TypeMan-Mount/Standed/Seated

Rated Capacity1600kg

Load Center600mm

Total Lift Height6200mm

Carry Distance435mm

We're here to help:Easy ways to get the answers you need.

1.6t Man-Mount Three-way Stacker
Easy Operation High Safety MCC16 Carry Distance 435mm Man-Mount Three way Stacker with Load Center 600mm.

technology parameters

Driving Type

Man- Mount/Standed/Seated

Rated Capacity

kg

1600

Loading Center

mm

600

Carry Distance

mm

435

Service Weight

kg

7720

Wheel Type



PU

Wheelbase

mm

1950

Wheel Size (Load-bearing wheels)

mm

0380x192

Wheel Size (Driving wheels)

mm

0400x160

Tire Quantity (Front/ Driving)



2/1x

Tread

b11 (mm)

1310

The Lowered Mast Height

h1 (mm)

3665

Main Mast Lifting Height

h3 (mm)

4500

Secondly Mast Lifting Height

h9 (mm)

1700

Mast Extended Height

h4 (mm)

7130

Overhead Guard Height

h6 (mm)

2590

Height ofthe Station Board From the Ground

h7 (mm)

445

Total Lifting Height

h3+h9 (mm)

6200

Max. Picking Order Height

h12+1600 (mm)

6545

Overall Width

L2 (mm)

3475

Overall Width

b1/b2 (mm)

1244/1502

Fork Size

L xW xT

1200x125x50

Fork outer distance

b5(mm)

260-725

Lateral Movement Distance

mm

1300

The distance from the center of the fork rotation from the center of the front axle

I8(mm)

1095

Guide wheel outer distance

b6(mm)

1550

Mini. Ground clearance

m1(mm)

45

Mini. ground clearance in the center of the body's wheelbase

m2(mm)

80

Turning Radius

Wa(mm)

2235

Mini.aisle width Pallet size(1200mmx1200mm)

mm

1650

Driving Speed Full / Empty load

Km/h

10/10

Lifting Speed Full/ Empty load

mm/s

320/320

Descent Speed Full/ Empty load

mm/s

400/380

Max. Gradeability

% (tan 0)

5/8

Driving Braking Mode



Regenerative Brake

Parking Braking Mode



Electromagnetic

Driving Motor (A C)

KW

8

Lifting Motor (A C)

KW

21

Battery Capacity

V/ah

80/560

Battery Replacement Mode



Side Pull Type

Steering System



Electronic Steering

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Through the setting of the height sensor and the optimization of the hydraulic and electrical system of the whole vehicle.
5.The gantry channel steel adopts imported high-strength customized steel to ensure the super high load capacity. The fork of the high-level stacking operation is less shaky,the operation is more safer.
6.After detecting obstacles or people in front of and behind the set distance,automatically accelerate until stopping.
7.The driver can control and grasp all the status of the vehicle through the integrated control panel.
8.Super low & Non-slip step.

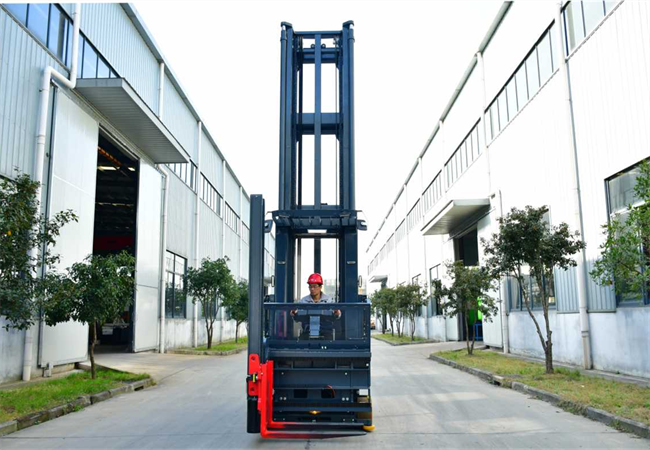

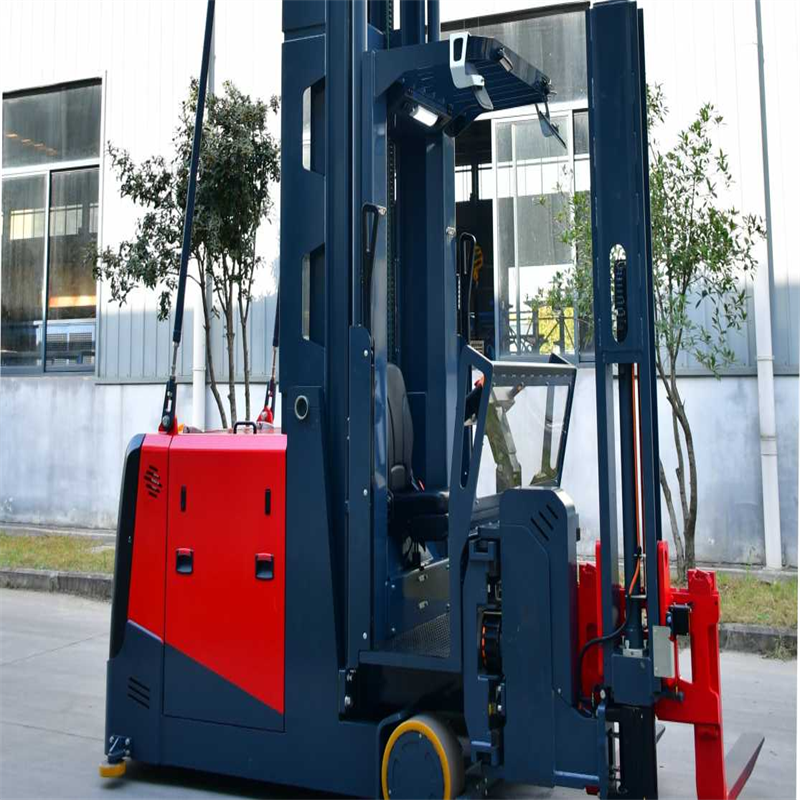

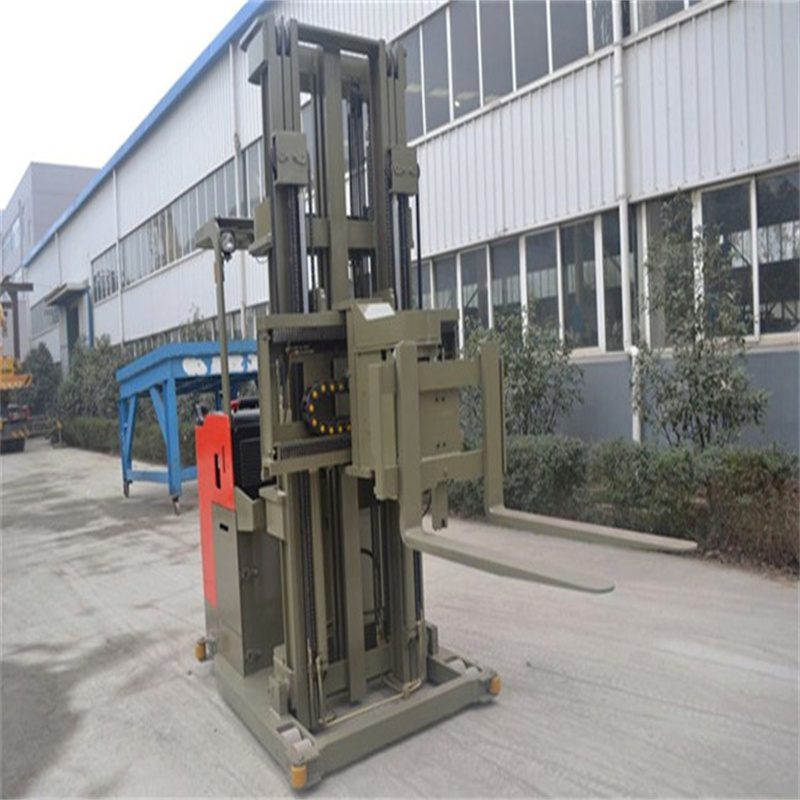

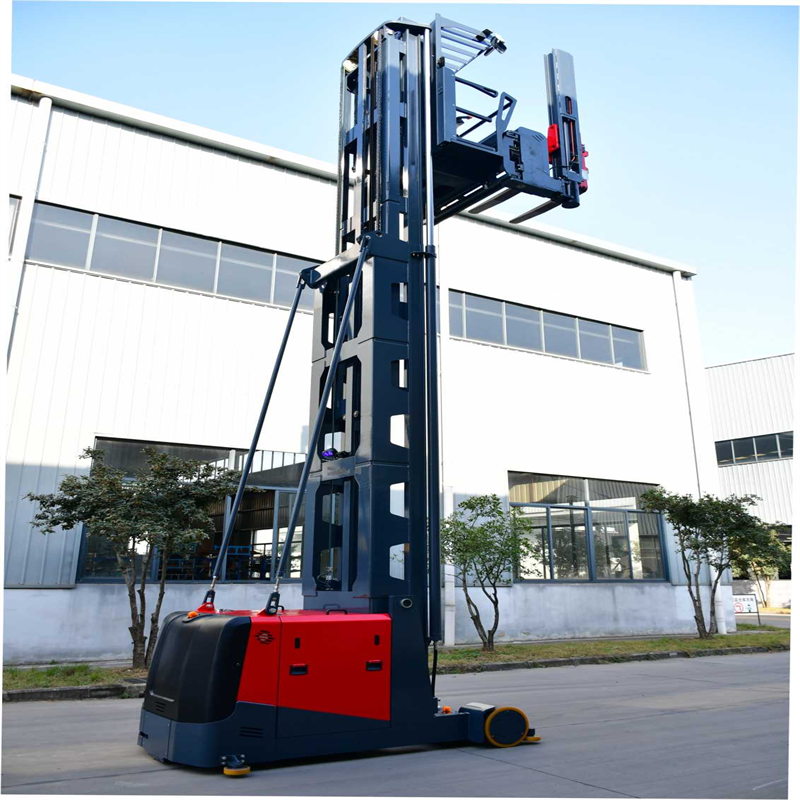

product Display
