1.5 T Electric Telescopic Fork Reach Truck – High-Density Warehouse Solution

Technical Parameters

1.5Ton Electric Reach Forklift Truck With Telescopic Forks Specifications
Model		CQD15
Battery Type		Lead -Acid Battery
Operation Type		Seated Type
Rated Capacity	kg	1500
Tyre mode	mm	Solid PU
Front Wheeling Size	mm	Φ267*114
Driving Wheeling Size	mm	Φ343*135
Mast Tilt Angle		3°/5°
Lifting Height	mm	6000
Mast Lowered Height	mm	2800
Overhead Guard Height	mm	2190
Fork Height	mm	310
First step height	mm	320
Second step height	mm	530
Seat height	mm	975
Secondary pedal height distance from overhead guard	mm	1615
Fork leg clearance	mm	110
Forklift Body floor clearance	mm	80
Overall Length	mm	2500
Forward distance	mm	650
Front overhang	mm	160
Wheel Base	mm	1665
Oveall Width	mm	1270
Tread (Front/Rear)	mm	1158
Fork outside width	mm	260-820
Fork Size	mm	107012240
Aisle width	mm	2975 (1000*1000mm Pallet)
Turning Radius	mm	1945
Driving Speed	km/h	7.5 /8.0
Lifting Speed	mm/s	150/400
Descend Speed	mm/s	350/160
Gradeability (Full load/no load)	%	8% / 15%
Driving motor capacity	kw	6.5
Lifting motor capacity	kw	8.6
Battery Voltage/Capacity	V/AH	48 /300-450ah
Battery Weight	kg	700
Overall Weight	kg	4850
Steering Type		Electronic steering
Parking Brake Type		Electromagnetic brake

FEATURES

1.5t narrow aisle electric warehouse forklift with telescopic forks
Character:
1,Extended Reach Capability for High-Density Storage
With a 1,000 mm fork retractable stroke, the telescopic fork system enables deep pallet access without repositioning the reach truck.
2,Strong 1.5 Ton Capacity with 6m height
The 1,500 kg capacity and 6m height make this reach truck ideal for high-rack warehousing.
3,Advanced American CURTIS Control System
Equipped with a CURTIS electronic controller, this electric reach truck provides intelligent power management and precise operational control.
4,High-Efficiency 48V / 300AH Battery System
Both Supports 48V 400Ah–600Ah batteries, available in lead-acid or high-efficiency lithium configurations.
5,Integrated Safety Systems – EPS & OPS
Safety is enhanced through integrated systems.
6,Enhanced Visibility with Wireless Camera System
The wireless camera and monitor system significantly improves visibility during high-level operations.

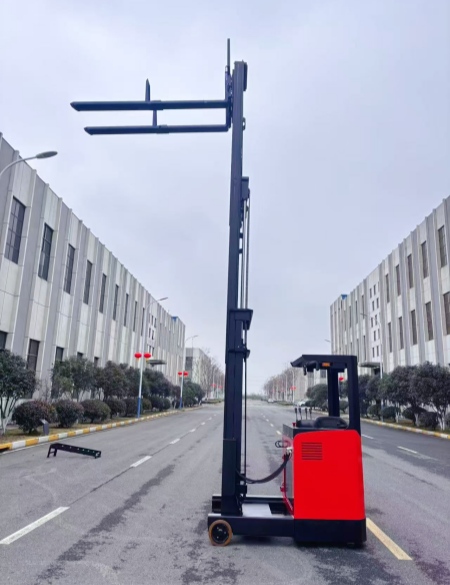

telescopic fork reach truck supplier

Applications

1.5T lifting capacity reach truck 1500kg warehouse forklift reach truck with telescopic fork

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
