Off Road Fork Truck Guide: Choosing the Best 3T 4WD Rough Terrain Forklift

Technical Parameters

Model		FD30RT4
Power Type		Diesel
Rated Capacity	kg	3000
Load Centre	mm	500
Lift Height	mm	3000
Fork Size	mm	122012545
Mast Tilt Angle	Deg	10/12
Front Overhang (Wheel Center to fork face)	mm	684
Ground Clearance (Bottom of mast)	mm	270
Length to face of fork(Without fork)	mm	3260
Overall Width	mm	1835
Mast Lowered Height	mm	2245
Mast Extended Height(With backrest)	mm	4260
Overall Guard Height	mm	2250
Turning Radius(outside)	mm	4380
Min. insecting aisle	mm	3040
Travel(Unloaded/Loaded)	Km/h	25/24
Lifting(Unloaded/Loaded)	mm/s	500/480
Lowing(Unloaded/Loaded)	Mm/s	400/380
Max. Gradeability	%	30
Front tires		405/70-20-14PR
Rear tires		10.0/75-15.3-12PR
Wheel Base	mm	1990
Service Weight	kg	5700
Battery Voltage/Capacity	V/Ah	12/120
Engine Model		4H50TIC
Engine Manufacture		HATZ
Engine Rated output/r.p.m.	Kw/h	54.9/2600
Engine Rated torque/r.p.m.	N·m	240/1600-1900
No. of Cylinder		4
Engine Bore×Stroke	mm	84*88
Engine Displacement	cc	1952
Engine Fuel Tank Capacity	L	80
Transmission Type		Hydraulic
Drive Type		4WD

FEATURES

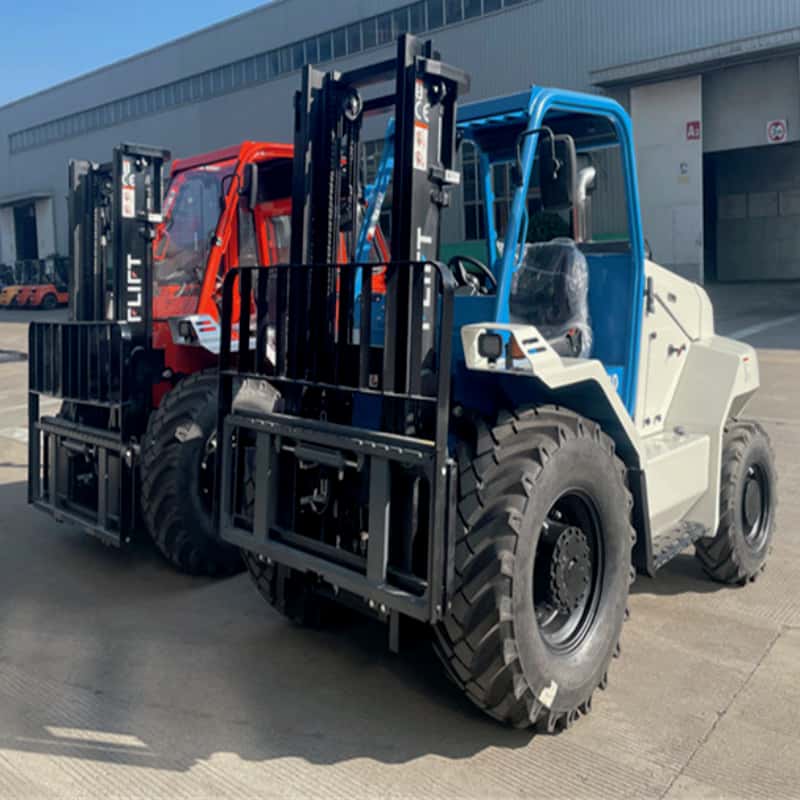

Rough Terrain Forklift Truck
Character:
1.High Strength Overhead Guard, Standard overhead guard and full cabin for options, cabin can equip with heater and air-conditioner. Top cover ceiling adopts high-strength steel plate stamping.
2.High Position Intake and Exhaust System Vertical exhaust with good drainage performance, provide all weather operations.Vertical exhaust effectively prevent ground dust and rain from entering the inlet.
3. Reliable Lifting System, Wide view mast prepare driver perfect view, compare with normal mast’s 10%wider,which provide more efficient and safety.
4.High Eficient Transmission System. Using switch to control between two and 4-wheel drive. Using 2-wheel mode driving on paved roads is more fuel-efficient and environmentally friendly.When driving on muddy roads,the 4-wheel drive mode help the vehicles pass smoothly and safety.
5.Super High Ground Clearance. Front and rear wheels use deep-pattern widening off-road vacuum tires,with strong off-road capability, excellent vehicle stability and shock absorption. Steering axle swings up to 7°, good maintaining grip on rugged mountain or muddy terrain.350mm ground clearance, strong pass ability.

4wd forklift

Applications

4wd rough terrain forklift 4 wheel drive forklift for sale off road forklift for sale

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
