FD35RT2 3.5t Rough Terrain Forklift

Power TypeDiesel

Driving TypeSeated

Rated Capacity3500kg

Lift height 3000mm

Load Centre600mm

We're here to help:Easy ways to get the answers you need.

FD30RT2 Rough Terrain Forklift
It is a compact model produced based on 2WD forklift while with 4 wheel drive system.
Hydraulic 4-wheel drive system makes the forklift work in harsh condition over rough terrain.
The vehicle adopts an electronic gearshift handle and knob-type control,which makes the gear switching operation more convenient.
Two-wheel drive and four-wheel drive only need to be switched by electronic switch.

Technical Parameters

Model



FD30RT2

FD35RT2

Power Type



Diesel

Diesel

Rated Capacity

kg

3000

3500

Load Centre

mm

600

600

Lift Height

mm

3000

3000

Fork Size

mm

1220*125*45

1220*125*45

Mast Tilt Angle

Deg

10/12

10/12

Front Overhang (Wheel Center to fork face)

mm

601

601

Ground Clearance (Bottom of mast)

mm

265/250

265/250

Length to face of fork(Without fork)

mm

3060

3060

Overall Width

mm

1604

1604

Mast Lowered Height

mm

2115

2115

Mast Extended Height(With backrest)

mm

4250

4250

Overall Guard Height

mm

2200

2200

Turning Radius(outside)

mm

2750

2750

Min. insecting aisle

mm

2615

2615

Travel(Unloaded/Loaded)

Km/h

22/22

22/22

Lifting(Unloaded/Loaded)

mm/s

480/500

480/450

Lowing(Unloaded/Loaded)

Mm/s

400/500

400/500

Max. Gradeability

%

16

16

Front tires



14-17.5-14PR

14-17.5-14PR

Rear tires



27*10-12-12PR

27*10-12-12PR

Wheel Base

mm

1835

1835

Service Weight

kg

4800

5150

Battery Voltage/Capacity

V/Ah

12/90

12/90

Engine Model



4TNE98-BQFLC

4TNE98-BQFLC

Engine Manufacture



YANMAR

YANMAR

Engine Rated output/r.p.m.

Kw/h

42.1/2300

42.1/2300

Engine Rated torque/r.p.m.

N·m

186-206/1700

186-206/1700

No. of Cylinder



4

4

Engine Bore×Stroke

mm

98*110

98*110

Engine Displacement

cc

3318

3318

Engine Fuel Tank Capacity

L

60

60

Transmission Type



Hydraulic

Hydraulic

Drive Type



2WD

2WD

Product Feature

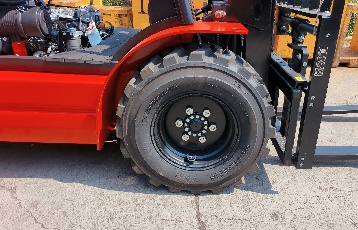

High Quality Tyres.
Industrial tyres with a wide footprint giving it greater stability and lift capacity
in rough work environments.


100%Differential Lock (
4WD)

Power shift transmission with jaw type 100% different lock provides ultimate traction
during inclement weather conditions and rough operating surfaces.

Floating System.
A superior full floating overhead guard is installed with rubber damping instead of
the traditional rigid design.
This greatly reduces machine vibration and offers a smoother ride over rough terrain
and re
duces operator fatigue.

Wide-view Mast.

Wide-view mast provides excellent through-the-mast visibility
improving the work efficiency and
allowing safe operation of the forklift.

High Ground Clearance.

Offer greater maneuverability and keep the machine moving
in the roughest of applications.






YANMAR 4TNE98.

Rated output:42.1kw/2300rpm.

Rated torque:196.3n.m/1700rpm.

Our FLIFT forklift also provide the customized service, such as the closed cabin
with air conditionerand heater device. Humanized design ensure the good
driving experience, high -efficiency performance.



  Optional attachment.
Fork Positioner and Side -shifter











We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
