Game-Changing Innovations In 2.5T 4WD Rough Terrain Forklift Technology

Technical Parameters

Technial parameters

Model		FD25RT-C4
Power Type		Diesel
Rated Capacity	kg	2500
Load Centre	mm	500
Lift Height	mm	3000
Fork Size	mm	1220x120x40
Mast Tilt Angle	Deg	10/12
Front Overhang (Wheel Center to fork face)	mm	580
Ground Clearance (Bottom of mast)	mm	270
Length to face of fork(Without fork)	mm	3110
Overall Width	mm	1560
Mast Lowered Height	mm	2235
Mast Extended Height(With backrest)	mm	4224
Overall Guard Height	mm	2260
Turning Radius(outside)	mm	3200
Min. insecting aisle	mm	2780
Max.Travel Speed	Km/h	21/22
Lifting(Unloaded/Loaded)	mm/s	530/560
Lowing(Unloaded/Loaded)	Mm/s	≤600/≥300
Max. Gradeability	%	30
Engine Brand		Japanese Yanmar
Rated output/r.p.m.	kw	42.1/2300
Rated torque/r.p.m.	n.m	196.3/1700

Product Feature

100%Differential Lock (4WD)
provides maximum traction by ensuring equal power is delivered to all wheels,
allowing the vehicle to drive through slippery, uneven,
or off-road conditions without wheel slippage.
during inclement weather conditions and rough operating surfaces.

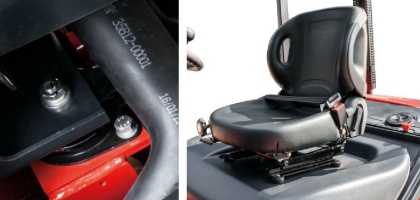

Floating System.
A superior full floating overhead guard is installed with rubber damping instead of
the traditional rigid design.
This greatly reduces machine vibration and offers a smoother ride over rough terrain
and reduces operator fatigue.

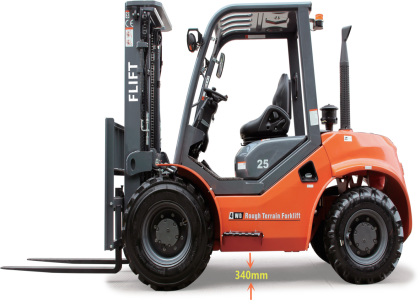

High Ground Clearance.
Offer greater maneuverability and keep the machine moving
in the roughest of applications.

Our FLIFT forklift also provide the customized service, such as the closed cabin
with air conditionerand heater device. Humanized design ensure the good
driving experience, high -efficiency performance.

Optional attachment.
Fork Positioner and Side -shifter

Applications

off road forklift outdoor forklift

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
