3.5t-4ton 4 wheel drive forklift

Lift Height3000mm-5000mm

Drive Model4WD

Max.Gradeability30%

Engine brand Yanmar/Cummins

Engine Emission StandardEPA-Tier-4

We're here to help:Easy ways to get the answers you need.

SEND E-MAIL GET PRICE

share with :

Product Introduction
Technical Parameters
Features
Applications
After-sales Service
Inquiry

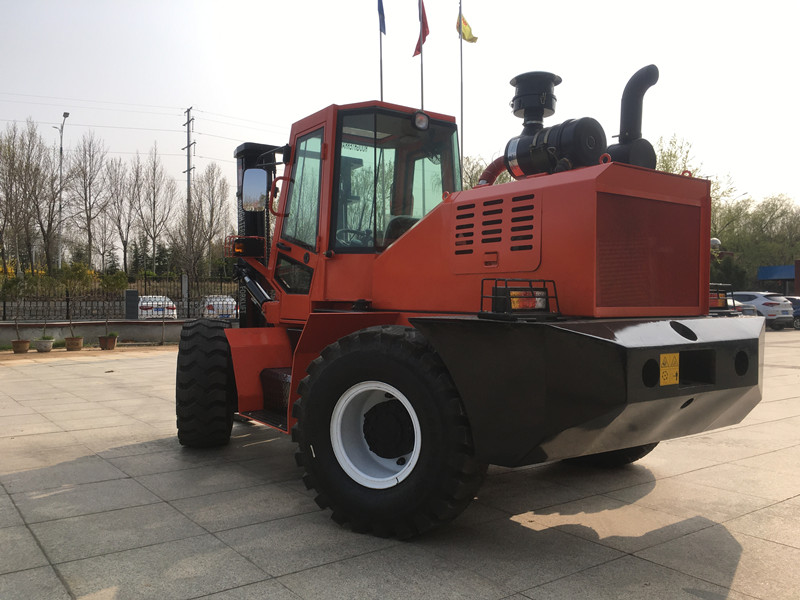

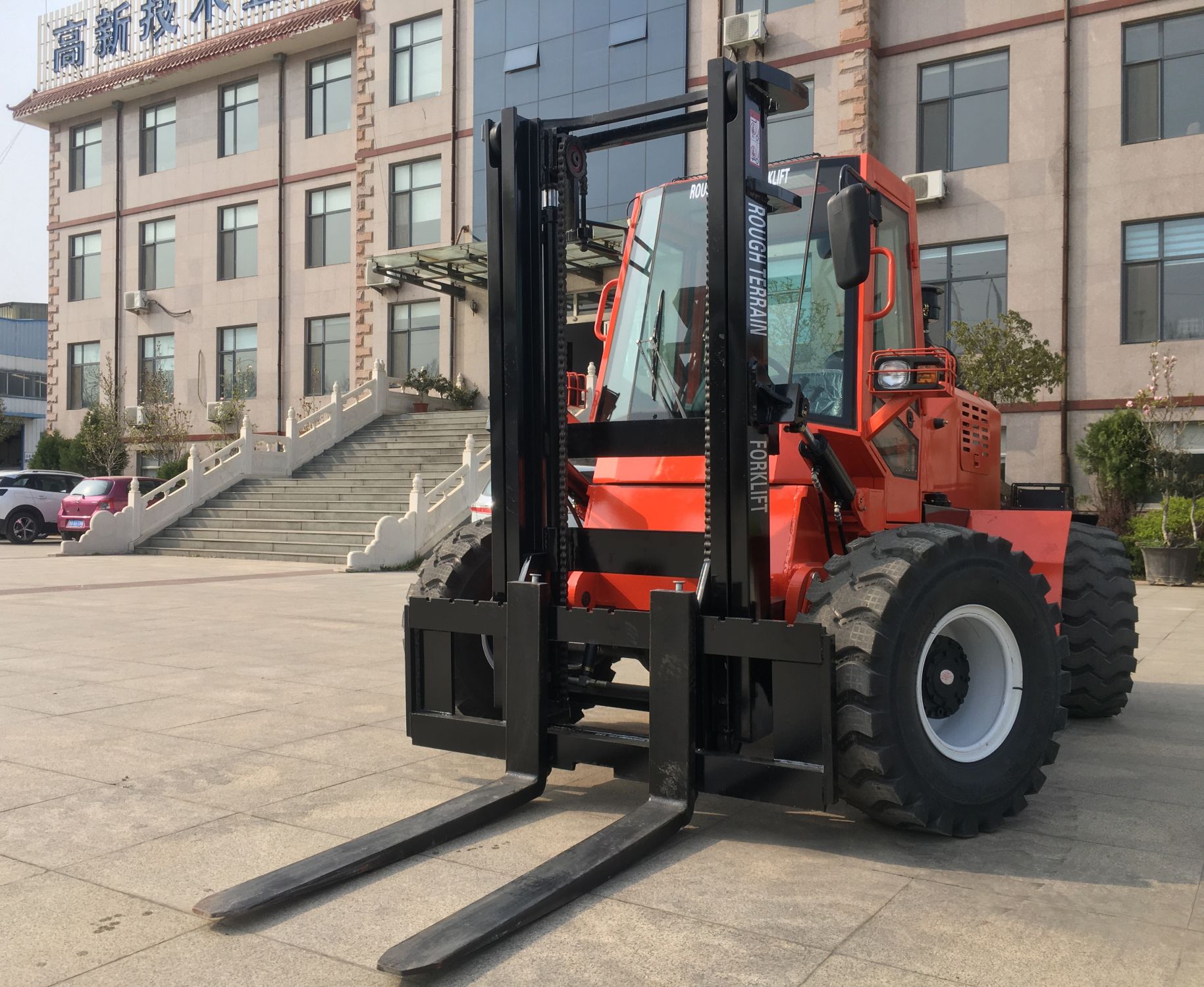

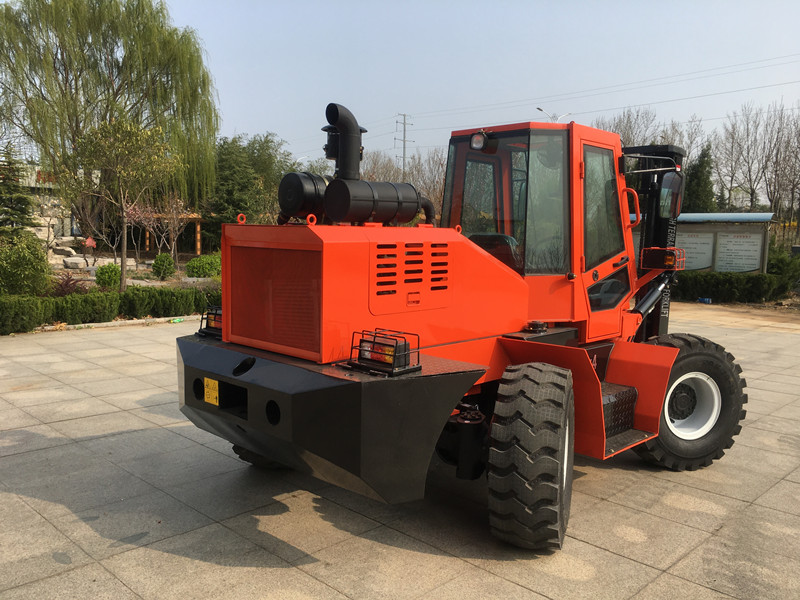

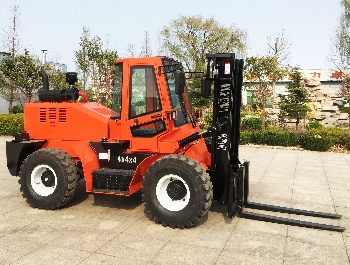

FLIFT 4-wheel Steer Rough Terrain Forklift: FLIFT Brand 4 ton all rough terrain forklift truck with 4 wheel steering. We have just launched our newest FLIFT brand 4 wd rough terrain forklift which equipped the high-technology 4 wheel steering. The four wheel steered rough terrain vehicle with a chasis that can change shape. This is our patent production which had been researching for more than two years by our tech-team.

4wd forklift for sale

Technical Parameters

Model	W40
Rated Load	4000kg
Lifting Height	3000
Load Center	500
Tyires	20.5/70-16
Dead Weight	5100
Battery Voltage/Capacity	24V(80AHX2)
Standard Engine	Chinese 73kw
Transmission	Automatic 2F/2R
Max. Gradeability	30
Fork Size	1520125050
Length to Fork Face	3700
Maximum Width of Machine	2100
Height of Overhead Ground	2250
Axle Base	1980
Lifting Height	3000
Height of Mast Top	3720
Mast Tilt Total	12/22
Ground Clearance	280
Distance From Front Axle to Fork Face	740
Height of Operators Seat	1100
Fork Carriage Width	1780
Duplex Mast View Width	690
Mast Width	1055

►Efficiency and Cost of Ownership

Reducing cost of ownership, saves you time,fuel, manpower and yard loading space.
The all wheel steering and all wheel drive forklift potential to replace saveal machines.
Which means when you get all wheel steering forklift you don't need as.
Many counterbalance weight forklifts in your.

►Operational Efficiency

Thanks to the four wheel steering forklift, you can load and unload in a Narrow space.
With three type of steering way, four wheel steering, crab streering and eront wheel steering.
All wheel drive system allows you to cope with all working conditions.

►YANMAR&CUMMINS in Option

Yanmar Novel CAE technologies were used to
obtain the best muffler volumes and sound-proofing materials.
It has made forklift noise more lower. Indirect Injection engine, clean exhaust.
Can meet the requirements of European III&EPA III emission regulations.

►High torque transmission:Max. drive speed 23km/H

►High speed transmission:Max. drive speed 33km/H

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
