Why Off Road Forklifts Are Revolutionizing Construction Sites Worldwide

Technical Parameters

Model		FD30RT2
Power Type		Diesel
Rated Capacity	kg	3000
Load Centre	mm	600
Lift Height	mm	3000
Fork Size	mm	122012545
Mast Tilt Angle	Deg	10/12
Front Overhang (Wheel Center to fork face)	mm	601
Ground Clearance (Bottom of mast)	mm	265/250
Length to face of fork(Without fork)	mm	3060
Overall Width	mm	1604
Mast Lowered Height	mm	2115
Mast Extended Height(With backrest)	mm	4250
Overall Guard Height	mm	2200
Turning Radius(outside)	mm	2750
Min. insecting aisle	mm	2615
Travel(Unloaded/Loaded)	Km/h	22/22
Lifting(Unloaded/Loaded)	mm/s	480/500
Lowing(Unloaded/Loaded)	Mm/s	400/500
Max. Gradeability	%	16
Front tires		14-17.5-14PR
Rear tires		27*10-12-12PR
Wheel Base	mm	1835
Service Weight	kg	4800
Battery Voltage/Capacity	V/Ah	12/90
Engine Model		4TNE98-BQFLC
Engine Manufacture		YANMAR
Engine Rated output/r.p.m.	Kw/h	42.1/2300
Engine Rated torque/r.p.m.	N·m	186-206/1700
No. of Cylinder		4
Engine Bore×Stroke	mm	98*110
Engine Displacement	cc	3318
Engine Fuel Tank Capacity	L	60
Transmission Type		Hydraulic
Drive Type		2WD

FEATURES

3.0T- 3.5T ROUGH TERRAIN DIESEL FORKLIFTS
Character:
1.Strong power system,optional YANMAR,CUMMINS,ISUZU engine
2.A wide-view mast design improves forward visibility, enhancing safety and efficiency during lifting, stacking.
3.Fuel Efficiency,With only two driven wheels,they consume less fuel (or energy) than 4WD models, reducing operating costs over time.
4.Strong Off-Road Capability,Equipped with large pneumatic tires, high ground clearance.2WD rough terrain forklifts can still handle construction sites, farms, and uneven ground effectively.
5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.Better Maneuverability, On semi-rough terrain such as gravel yards, warehouses with outdoor areas, or paved sites, 2WD forklift offer smoother turning.

7000lb 2WD rough terrain forklifts

Applications

4x4 forklift for sale 7000lb 2WD rough terrain forklifts 2WD rough terrain forklift diesel

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

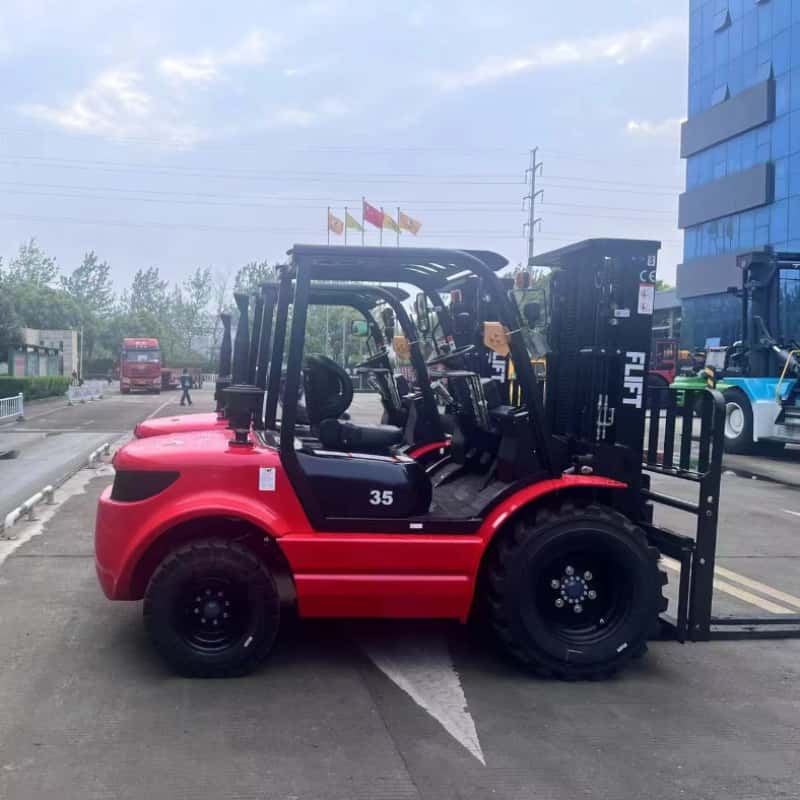

3T Diesel Rough Terrain 2WD Forklift
