off road all rough terrain forklift manufacturer

Technical Parameters

General

1

Model

FD35RT4

2

Brand

FLIFT

3

Power Type

Diesel

4

Rated Capacity

kg

3500

5

Load Centre

mm

500

Characteristic & Dimension

6

Lift Height

mm

3000

7

Fork Size

L×W×T

mm

1070*125*45

8

Mast Tilt Angle

F/R

Deg

10°/12°

9

Front Overhang (Wheel Center to fork face)

mm

705

10

Ground Clearance (Bottom of chassis)

340

Ground Clearance (Bottom of mast)

mm

135

11

Overall
Dimension

Length to face of fork (Without fork)

mm

3252

12

Overall Width

mm

1850

13

Mast Lowered Height

mm

2260

14

Mast Extended Height(With backrest)

mm

4245

15

Overall Guard Height

mm

2250

16

Turning Radius(outside)

mm

4380

17

Min. insecting aisle

mm

3040

Performance

18

Speed

Travel(Unloaded/Loaded)

km/h

25/24

19

Lifting(Unloaded/Loaded)

mm/s

500/480

20

Lowing(Unloaded/Loaded)

mm/s

400/380

21

Max. Gradeability

%

30

Chassis

22

Vacuum
Tires

Front

405/70-20-14PR

Rear

10.0/75-15.3-12PR

23

Tread

Front

1410

Rear

1484

24

Wheel Base

mm

1990

25

Service Weight

kg

5900

Power and transmission

26

Battery

Voltage/Capacity

V/Ah

12V/110AH

27

Engine

Manufacturer

Yanmar 4TNE98 / CUMMINS QSF2.8

28

Rated output/ r.p.m

Kw

42.1/2300

Rated torque

N.M

186-206/1700

Fuel tank capacity

L

60

Transmission

Type

Hydraulic

29

Service brake

Wet multi-plate front and rear axle brake

30

Parking brake

Caliper mechanical brake

31

Differential lock

Front and rear axle limited-slip

Drive wheels

Can Switch to 2WD/4WD

FEATURES

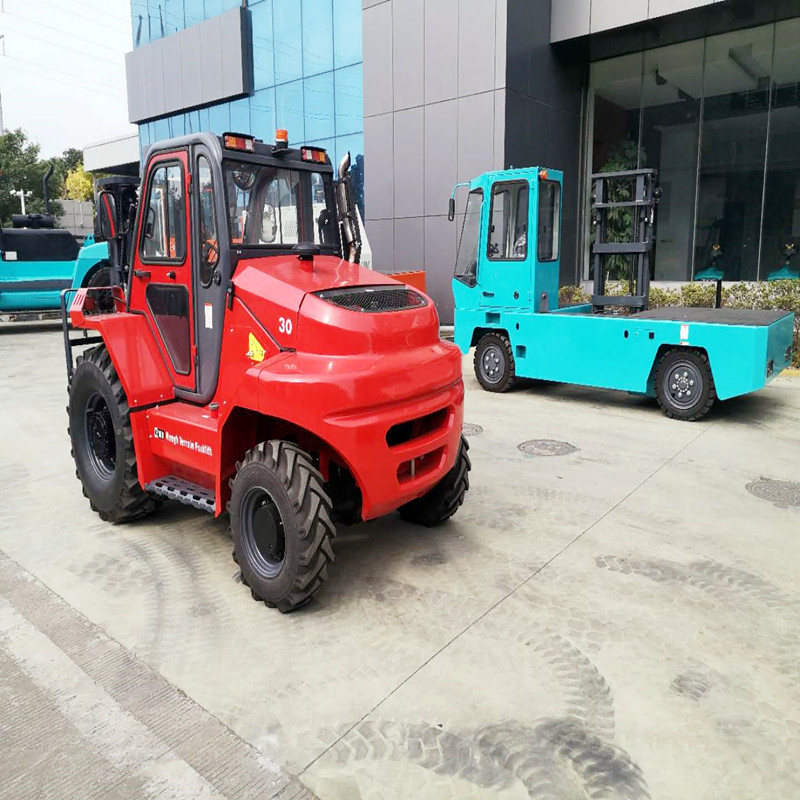

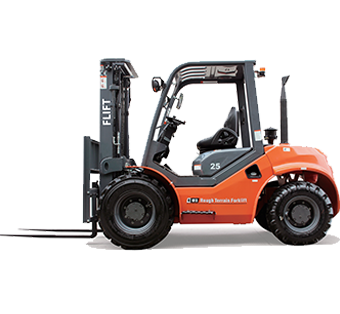

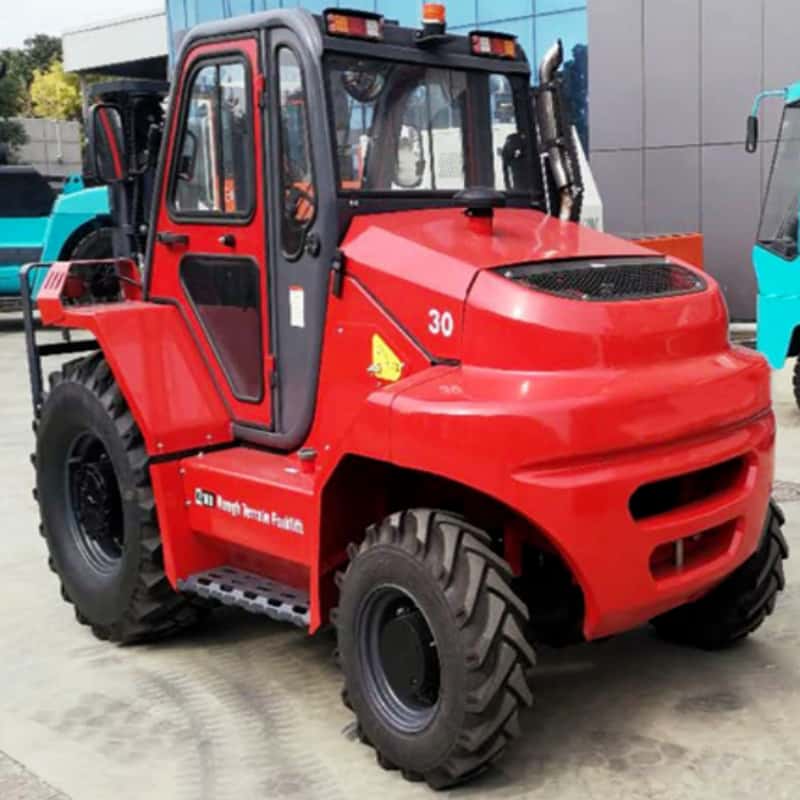

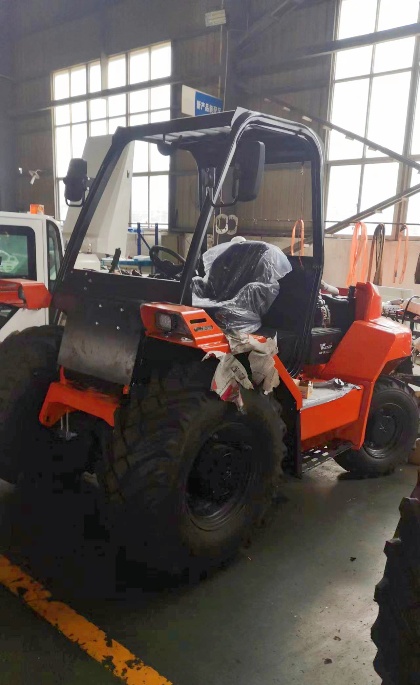

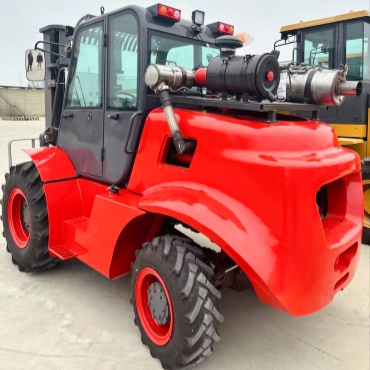

3.5T 4WD Rough Terrain Forklift Truck
Character:
1.High Strength Overhead Guard, Standard overhead guard and full cabin for options, cabin can equip with heater and air-conditioner. Top cover ceiling adopts high-strength steel plate stamping.

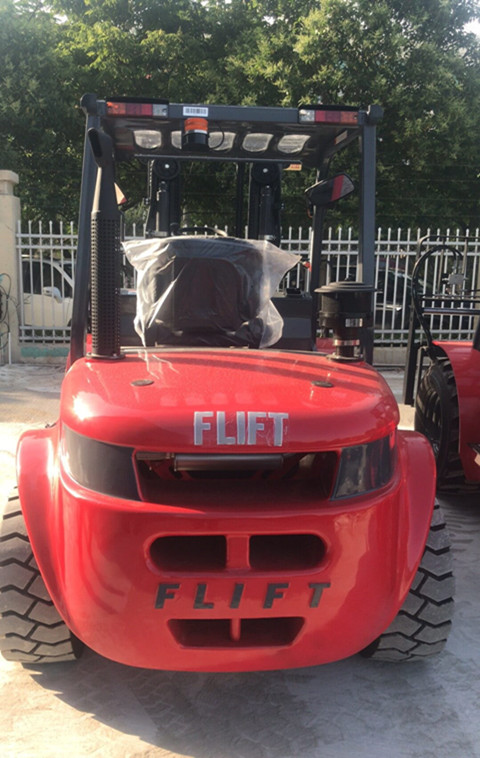

2.High Position Intake and Exhaust System Vertical exhaust with good drainage performance, provide all weather operations.Vertical exhaust effectively prevent ground dust and rain from entering the inlet.

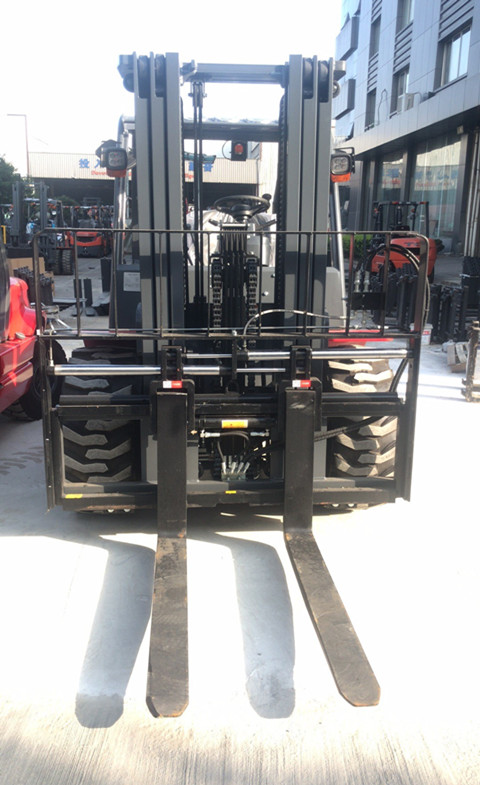

3.Reliable Lifting System, Wide view mast prepare driver perfect view, compare with normal mast’s 10%wider,which provide more efficient and safety.
4.High Eficient Transmission System. Using switch to control between two and 4-wheel drive. Using 2-wheel mode driving on paved roads is more fuel-efficient and environmentally friendly.When driving on muddy roads,the 4-wheel drive mode help the vehicles pass smoothly and safety.
5.Super High Ground Clearance. Front and rear wheels use deep-pattern widening off-road vacuum tires,with strong off-road capability, excellent vehicle stability and shock absorption. Steering axle swings up to 7°, good maintaining grip on rugged mountain or muddy terrain.350mm ground clearance, strong pass ability.

Applications

4 wheel drive forklift off road forklift outdoor forklift

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
