10–15 Ton Electric Trailer Tug | FLIFT Heavy-Duty Trailer Mover

Technical Parameters

Technical Specifications of FLIFT 10-15ton Pedestrian electric trailer mover
1.2	Model Number		T100	T150
1.3	Power Type		Electric	Electric
1.4	Operating Type		pedestrian	Pedestrian
1.5	Rated Load	Q(kg)	10000	15000
1.6	Lifting Capacity	kg	5000	8000
1.7	Rated Traction Force	F(N)	4000	7000
1.8	Wheelbase	y(mm)	2440	2440
weight
2.1	Weight (including battery)	kg	1000	1200
2.2	Battery weight	kg	272	272
Tire
3.1	Tire type, drive wheel/load-bearing wheel		Solid rubber wheels	Solid rubber wheels
3.2	Drive wheel size (diameter×width)	mm	21*8-9	21*8-9
3.3	Load-bearing wheel size (diameter×width)	mm	Φ400×150	Φ400×150
3.5	Number of drive wheels/load-bearing wheels (×=drive wheels)	mm	2×/1	2×/1
3.6	Front track, drive end	b10（mm）	915	915
Size
4.1	Overall vehicle height	h1（mm）	1330	1330
4.2	Operating handle height	h2（mm）	950/1150	950/1150
4.3	Traction coupler height range	h3（mm）	1200-1400	1200-1400
4.4	Overall vehicle length	l1（mm）	3395	3395
4.5	Overall vehicle width	b1（mm）	1450	1450
4.6	Minimum ground clearance	m1（mm）	100	100
4.7	Turning radius	WA（mm）	2650	2650
Performance parameters
5.1	Travel speed, fully loaded/unloaded	km/h	3.5/5.0	3.5/5.0
5.2	Rated traction force	N	4000	7000
5.3	Maximum traction force	N	6000	9000
5.4	Climbing ability, fully loaded/unloaded	%	3/10	3/10
5.6	Brake type		Electromagnetic	Electromagnetic
Electric motor, power source
6.1	Drive motor rated power S2 60 minutes	KW	3	5
6.2	Charger (external)	V/A	48/30	48/30
6.3	Battery voltage/nominal capacity K20	V/Ah	48/203	48/203
6.4	Air compressor		48V/8KG	48V/8KG
6.5	Hydraulic motor	KW	2.2	2.2
Other data
7.1	Drive control type		AC	AC
7.2	Steering type		Mechanical	Mechanical
7.3	Noise level	dB（A）	<70	<70
7.4	Traction coupling type		Latch	Latch

FEATURES

1. Equipped with a Curtis brand controller, this electric trailer mover delivers smooth acceleration, precise speed control, and stable braking performance. The proven Curtis control system ensures high reliability,long service life,even under continuous heavy-load operation.
2. The 5 kW high-torque drive motor provides strong traction and consistent power output, enabling the trailer mover to handle ramps and slopes with up to 10% gradeability.
3. With a high-capacity 230Ah battery, FLIFT electric trailer mover supports long operating hours on a single charge, improves productivity.
4. Mechanical steering system offers direct,responsive handling.Compared with complex electronic steering systems,mechanical steering provides greater durability,lower operating costs.
5. Fitted with standard solid rubber tires, the FLIFT pedestrian trailer mover ensures excellent stability, wear resistance, and puncture-free operation.

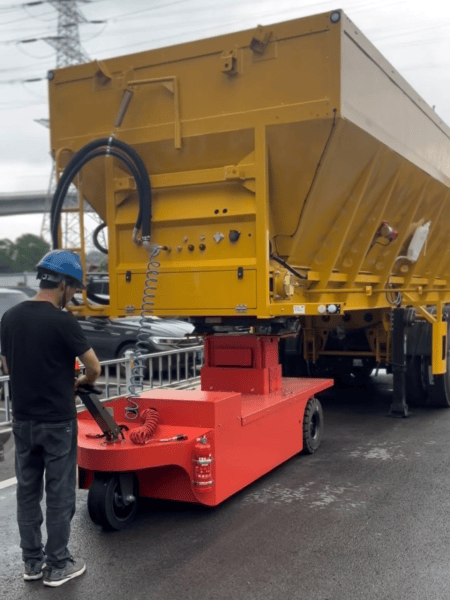

Pedestrian heavy duty electric trailer mover

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
