6600-8800lb Capacity Electric Tow Tractor
Max.Gradeability10% (No Load)
Maximum towed weight3000kg-4000kg
Turning radius1400mm
Drive Motor2.0kw
Battery Capacity24V/210-350AH
We're here to help:Easy ways to get the answers you need.
- 3 Wheel vs 4 Wheel Electric Tow Tractor: Key Differences & Best Applications
- A 3-wheel electric tow tractor offers superior maneuverability in tight warehouse spaces, making it ideal for light-duty indoor operations. In contrast, a 4-wheel tow tractor delivers better stability, load capacity, and performance on uneven or outdoor surfaces. Choosing the right model depends on whether you prioritize agility or heavy-duty stability.
Technical Parameters
|
3-wheel 3ton 4 ton electric tow tractor specifications |
|||
|
Model |
|
QDD30 |
QDD40 |
|
Power type |
|
electric |
electric |
|
Operation mode |
|
Seated |
Seated |
|
Towing weight |
Kg |
3000 |
4000 |
|
Tire type front/rear |
|
Rubber tire |
Rubber tire |
|
Front wheel |
|
3.50-5 |
3.50-5 |
|
Rear wheel |
|
4.00-8 |
4.00-8 |
|
Minimum ground clearance of the entire vehicle |
mm |
95 |
95 |
|
Vehicle length |
mm |
1720 |
1720 |
|
Wheelbase |
mm |
1040 |
1040 |
|
Vehicle width |
mm |
850 |
850 |
|
Track width front/rear |
mm |
-1760 |
-1760 |
|
Turning radius |
mm |
1400 |
1400 |
|
Traveling speed Full load/no load |
Km/h |
4.517 |
4.5/7 |
|
Climbing degree Full load/no load |
% |
3/10 |
3/10 |
|
Drive motor power |
kw |
2.0 |
2.0 |
|
Battery voltage/capacity |
VIAH |
24/210 |
24/350 |
|
Battery weight |
kg |
184 |
210 |
|
Vehicle weight (including battery) |
kg |
800 |
900 |
|
Steering type |
|
EPS |
EPS |
|
Parking brake type |
|
Mechanical/Hydraulic |
|
FEATURES

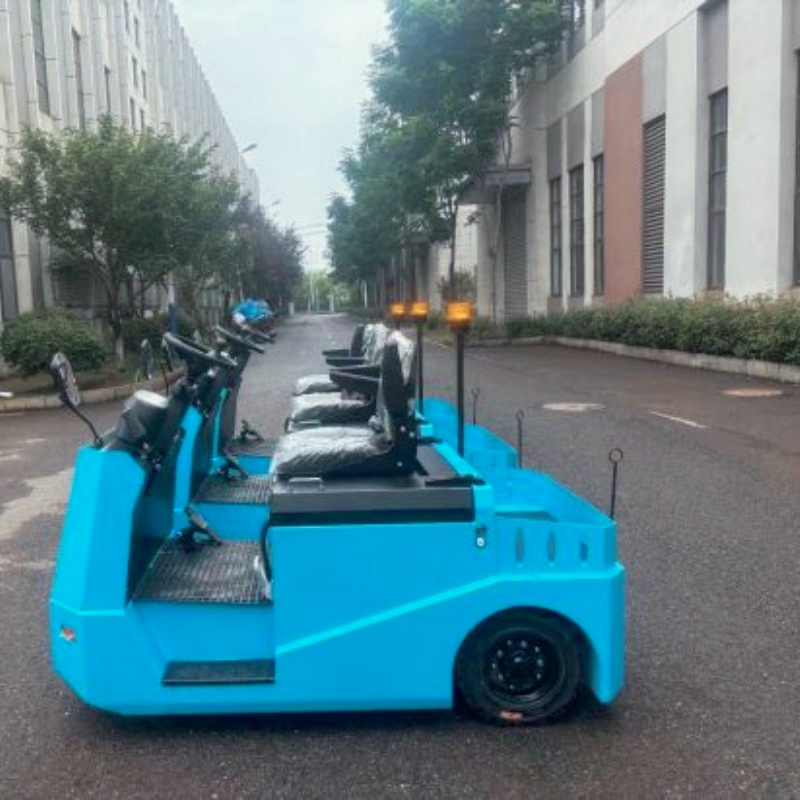

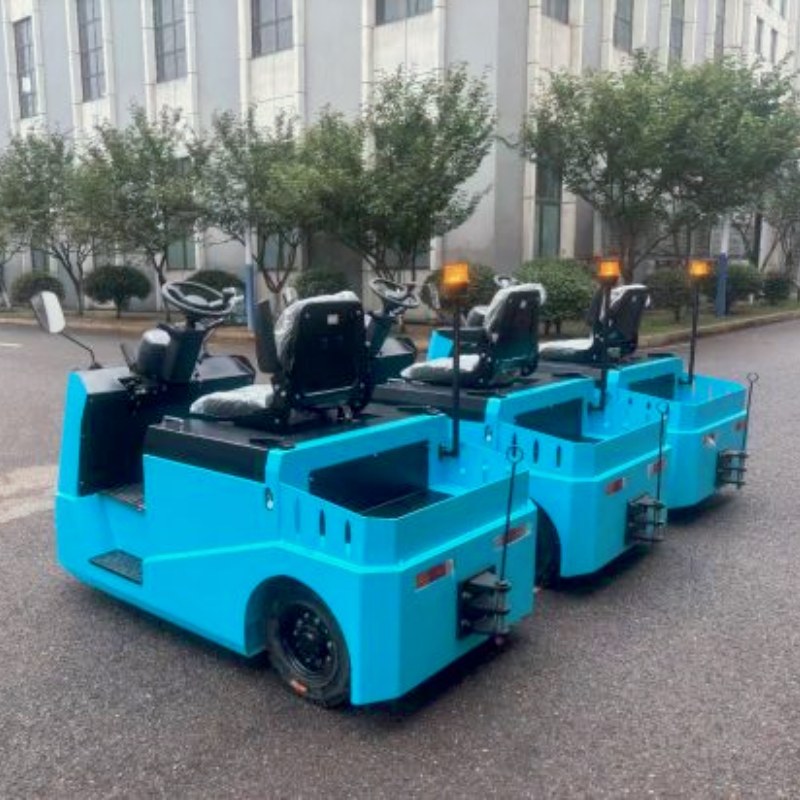

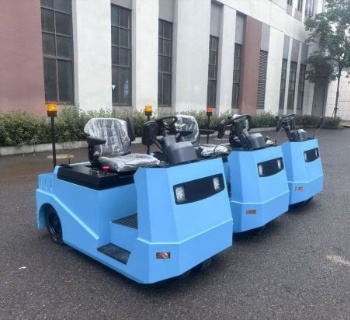

3 wheel seated electric tow tractor
Character:
1.Hydraulic power steering with Bridge drive unit.
2.Smaller turning radius of 1400mm for easy maneuvering.
3.Strong climbing ability with 10% gradeability and Emergency brake switch.
4.Equip with high quality Curtis brand controller and AC drive motor.
5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.Equipped with standard 350Ah high-capacity battery for longer operation.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
