"Heavy Duty Industrial Tow Tractors | Large Electric Tow Tractor Solutions for Maximum Efficiency"

Technical Parameters

10ton-15ton Heavy Duty Electric Tow Tractor Specification
Model		QDD100	QDD120	QDD150
Power type		Electric	Electric	Electric
Operation mode		Seated	Seated	Seated
Towing weight	kg	10000	12000	15000
Tire type front/rear		Solid Rubber tire	Solid Rubber tire	Solid Rubber tire
Front wheel		500-8	500-8	500-8
Rear wheel		6.50-10	6.50-10	6.50-10
Minimum ground clearance of the entire vehicle	mm	140	140	140
Vehicle length	mm	2390	2390	2390
Wheelbase	mm	1531	1531	1531
Vehicle width	mm	1200	1200	1200
Track width front/rear	mm	932/960	932/960	932/960
Turning radius	mm	2260	2260	2260
Traveling speed Full load/no load	Km/h	7/11	7/11	7/11
Climbing degree Full load/no load	%	5/15	5/15	5/15
Drive motor power	kw	9.0	11.0	13.0
Battery voltage/capacity	V/AH	48/400	48/400	48/400
Battery weight	kg	650	650	650
Vehicle weight (Including battery)	kg	2860	2860	2860
Steering type		EPS	EPS	EPS
Parking brake type		Mechanical/Hydraulic

FEATURES

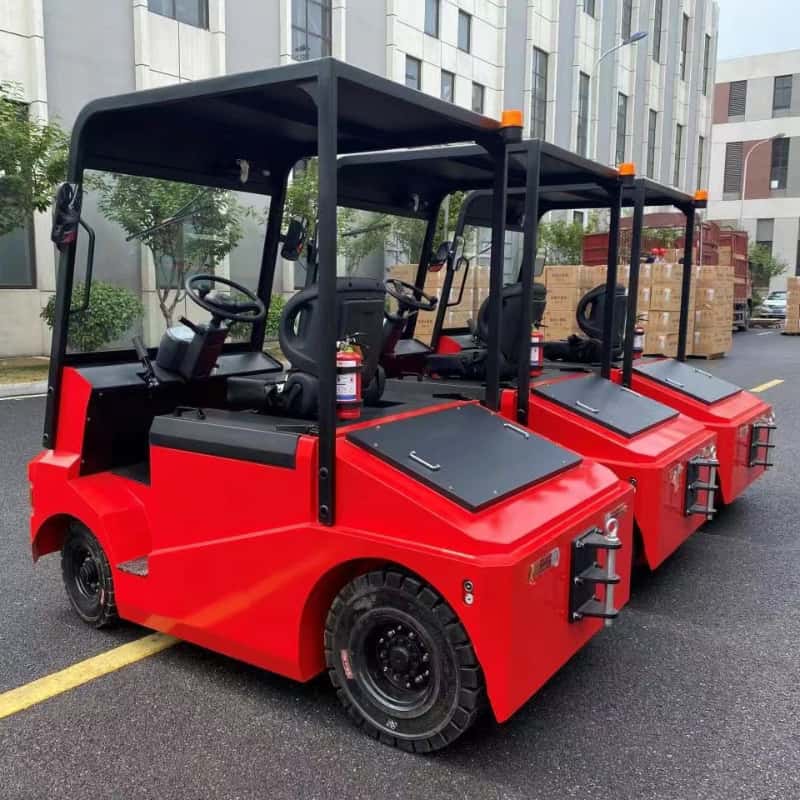

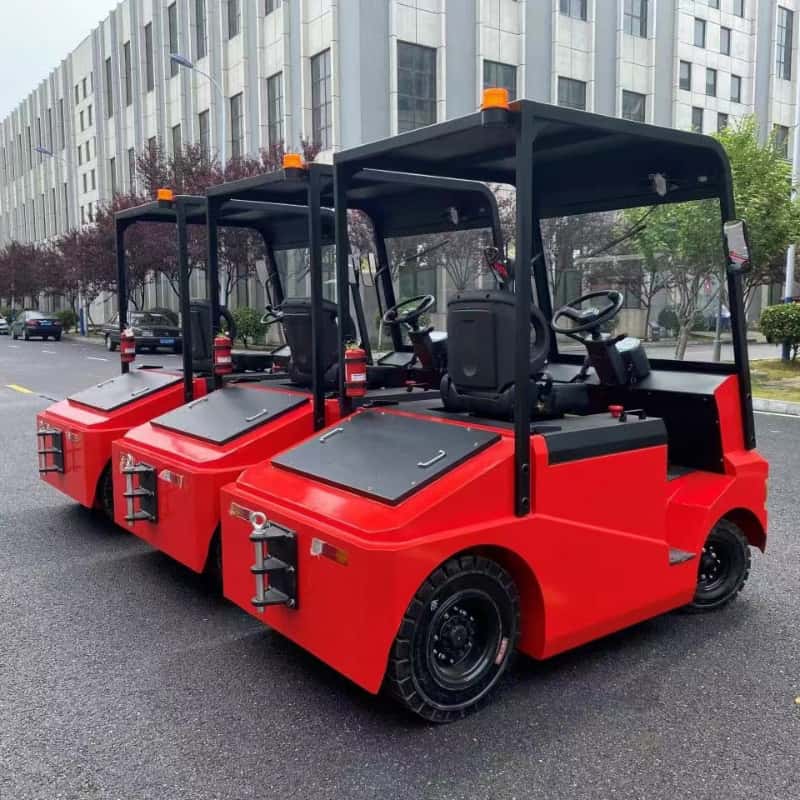

Heavy Duty Electric Tow Tractor 10-15Tonne
Character:

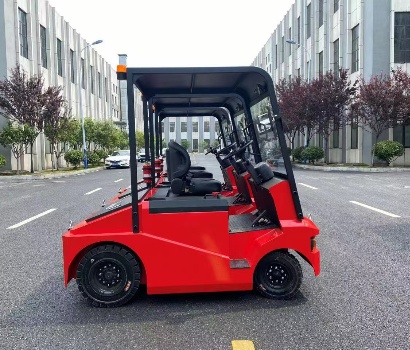

1.Our heavy duty tugger, equipped with hydraulic power steering and AC Motor and Emergency brake switch.
2.Smaller turning radius of 2260mm for easy maneuvering.
3.Strong climbing ability with 15% gradeability..
4.Equip with high quality Curtis brand controller,and controller multiple automatic protection system.
5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.Equipped with standard 400Ah high-capacity battery for longer operation.

Towing Tractors

Applications

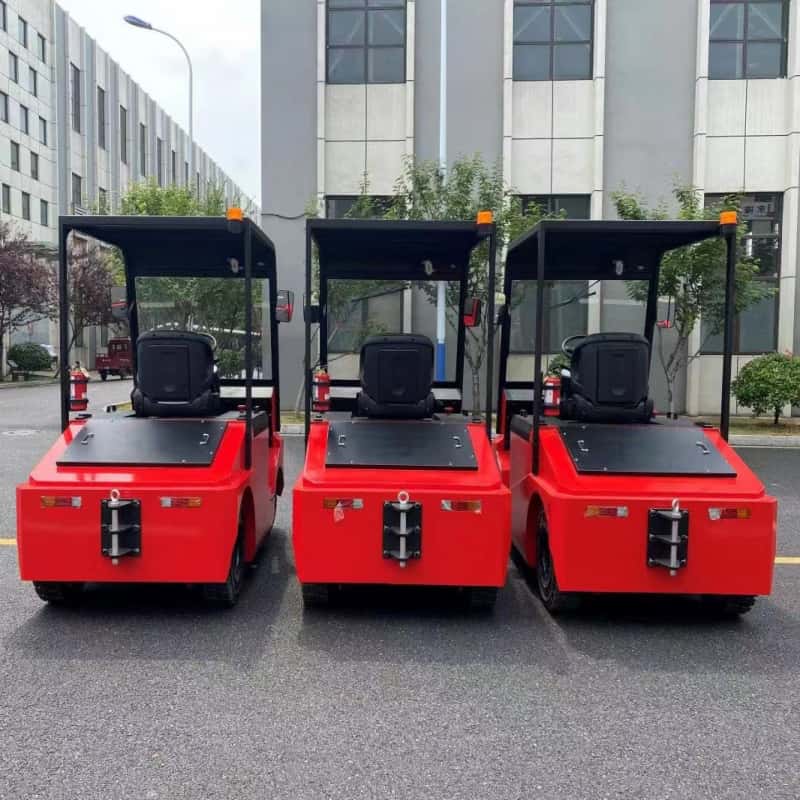

15t electric tow tractor 15t Industrial Tow Tug 15t electric tow tractor price

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

10ton-15ton heavy duty electric tow tractor
