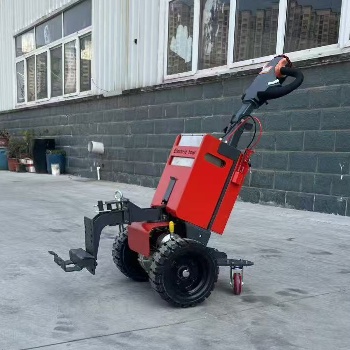

1.0ton-1.5ton Electric Walkie Tow Tractor
Load Capacity1000kg-1500kg
Rated pulling force300N-500N
Turning radius815mm-850mm
Battery Capapcity24V/61AH
Gradeability (laden)5%
We're here to help:Easy ways to get the answers you need.
- Top Industries That Benefit from Pedestrian Tow Tugs
- Pedestrian tow tugs are powerful machines that bring efficiency and safety across many industries. Warehouse and logistics applications find them especially helpful, helping with moving pallets and roll cages in tight spaces efficiently. Manufacturing plants use them to safely transfer products between lines.Retailers and supermarkets use electric tow tugs for quickly restocking stock cages during restocking cycles, while airports take advantage of their maneuverability in towing baggage carts and cargo dollies. Food service organizations rely heavily on them as a reliable way of transporting heavy loads like crates or kegs while adhering to hygiene standards.
Technical Parameters
|
1.0T/1.5T Pedestrian Electric Tow Tug Specification |
|||||
|
Characteristic |
|
||||
|
1.1 |
B r a n d |
|
FLIFT |
FLIFT |
|
|
1.2 |
Model |
|
T10 |
T15 |
|
|
1.3 |
Power supply |
|
Electric |
Electric |
|
|
1.4 |
Operating type |
|
Walking style |
Walking style |
|
|
1.5 |
Max traction weight |
Q(kg) |
1000 |
1500 |
|
|
1.6 |
Rated pulling force |
F(N) |
300 |
500 |
|
|
1.7 |
Wheelbase |
y(mm) |
283 |
298 |
|
|
W e i g h t |
|
||||
|
2.1 |
Truck weight(with battery) |
kg |
120 |
125 |
|
|
2.2 |
Battery weight |
kg |
40 |
40 |
|
|
Tyre |
|
||||
|
3.1 |
Tire type,Drive wheel/Supporting wheel |
|
PU Rubber/PU |
PU Rubber/PU |
|
|
3.2 |
Sizes of drive wheel(diameter×width) |
mm |
2×φ250×95 |
2×φ280×127 |
|
|
3.3 |
Sizes of bearing wheel(diameterxwidth) |
mm |
2×100×32 |
2×φ100×32 |
|
|
3.5 |
Drive wheel/Supporting wheel number(x=Drive wheel) |
mm |
2×/2 |
2×/2 |
|
|
3.6 |
Front gauge |
b10(mm) |
465 |
529 |
|
|
3.7 |
Rear track |
b11(mm) |
300 |
300 |
|
|
Dimensions |
|
||||
|
4.1 |
Overall height |
h1(mm) |
920 |
920 |
|
|
4.2 |
Height of tiller in drive position |
h2(mm) |
800-900 |
800-900 |
|
|
4.3 |
Hook height |
h3(mm) |
183/243/303 |
183/243/303 |
|
|
4.4 |
Overall length |
1(mm) |
1050 |
1050 |
|
|
4.5 |
Overall width |
b1(mm) |
560 |
624 |
|
|
4.6 |
Ground clearance |
m1(mm) |
100 |
100 |
|
|
4.7 |
Turning radius |
WA(mm) |
815 |
850 |
|
|
Performance |
|
||||
|
5.1 |
Drive speed load/unload |
km/h |
3~5 |
3~5 |
|
|
5.2 |
Rated pulling force |
N |
300 |
500 |
|
|
5.3 |
Max pulling force |
N |
500 |
750 |
|
|
5.4 |
Max gradeability load/unload |
% |
5 |
5 |
|
|
5.6 |
Brake type |
|
Electromagnetic |
Electromagnetic |
|
|
Motor |
|
||||
|
6.1 |
Drive motor rating S260min |
kw |
0.4 |
0.8 |
|
|
6.2 |
Charger(external) |
V/A |
24/10 |
24/10 |
|
|
6.3 |
Battery voltage/nominal capacity |
V/Ah |
2×12/61 |
2×12/61 |
|
|
6.4 |
Battery weight |
kg |
40 |
40 |
|
|
Others |
|
||||
|
7.1 |
Type of drive control |
|
DC |
DC |
|
|
7.2 |
Steering type |
|
Mechanics |
Mechanics |
|
|
7.3 |
Noise level |
dB(A) |
<70 |
<70 |
|
|
7.4 |
Type of trailer coupling |
|
Latch |
Latch |
|
|
|
|
||||
FEATURES
1.0t-1.5T Electric Walkie Tugger
Character:
1.Compact body, easy and flexible operation.
2.Infinitely adjustable speed system.
3.Emergency braking function.
4.Electromagnetic brake with high torque.
5.Maintenance-free battery.
6.Optional Solid rubber tires and Warning light.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
