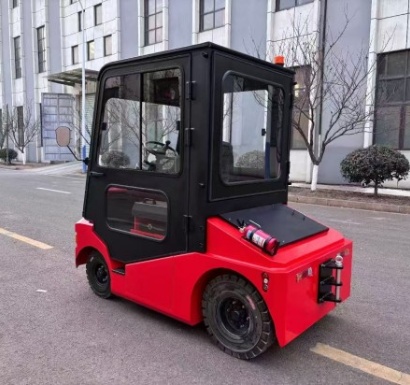

6ton-8ton seated electric tow tractor
Controller Brand America Curtis
Maximum towed weight6000kg-8000kg
Turning radius1525mm
Max.Gradeability12% (No load)
Battery Capacity48V/300AH
We're here to help:Easy ways to get the answers you need.
- How much weight can a heavy-duty tow tractor pull?
- Towing capacities vary based on model. Standard towing capacities for most tractor/trailer combinations range between 6-ton and 8-ton capacities; some more specialized tractors with modular trailers may even have capacities greater than this range for moving large machinery such as buses or construction equipment. Before purchasing, always verify its rated capacity against your load requirements to ensure compatibility.
Technical Parameters
|
6ton-8ton Heavy Duty Tow Tractor Specification |
|||
|
Model |
|
QDD60 |
QDD80 |
|
Power type |
|
electric |
electric |
|
Operation mode |
|
Seated |
Seated |
|
Towing weight |
kg |
6000 |
8000 |
|
Tire type front/rear |
|
Rubber tire |
Rubber tire |
|
Front wheel |
|
3.50-5 |
3.50-5 |
|
Rear wheel |
|
4.00-8 |
4.00-8 |
|
Minimum ground clearance of the entire vehicle |
mm |
95 |
95 |
|
Vehicle length |
mm |
2020 |
2020 |
|
Wheelbase |
mm |
1325 |
1325 |
|
Vehicle width |
mm |
985 |
985 |
|
Track width front/rear |
mm |
-1870 |
-870 |
|
Turning radius |
mm |
1525 |
1525 |
|
Traveling speed Full load/no load |
Km/h |
8/15 |
8/15 |
|
Climbing degree Full load/no load |
% |
6/12 |
6/12 |
|
Drive motor power |
kw |
5.0 |
5.0 |
|
Battery voltage/capacity |
V/AH |
48/280 |
48/300 |
|
Battery weight |
kg |
550 |
550 |
|
Vehicle weight (Including battery) |
kg |
1200 |
1500 |
|
Steering type |
|
EPS |
EPS |
|
Parking brake type |
|
Mechanical/Hydraulic |
|
FEATURES
6-8ton Heavy Duty Tow Tractor
Character:
1.Hydraulic power steering and bridge drive unit, AC drive motor.
2.Smaller turning radius of 1525mm for easy maneuvering.
3.Strong climbing ability with 20% gradeability,and emergency brake switch.
4.Equip with high quality Curtis brand controller,and controller multiple automatic protection system.
5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.Equipped with standard 300Ah high-capacity battery for longer operation.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
