Technical Parameters

2.0T Technical Parameters For Electric Tow Tractor
1.1	Brand		FLIFT
1.2	Model		Z1
1.3	Power supply		Electric
1.4	Operating type		Sitting-on
1.5	Max traction weight	Q(kg)	2000
1.6	Rated pulling force	F(N)	700
1.7	Wheelbase	y(mm)	750
2.1	Truck weight（with battery）	kg	326
2.2	Battery weight	kg	70
3.1	Tire type,Drive wheel/Supporting wheel		Rubber
3.2	Sizes of drive wheel（diameter×width）	mm	2×Φ375×122
3.3	Sizes of bearing wheel（diameter×width）	mm	Φ300×90
3.4	Drive wheel/bearing wheel number （×=Drive wheel）	mm	2×/2
3.5	Front gauge	b10（mm）	588
4.1	Overall height	h1（mm）	1300
4.2	Height of tiller in drive position	h2（mm）	950/1150
4.3	Hook height	h3（mm）	280/330/380
4.4	Overall length	l1（mm）	1260
4.5	Overall width	b1（mm）	710
4.6	Ground clearance	m1（mm）	200
4.7	Turning radius	WA（mm）	920
5.1	Drive speed load/unload	km/h	4-6
5.2	Rated pulling force	N	700
5.3	Max pulling force	N	900
5.4	Max gradeability load/unload	%	5/8
5.6	Brake type		Electromagnetic
6.1	Drive motor rating S2 60min	kw	1.2
6.2	Charger (external)	V/A	24/15
6.3	Battery voltage/nominal capacity	V/Ah	2*12/107
6.4	Battery weight	kg	70
7.1	Type of drive control		DC
7.2	Steering type		Mechanics
7.3	Noise level	dB（A）	<70
7.4	Type of trailer coupling		Latch

FEATURES

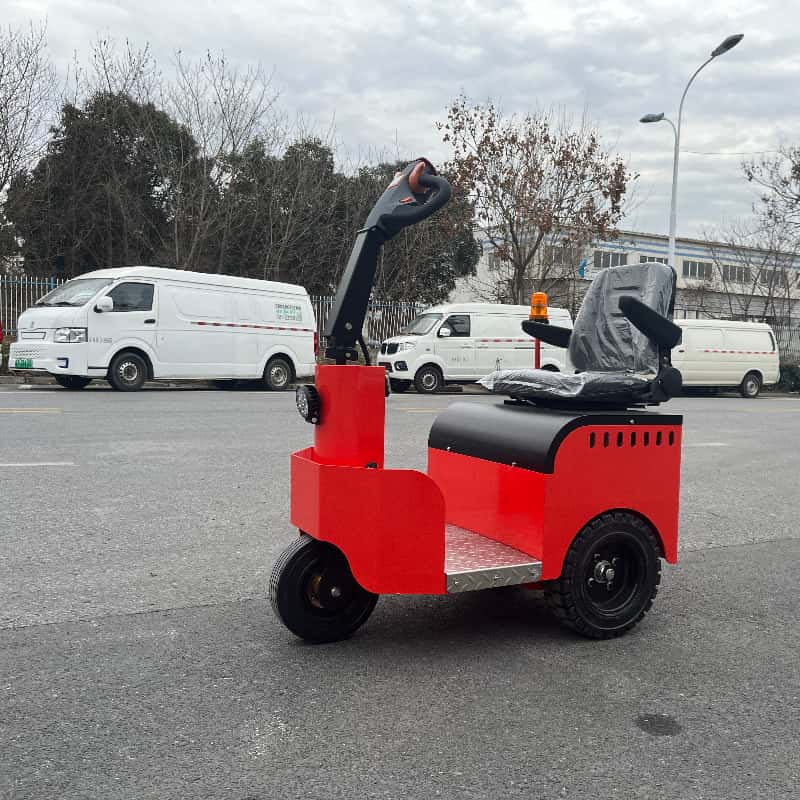

2 Ton Electric Tug Tow Tractor
Character:
1.Zero emissions, eco-friendly.
2.Ultra Small turning radius of 920mm for easy maneuvering.
3.Strong climbing ability with 8% gradeability..
4.Equip with high quality Curtis brand controller.

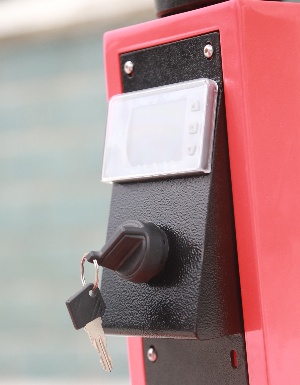

5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.quipped with standard 107Ah high-capacity battery for longer operation.

Applications

compact electric tow tractor Cargo Tow Tractor electric tow tractor 3ton

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
