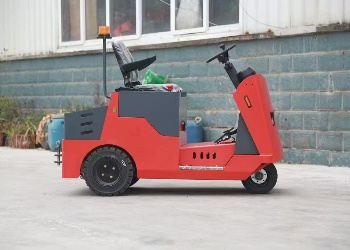

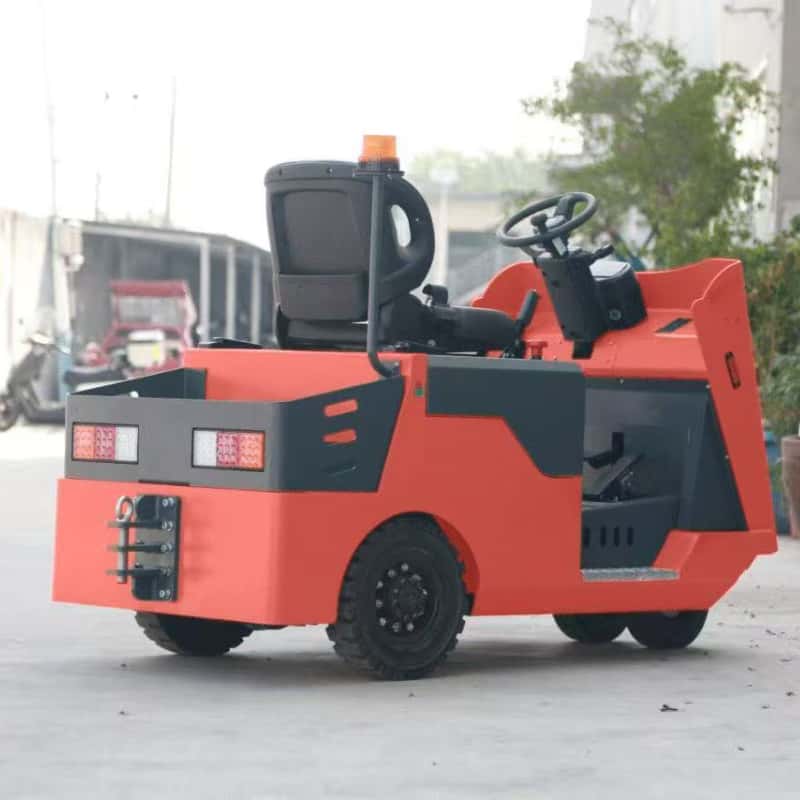

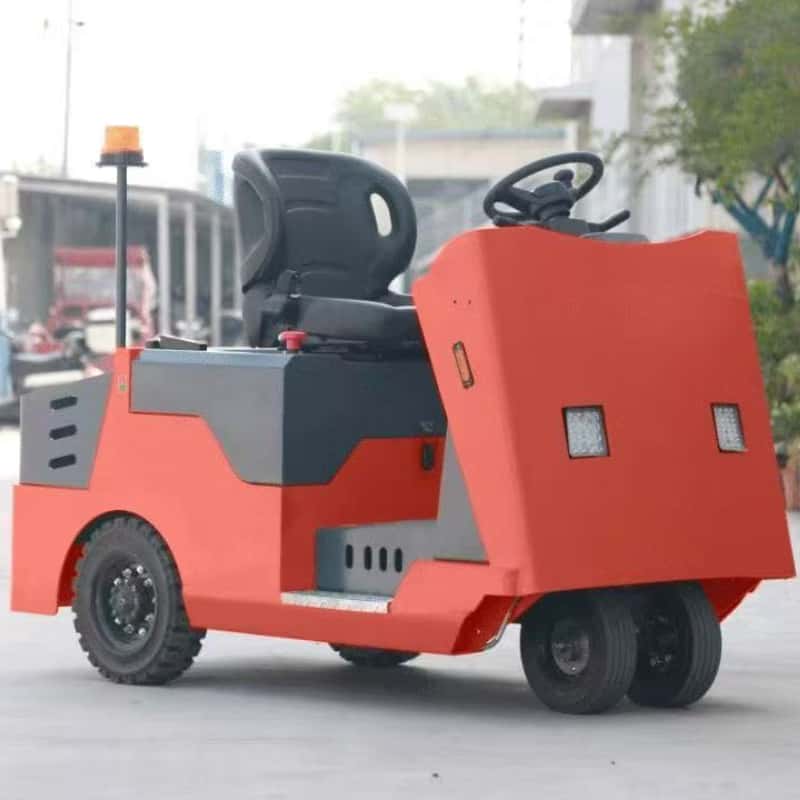

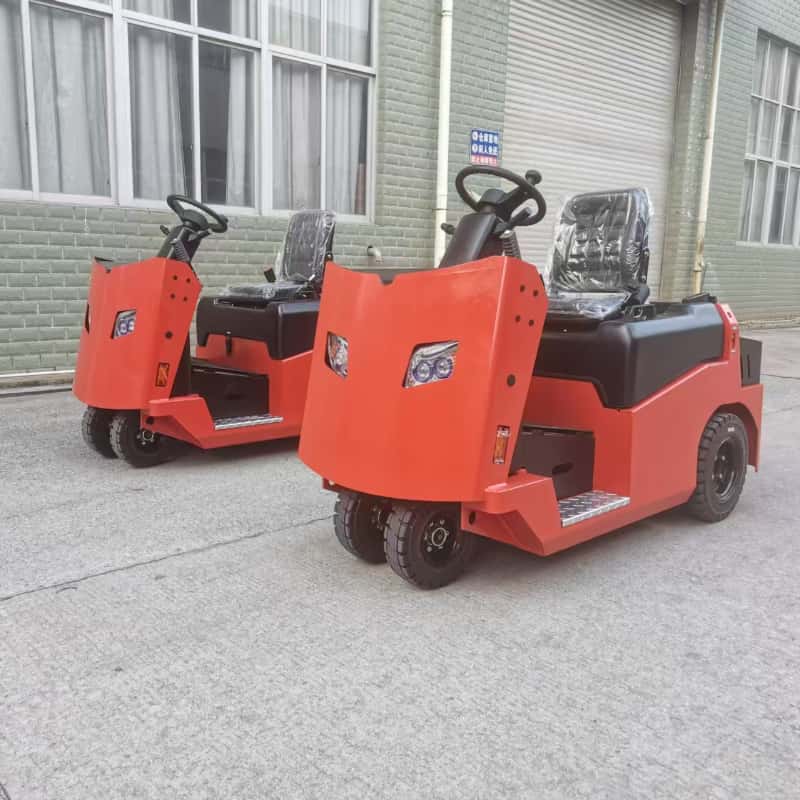

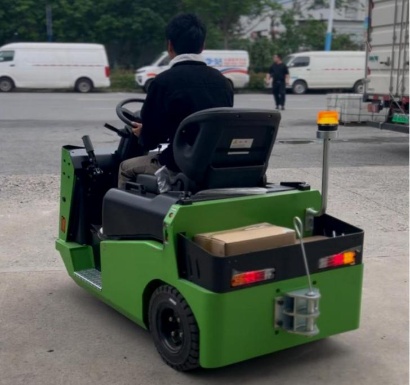

3ton-6ton electric tow tractor
ModelZ3-Z6
Load Capacity3000kg-6000kg
Battery Capacity24V/203AH
Turning Radius 1435mm
Max.Rated traction3000N-5000N
We're here to help:Easy ways to get the answers you need.
- What should I consider when choosing an electric tow tractor?
- When purchasing an electric tow tractor, it is essential that you consider its towing capacity, battery capacity and runtime, gradeability, size and maneuverability as well as maintenance costs and operating expenses as part of the selection process. Finally, select a reliable manufacturer or supplier to provide long-term support.Are Chinese electric tow tractors reliable? Yes—Chinese electric tow tractors can indeed be reliable, especially when sourced from reputable FLIFT Brand manufacturers who uphold quality standards and offer strong after-sales support
Technical Parameters
|
3.0/ 4.0 /6.0T Seated Electric Tow Tractor Specification |
||||
|
Model |
|
Z3 |
Z4 |
Z6 |
|
Power type |
|
Electric |
Electric |
Electric |
|
Operation type |
|
Seated |
Seated |
Seated |
|
Load capacity |
kg |
3000 |
4000 |
6000 |
|
Rated traction |
N |
1000 |
1500 |
1900 |
|
Wheel base |
mm |
955 |
955 |
955 |
|
Service weight |
kg |
650 |
780 |
1200 |
|
Axle load,no load drive end/load end |
kg |
279/504 |
279/504 |
279/504 |
|
Tire type,Drive wheel/Load wheel |
|
Rubber |
Rubber |
Rubber |
|
Driving wheel size(Diameter ×width) |
mm |
3.50-5-6PR |
3.50-5-6PR |
3.50-5-6PR |
|
Loading wheel(Diameter×width) |
mm |
4.00-8-6PR |
4.00-8-6PR |
4.00-8-6PR |
|
Number of driving/bearing wheels(x=Driving wheel) |
|
1/2× |
1/2× |
1/2× |
|
Front tread |
mm |
245 |
245 |
245 |
|
Rear tread |
mm |
724 |
724 |
724 |
|
Overall height |
mm |
1245 |
1245 |
1245 |
|
Operating position Handle lever minimum/maximum height |
|
/ |
/ |
/ |
|
Traction coupler height range |
mm |
305/355 |
305/355 |
305/355 |
|
Overall length |
|
1950 |
1950 |
1950 |
|
Overall width |
|
860 |
860 |
860 |
|
Ground clearance at center of wheelbase |
mm |
85 |
85 |
85 |
|
Turning radius |
Wa |
1435 |
1435 |
1435 |
|
Travel speed,fullload/no load |
km/h |
7.0/10 |
7.0/13 |
7.0/13 |
|
Max.Rated traction |
N |
3000 |
4000 |
5000 |
|
Climbing ability,full load/no load |
% |
5.0/10 |
7.0/14 |
5.0/20 |
|
Braking type |
|
Hydraulic |
Hydraulic |
Hydraulic |
|
Drive motor rated power |
kw |
2.2 |
3 |
4 |
|
Charger |
|
24/30 |
24/30 |
48/30 |
|
Battery voltage |
V/Ah |
24/203 |
24/203 |
48/203 |
|
Battery weight |
kg |
136 |
136 |
272 |
|
Drive control type |
|
AC |
AC |
AC |
|
Steering type |
|
Electric |
Electric |
electric |
|
Noise level |
dB(A) |
<70 |
<70 |
<70 |
|
Traction coupling |
|
Pin-type |
Pin-type |
Pin-type |
FEATURES
Electric Tow Tractor Manufacturer
Character:
1.Zero emissions, eco-friendly.
2.Smaller turning radius of 1435mm for easy maneuvering.
3.Strong climbing ability with 20% gradeability..
4.Equip with high quality Curtis brand controller.
5.A solid-state LCD digital meter provides clear, reliable real-time performance data.
6.quipped with standard 203Ah high-capacity battery for longer operation.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
