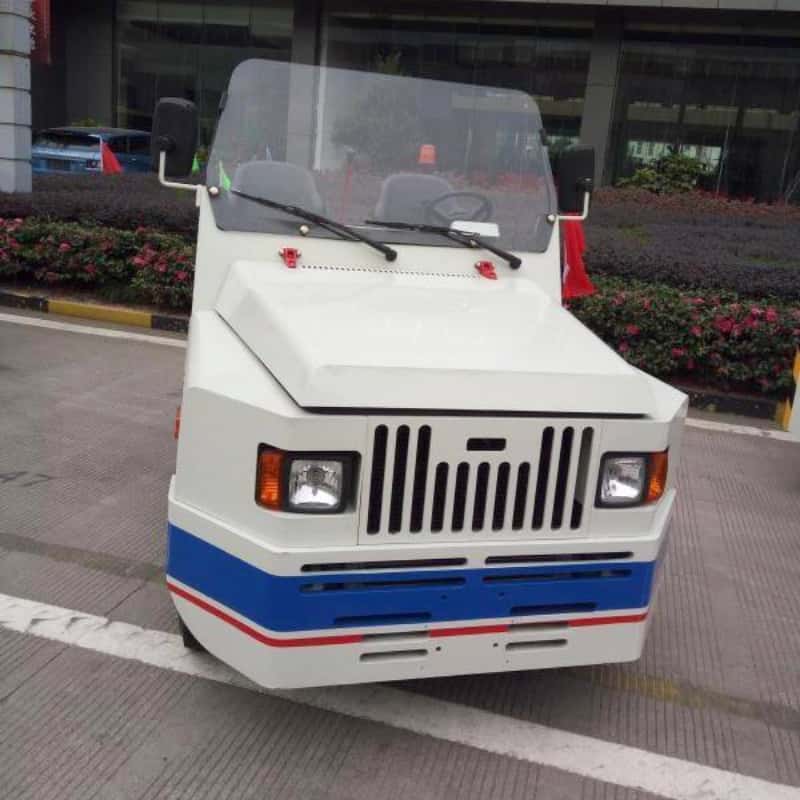

20-30KN Diesel Tow Tractor
ModelTD20-TD30
Maximum Drawbar Pull20KN-30KN
Power typeDiesel
Max.Gradeability30%
Service Weight3700kg-4300kg
We're here to help:Easy ways to get the answers you need.
- FLIFT 26000-39000Kg Capacity Heavy Duty Diesel Tow Tractor
- Discover powerful tow tractors! Our heavy-duty diesel models are perfect for tackling tough jobs, ensuring reliability and efficiency every time.
Technical Parameters
|
Model code |
|

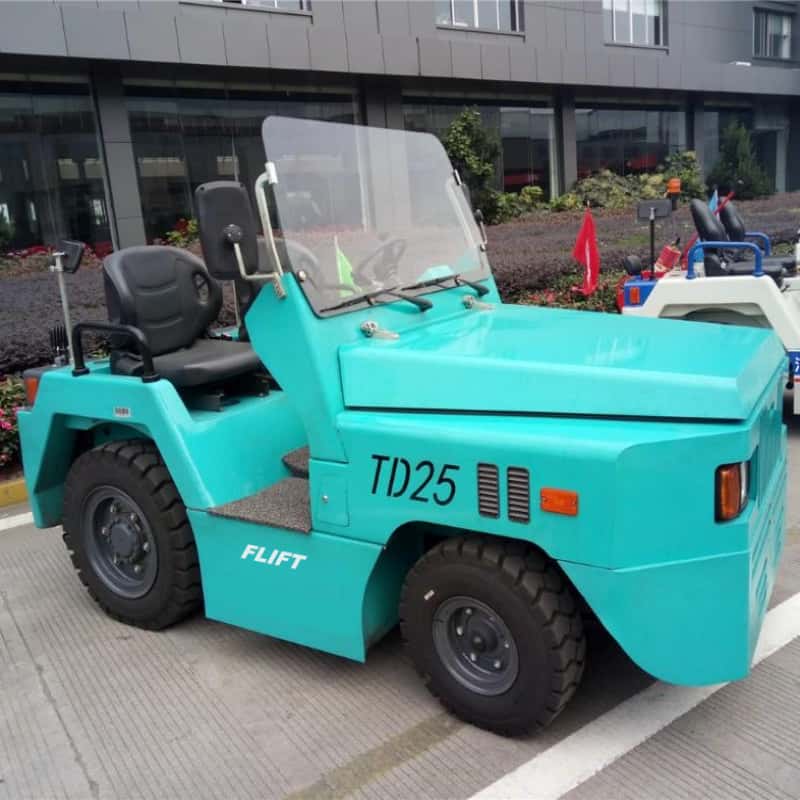

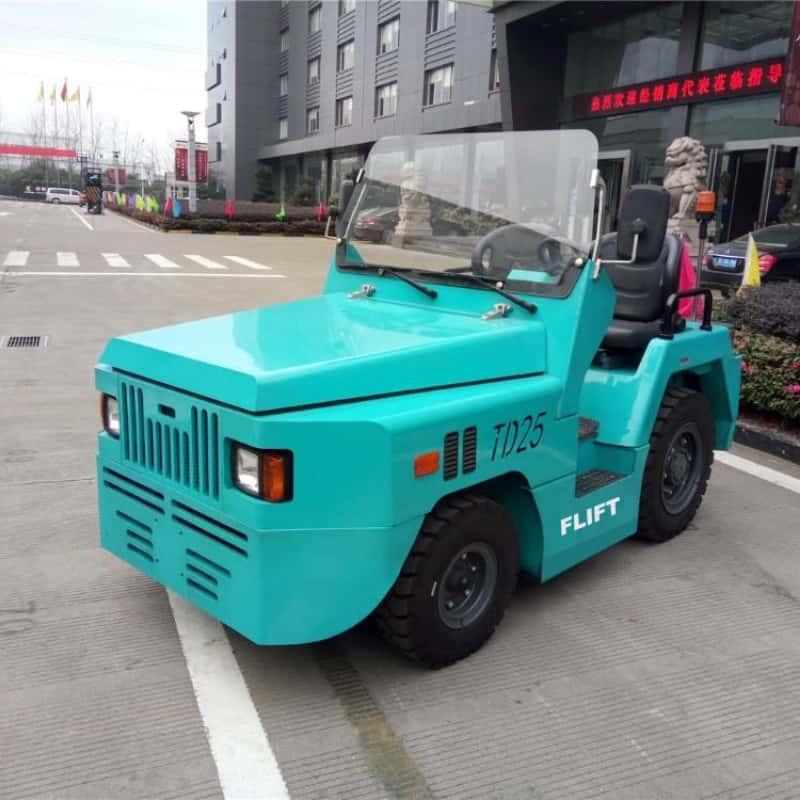

TD 20 |
TD 25 |

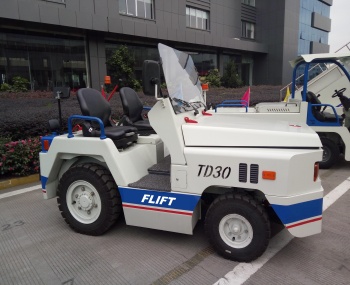

TD 30 |
|
|
Power type |
|
Diesel |
Diesel |
Diesel |
|
|
Performance |
|||||
|
Max.drawbar pull |
KN |
20 |
25 |
30 |
|
|
Max.towed weight at dry |
with one trailer |
Kg |
26000 |
33000 |
39000 |
|
with a train of trailers |
Kg |
39000 |
49000 |
59000 |
|
|
Max.tarvel speed |
Forward |
Km/h |
29 |
26 |
26 |
|
Backward |
Km/h |
20 |
17 |
17 |
|
|
Max.gradeability |
No load |
% |
35 |
35 |
35 |
|
Dimension |
|||||
|
Overall length(with coupler) |
mm |
3150 |
3150 |
3150 |
|
|
Overall width |
mm |
1440 |
1440 |
1440 |
|
|
Overall height |
mm |
1450 |
1450 |
1450 |
|
|
Wheelbase |
mm |
1600 |
1600 |
1600 |
|
|
Front overhang |
mm |
650 |
650 |
650 |
|
|
Rear overhang(with coupler) |
mm |
900 |
900 |
900 |
|
|
Front tread |
mm |
1200 |
1200 |
1200 |
|
|
Rear tread |
mm |
1190 |
1190 |
1190 |
|
|
Min. turning radius(outer) |
mm |
3250 |
3250 |
3250 |
|
|
Floor height |
mm |
460 |
460 |
460 |
|
|
Seat height |
mm |
940 |
940 |
940 |
|
|

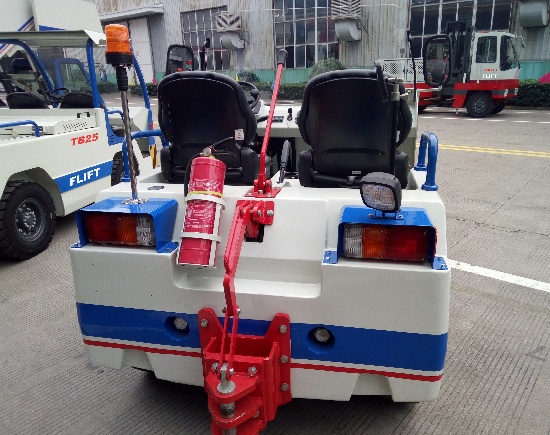

Center height coupler |
mm |
304.8/405 |
304.8/405 |
304.8/405 |
|
|
Coupler length |
mm |
260 |
260 |
260 |
|
|
Min.ground clearance |
mm |
150 |
150 |
150 |
|
|
Tire |
|||||
|
Tire size |
Front |
|
6.50-10-10PR |
||
|
Rear |
|
7.00-15-12PR |
|||
|
Weight |
|||||
|
Truck weight (no load) |
|
Kg |
3700 |
3950 |
4300 |
|
Weight distrbution |
Front axle |
Kg |
1270 |
1200 |
1250 |
|
Rear axle |
Kg |
2430 |
2750 |
3050 |
|
|
Engine Model |
|
C240 |
4TNE98 |
B3.3 |
|
|
Engine Brand |
|
Isuzu |
Yanmar |
Cummins |
|
|
Displacement |
cc |
2369 |
3319 |
3300 |
|
|
Rated output |
Kw/rpm |
35.4/2500 |
42.1/2300 |
48/2600 |
|
|
Rated torque |
Nm/rpm |
139/1800 |
196/1600 |
214/1600 |
|
FEATURES
Heavy Duty Diesel Tow Tractor
Character:
1.Optional ISUZU or YANMAR engine for flexible performance.
2.Smaller turning radius of 3250mm for easy maneuvering.
3.Ultra-strong 35% gradeability handles steep slopes.
4.260mm ground clearance for rough terrain operations.
5.Heavy-duty towing capacity up to 39,000kg.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
