Load Capacity 1000kg, Load Center 400mm, Wheel Base 1151 mm

Technical Parameters

technology parameters

FLIFT Rough Terrain Electric Out-door Forklift Specification
FEATURE	1.1	Origin		China
	1.2	Brand		FLIFT
	1.3	Telescopic spreader		Level 3
	1.4	Telescopic type		Hydraulic
	1.5	Operation Type		Walking Driving
	1.6	Load Capacity	kg	1000
	1.7	Load Center	mm	400
	1.8	Telescopic spreader lifting height	mm	3000
	1.9	Wheel Base	mm	1151
DIMENSION	2.1	Overal Dimension	mm	1600×1200
	2.2	Fork Dimension(L×W×H)	mm	1070×140×60
	2.3	Fork Width Min./Max.	mm	900/1350
	2.4	Turning Radius	mm	1600
	2.5	Channel Width with 1000*1200mm tray	mm	2678
WEIGHT	3.1	Self weight	kg	600
WEIGHT	3.2	Battery Weight	kg	52
WHEEL	4.1	Wheel Type		Solid Rubber
	4.2	Driving Wheel Sizes	mm	250×70
	4.4	Loading wheel sizes	mm	370×100
	4.5	Min. Ground Clearance	mm	100
DRIVE＆CONTROL	5.1	Driving Motor	kw(60min)	1.5
	5.2	Liifting Motor	kw(60min)	2.2
	5.3	Batterydimension	mm	271×174×213
	5.4	Battery Voltage/Capacity	V/Ah	24/80
	5.5	Controller		Brushless
	5.6	Working Pressure	mpa	14
PERFORMANCE	6.1	Driving Speed	km/h	3.5/4
	6.2	Lifting Speed	mm/s	45/55
	6.3	Lowering Speed	mm/s	40/55
	6.4	Max Climbing Ability	%	4
	6.5	Service Braking		electromagnetic induction
	6.6	Parking Braking		electromagnetic induction
OTHER	7.1	Driving type		Electric
	7.2	Steering Type		Manual
	7.3	Noise Level		63
	7.4	Waterproof Grade		IP54

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Ac drive motor, strong climbing force, high strength fork legs.
5.forged fork, high strength forklift special Mast channel steel.
6.Large-capacity maintenance-free battery, built-in special charger, multi-function integrated handle,
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.

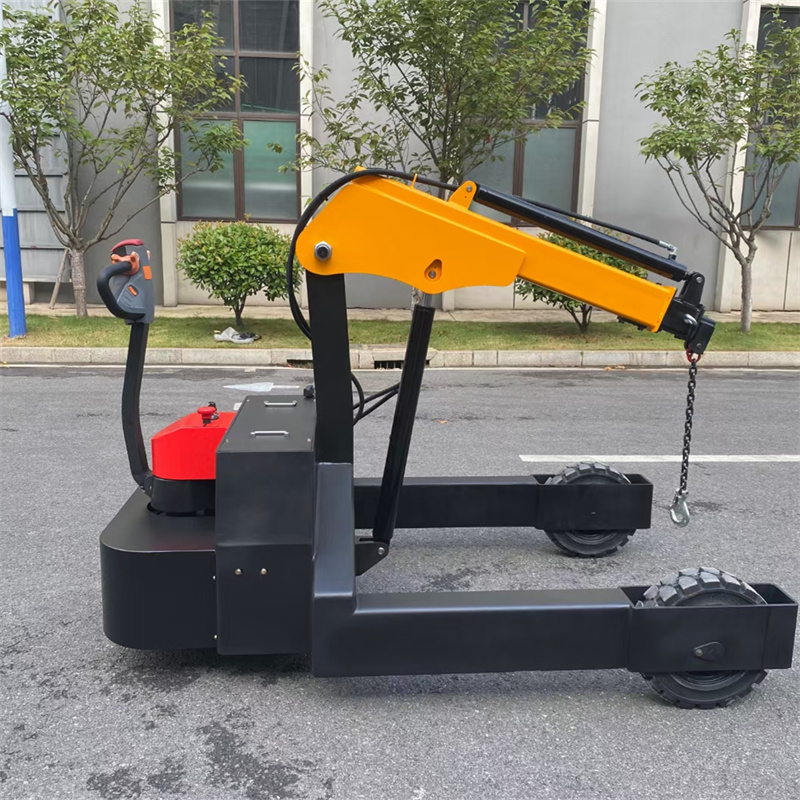

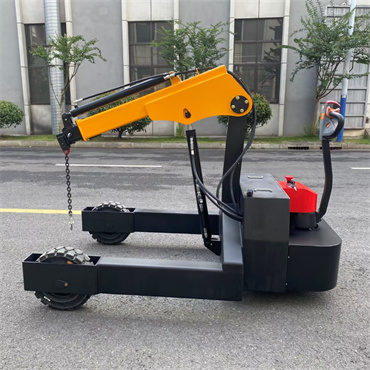

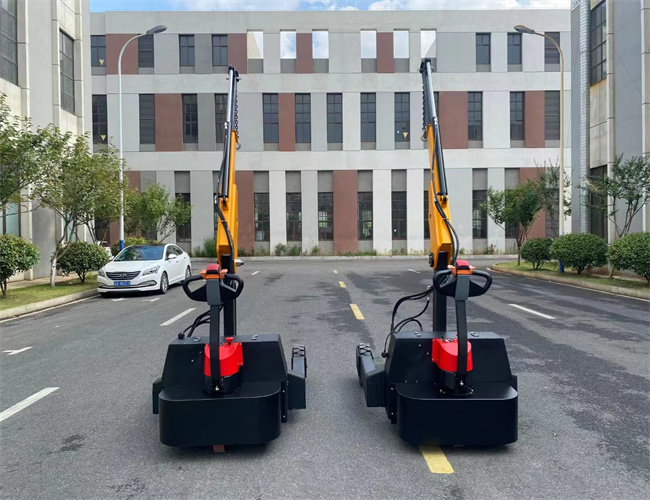

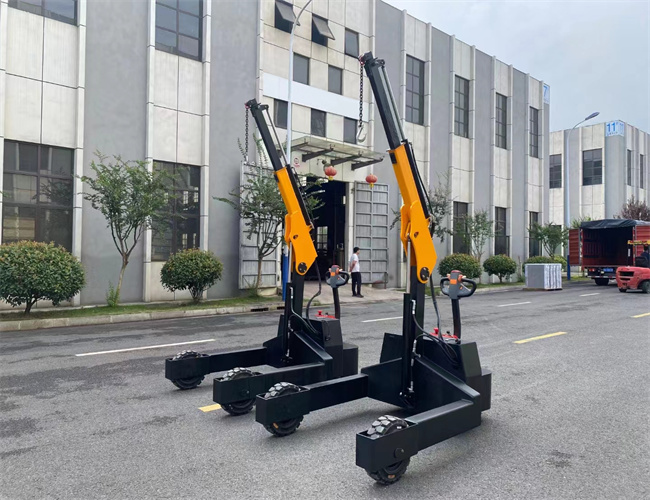

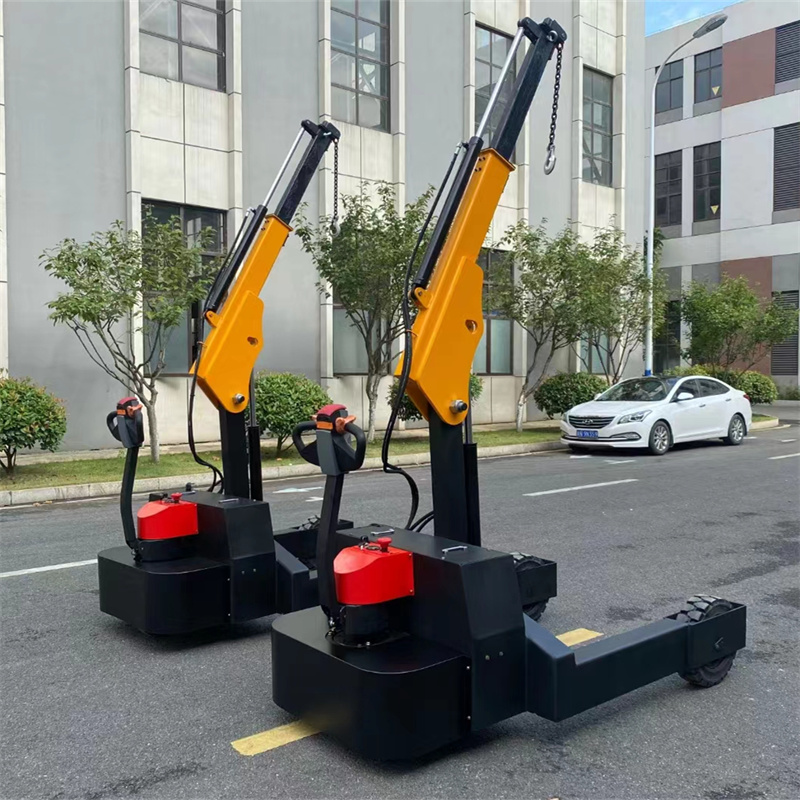

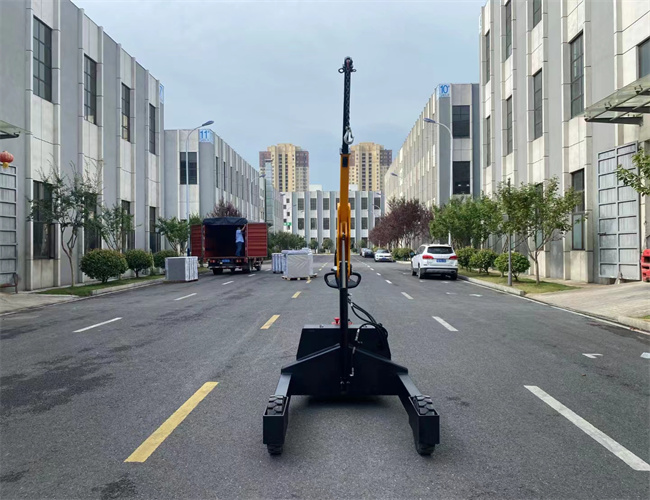

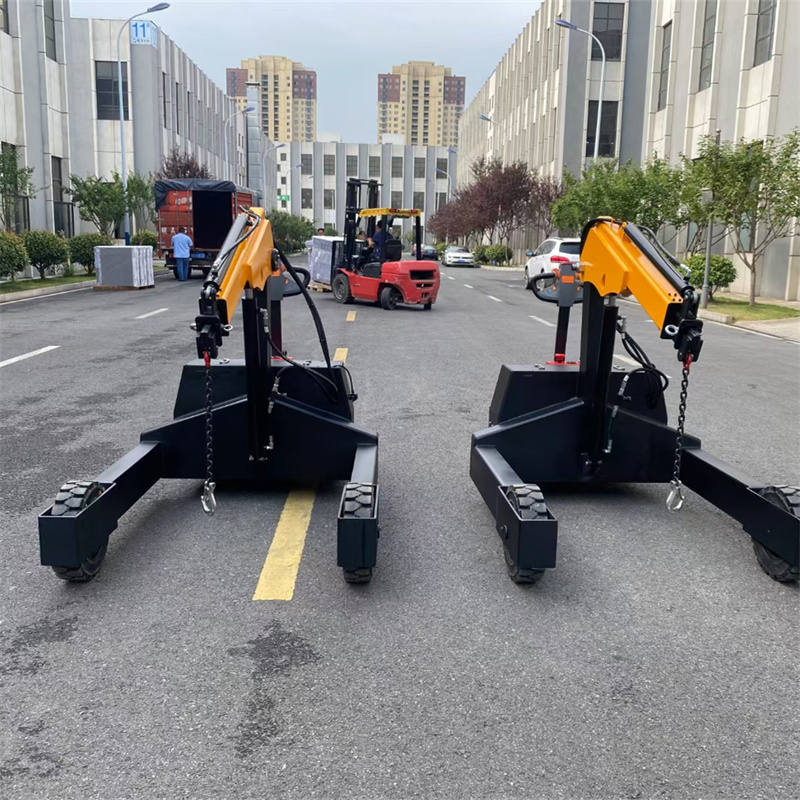

Product Figure

Advantages:
Ac drive motor, strong climbing force, high strength fork legs, forged fork, high strength forklift special Mast channel steel,Large-capacity maintenance-free battery, built-in special charger, multi-function integrated handle, front wheel solid rubber tire, high-power lifting hydraulic pump station, excellent climbing and passing performance.

Security:
Drive stepless speed regulation, safety, mute, controller multiple automatic protection system, emergency reverse anti-collision device,Emergency power off switch forged fork, bend deceleration optional lithium battery, suitable for single/double side tray, provide non-standard customization.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
