Load center 600mm, Self Weight 785 kg, Solid Rubber

Technical Parameters

technology parameters

FLIFT CDD10Y/15Y electric pallet stacker (Rough Terrain)
Driving type		Electric
Operation type		Standing
Rated Capacity	kg	1500
Load center	mm	600
Self Weight	kg	785
Tyre		Solid Rubber
Driving Wheel size	mm	300*80
Bearing Wheel size	mm	406*110
Overall height	mm	2130
Lifting Height	mm	1600
Min. Fork Ground Clearance	mm	60
Operating handle height above ground	mm	1320
Overall Length	mm	1960
Overall width	mm	1580
Fork length	mm	1070
Adjustment range of fork	mm	240-720
Ground Clearance	mm	120
Inside the landing leg width	mm	1270
Turning Radius	mm	1555
Driving Speed (full/no load)	Km/h	3.5/4.5
Lifting Speed (full/no load)	mm/s	13/25
Max. Gradeability (full/no load)	%	8%/10%
Braking mode		Electromagnetic Brake
Driving motor capacity	KW	AC1.5
Lifting motor capacity	KW	2.2
Battery Voltage/ Capacity	V/AH	24/100
Battery charger	V/A	24/15

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Ac drive motor, strong climbing force, high strength fork legs, forged fork, high strength forklift special Mast channel steel
5.Large-capacity maintenance-free battery, built-in special charger, multi-function integrated handle, front wheel solid rubber tire.
6.high-power lifting hydraulic pump station, excellent climbing and passing performance.

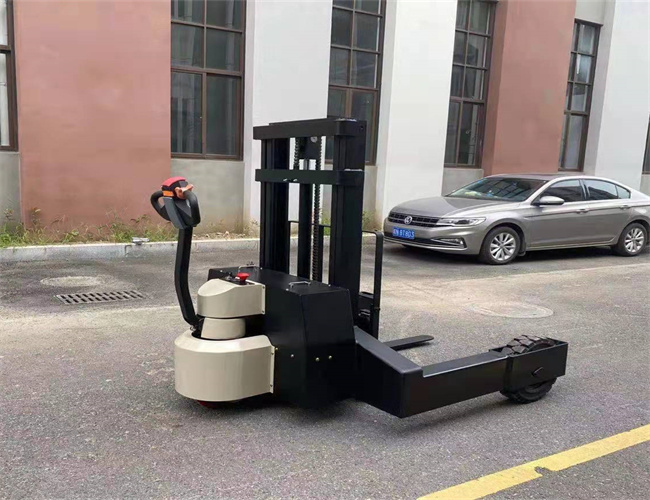

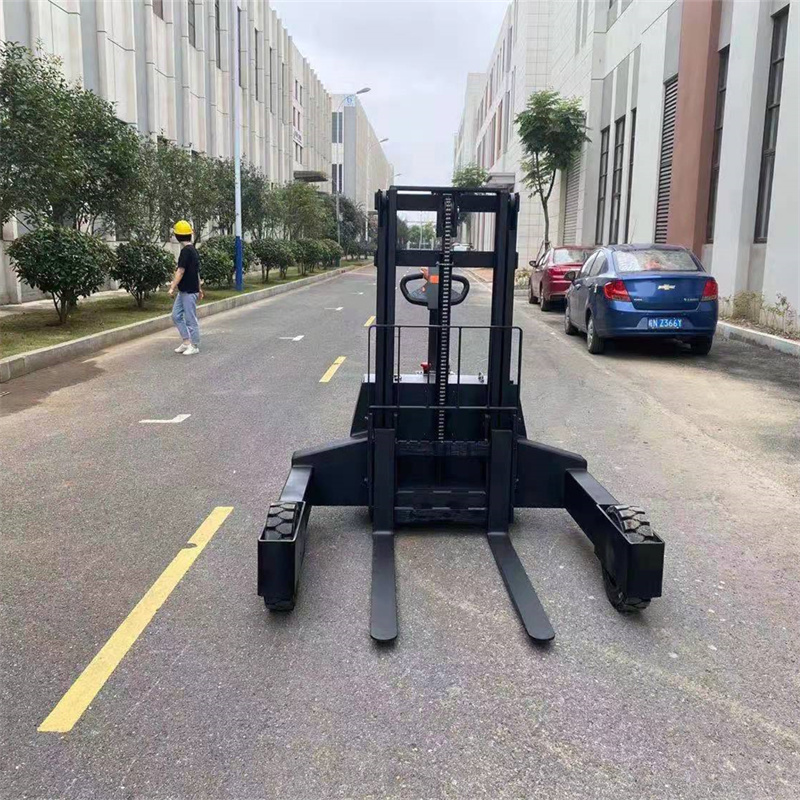

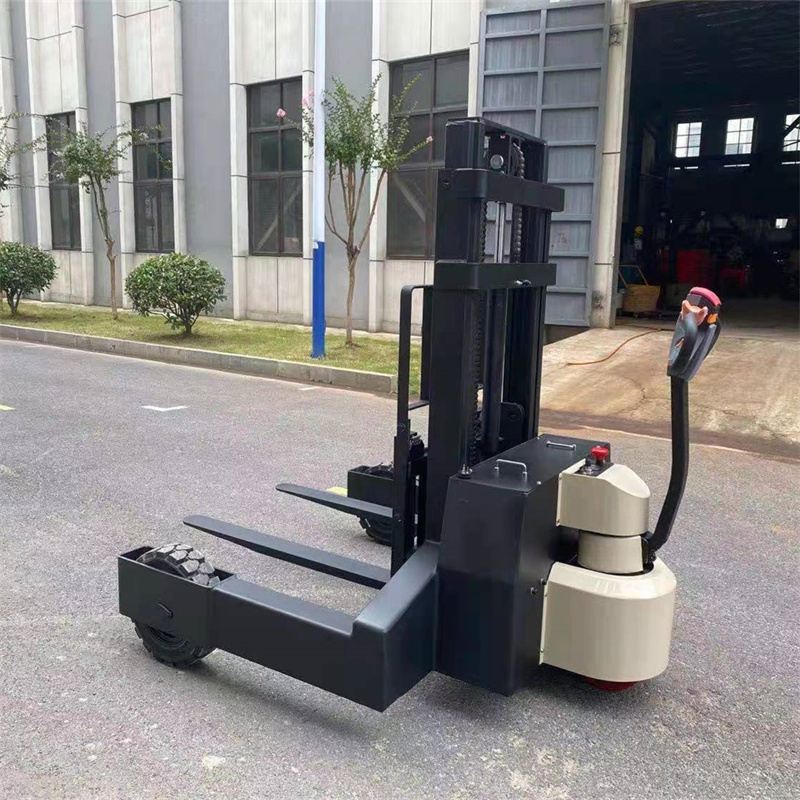

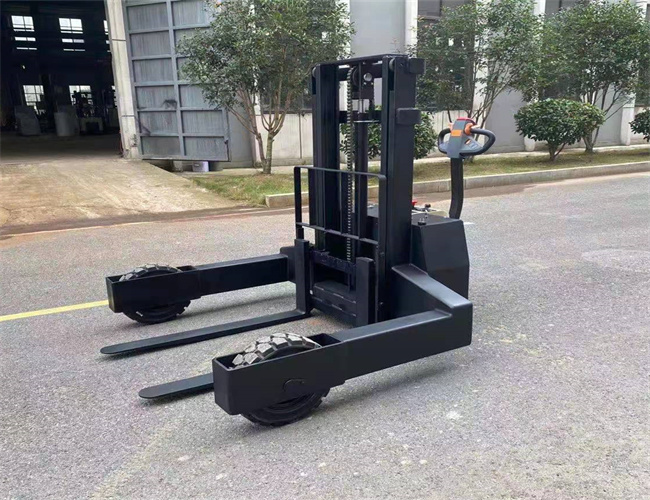

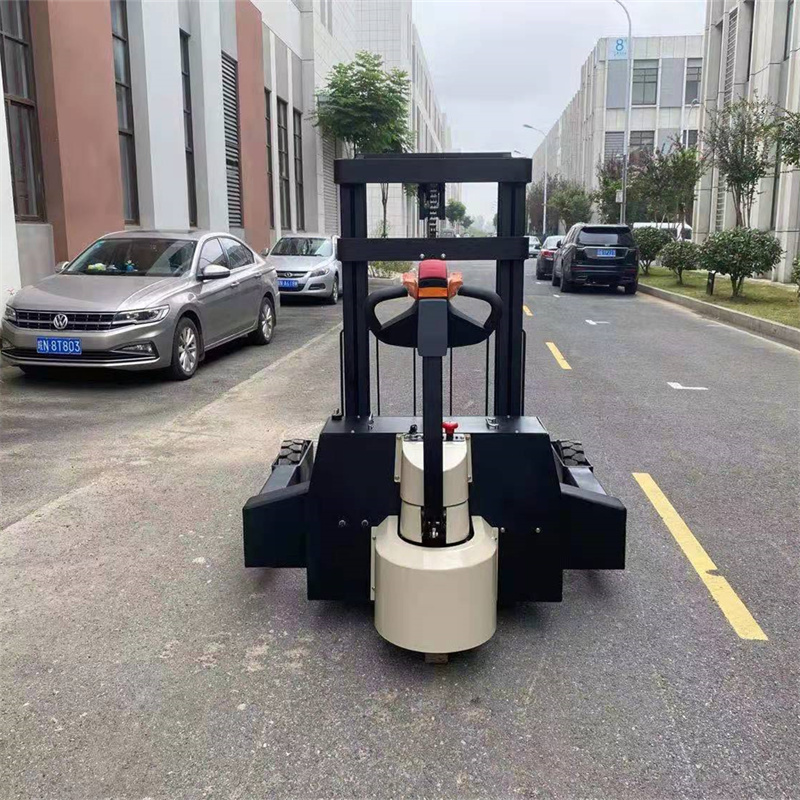

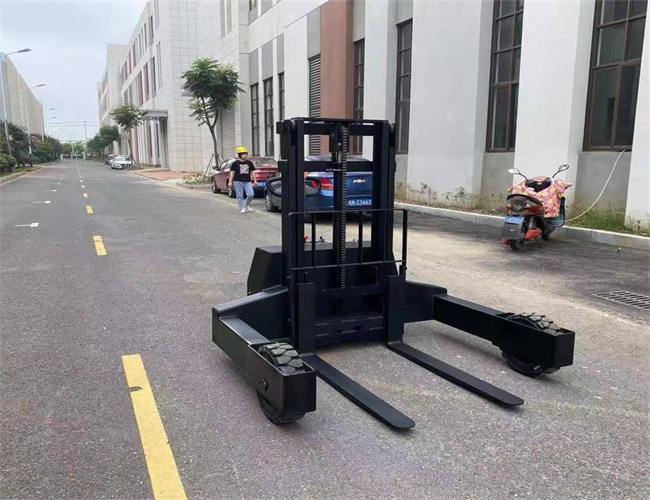

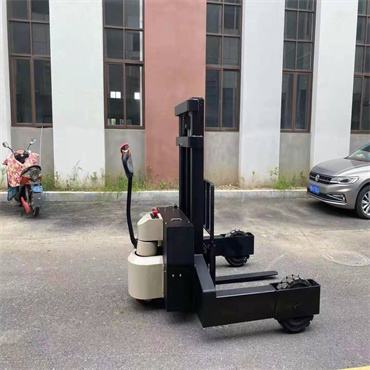

Product Figure

Advantages:
Ac drive motor, strong climbing force, high strength fork legs, forged fork, high strength forklift special Mast channel steel Large-capacity maintenance-free battery, built-in special charger, multi-function integrated handle, front wheel solid rubber tire, high-power lifting hydraulic pump station, excellent climbing and passing performance.

Security:
Drive stepless speed regulation, safety, mute, controller multiple automatic protection system, emergency reverse anti-collision device Emergency power off switch forged fork, bend deceleration optional lithium battery, suitable for single/double side tray, provide non-standard customization.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
