Load Center 600 mm, Rated Capacity 6000kg, Wheel Base 1485 mm

Technical Parameters

technology parameters

FLIFT CBD 60 Fully Electric Pallet Truck
Model		CBD 60
Power type		Electric
Driving Type		Standing Type
Rated Capacity	k g	6000
Load Center	m m	600
Wheel Base	m m	1458
Weight(with battery)	k g	950
Tyre type, drive side/bearing side		PU
Bearing wheel side	mm	Φ 85*110
Driving wheel side	mm	Φ 230*90
Stabilize wheel size	mm	Φ 130*55
Numbers of wheel front / rear (X = drive wheel)		4/1X +4
Tread, drive side	mm	654
Tread,bearing side	mm	480
lifting Height	mm	120
Standing board height	mm	160
Min.fork face ground clearance	mm	95
Overall length	mm	1945/2346
Overall width	mm	885
Fork size	mm	1200 / 235 / 82
Maximum forks width	mm	715
Body ground clearance	mm	65
Right Angle stacking aisle width (1000*1000Pallet)	mm	2950 / 2550
Turning radius	mm	2150 / 1750
Driving speed, full/no load	km/h	4.0/5.0
Lift speed, full/no load	mm/s	25 / 30
Descend speed,full/no load	mm/s	29 / 16
Gradeability,full/no load (S2-5min)	%	2%/8%
Brake mode		Electromagnetic type
Drive motor power (S2-60min)	k w	2.5
Lift motor power (S3-15%)	k w	2.2
Battery, voltage / rated capacity	V /Ah	24 / 280
Battery weight	k g	245

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Double cylinder, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, portable.
5.German Bucher low voice hydraulic pump AC drive, no carbon brush, motor,maintenance free. Electromagnetic and regenerative braking system.
6.Lift current limit, extend hydraulic voltage, battery life, body shock absorption system, handle shock absorption

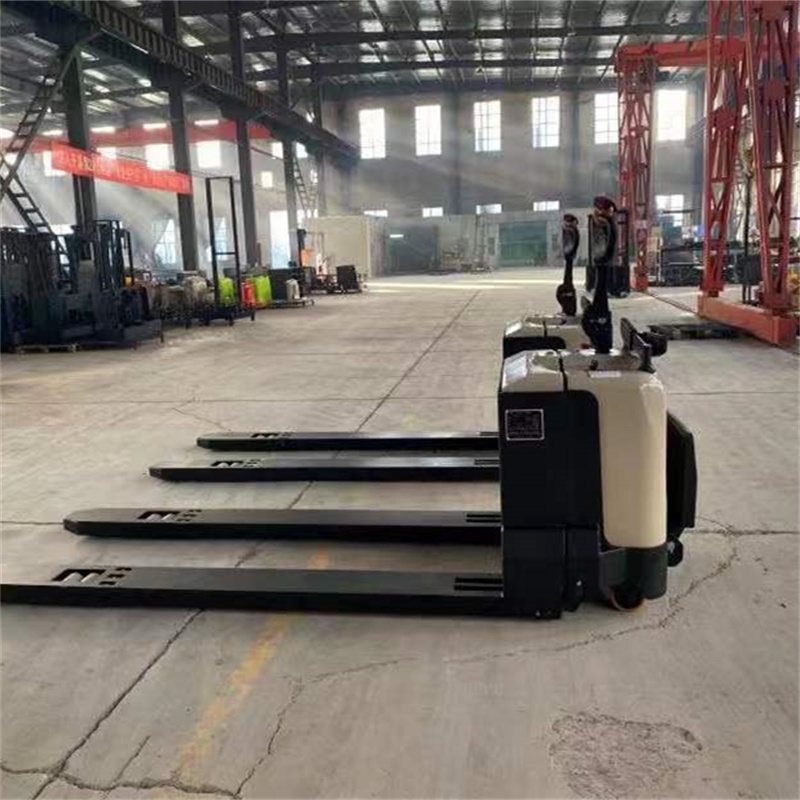

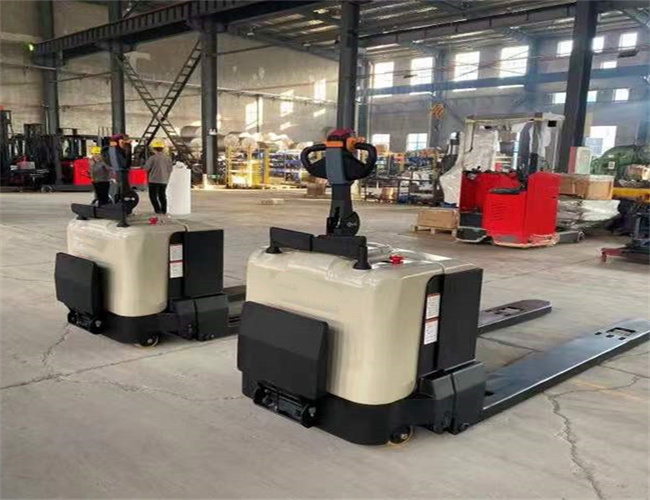

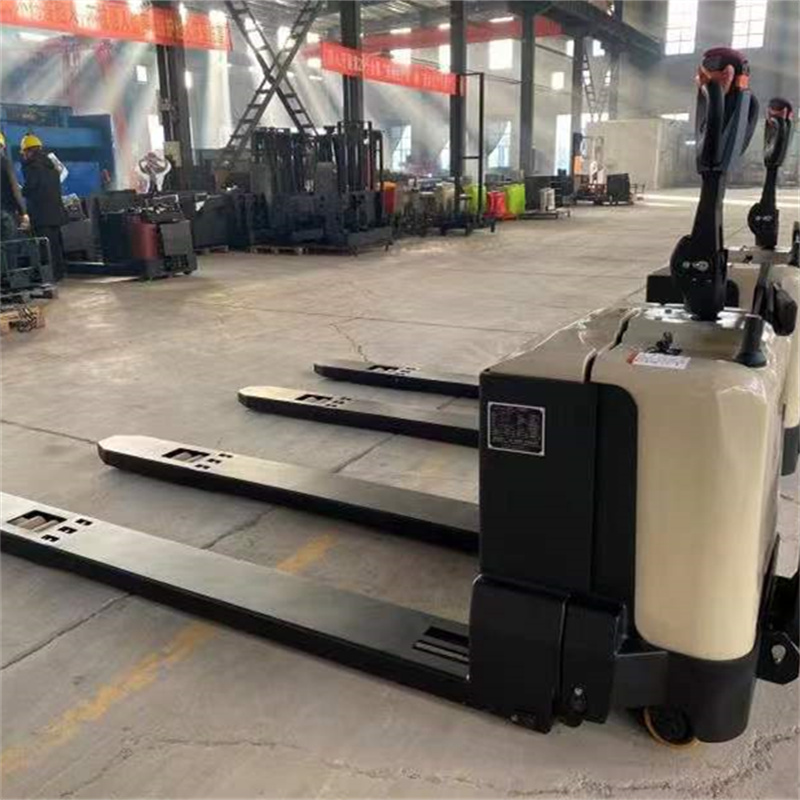

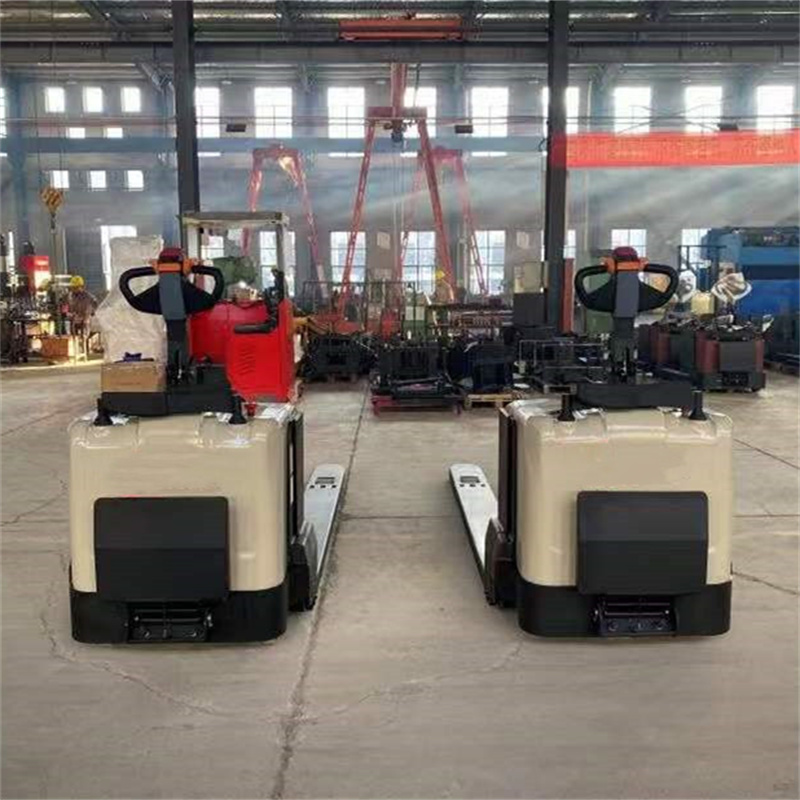

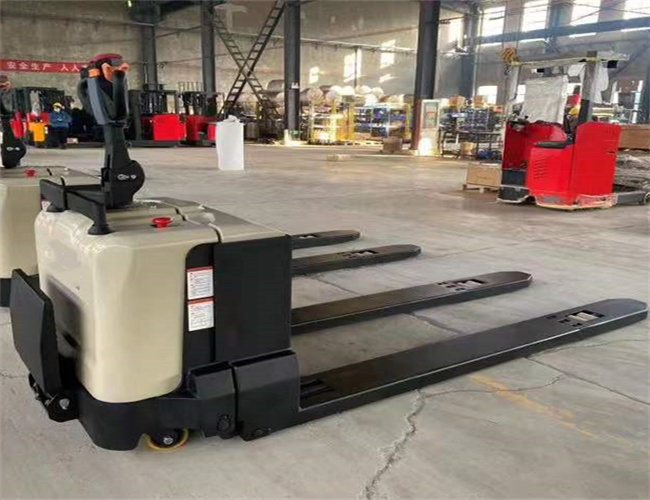

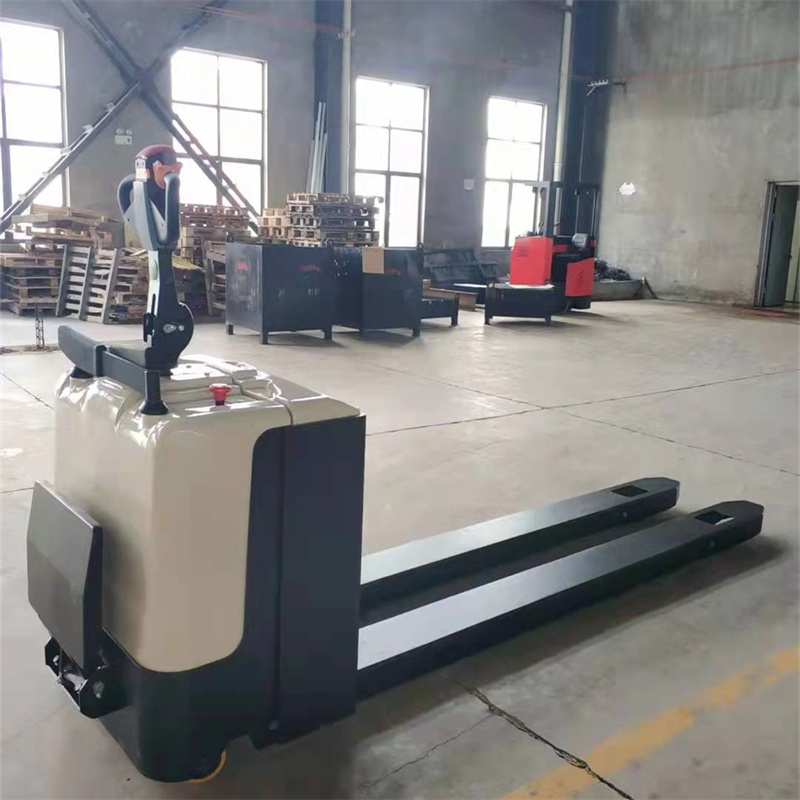

Product Figure

Advantages:
Double cylinder, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, portable. German Bucher low voice hydraulic pump AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift current limit, extend hydraulic voltage, battery life, body shock absorption system, handle shock absorption

Security:
Turn automatic deceleration device AC EPS, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
