900kg CDD09B Electric Walking Type Counterweight Stacker

Dynamic TypeElectric

Operation TypeWalking type

Rated Capacity900kg

Load Center500mm

Tyre TypePU

We're here to help:Easy ways to get the answers you need.

Rated Capacity 900KG counterweight Walking Type Electric Stacker
Easy Operation High Safety Counterweight Electric Pallet Stacker with Losd Center 500mm.

technology parameters

Brand   FLIFT
Model   CDD09B
Dynamic Type   Electric
Operation Type   Walking Type
Rated Capacity kg 900
Load Center mm 500
Grade of Installation   2A
Tyre type   PU
Front Tires size   150*90
Driving Wheel Tires size   210*70
Number of Tires   2/1X
Mast Type   2 Stages
Standard Lifting Height mm 2500
Free Lifting Height mm /
Mast Lowered Height mm 1850
Mast Extended Height (with Backrest) mm 3268
Min. Ground Clearance mm 46
Overall Length mm 2479
Wheel Base mm 1150
Overall Width (Front/Rear) mm 915/704
Front Tread mm 797.5
Fork Size mm 1070*100*35
Maximum forks width mm 210-600
Aisle Width(1000*1200Pallet) mm 2749
Turning Radius mm 1331
Driving Speed (Full/No Load) Km/h 3..5/4
Lifting Speed (Full/No Load) mm/s 80/125
Descend Speed (Full/No Load) mm/s 150/100
Grade ability (Full/No Load) % 3%/6%
Driving Motor Capacity kw 0.75
Lifting Motor Capacity kw 2.2
Battery  Voltage/Capacity V/Ah 24/100
Overall Weight (with battery) kg 1320
Steering type   Manual Steering
Parking Brake Type   Electromagnetic
Battery Charger Replacement Mode   Lifting



FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.DC drive motor, strong climbing force,High strength fork leg, cargo fork,Channel steel for high strength forklift.
5.Large capacity maintenance-free battery,Built-in intelligent charger.
6.Multi-function integration, narrow channel special operation.
7.Handle low noise lifting hydraulic pump station,Good climbing performance;
8.Super low & Non-slip step.

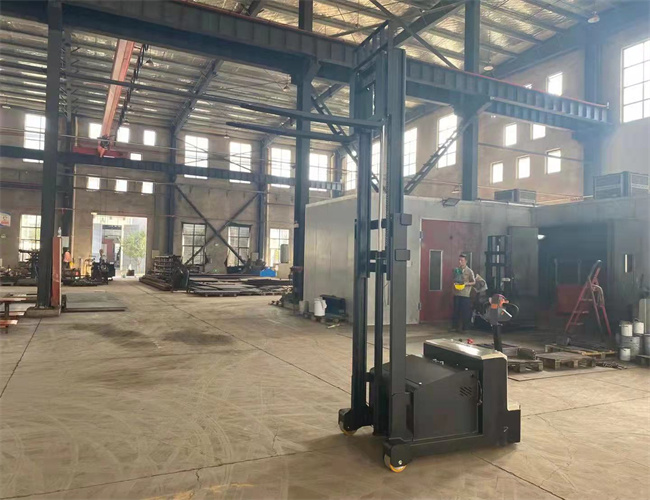

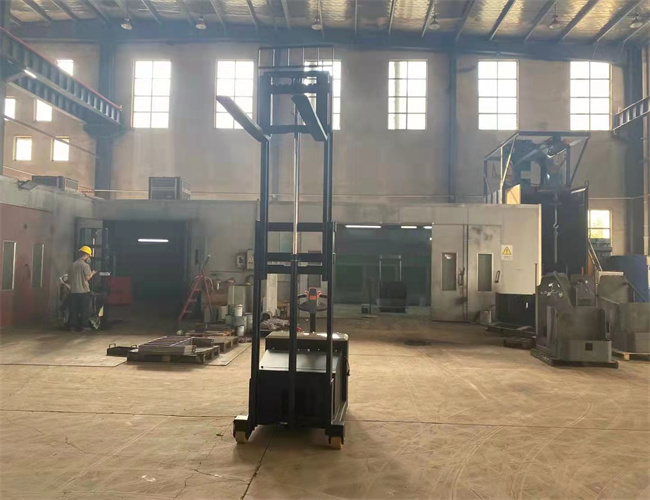

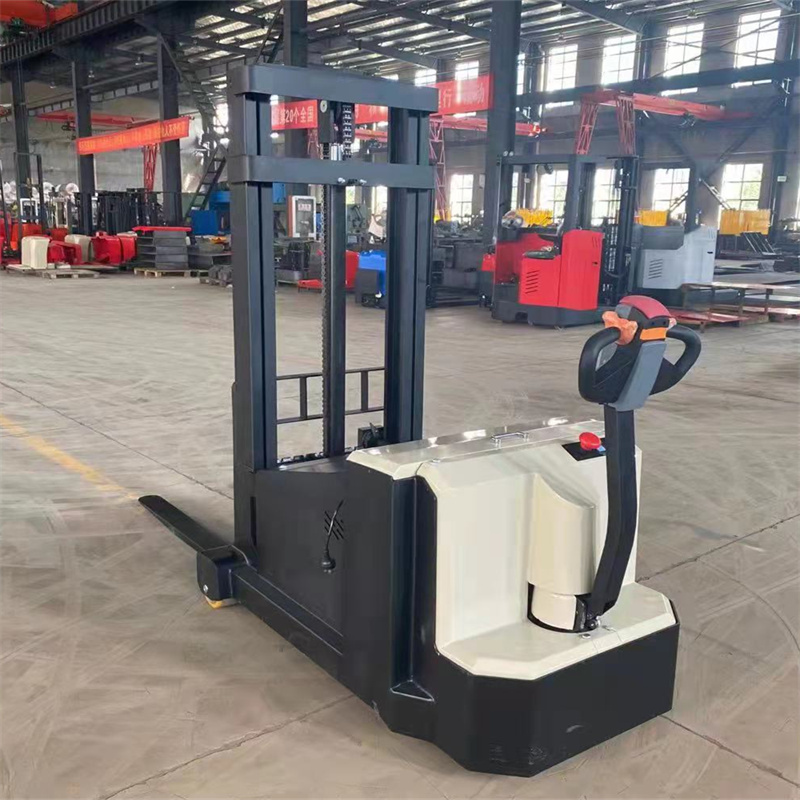

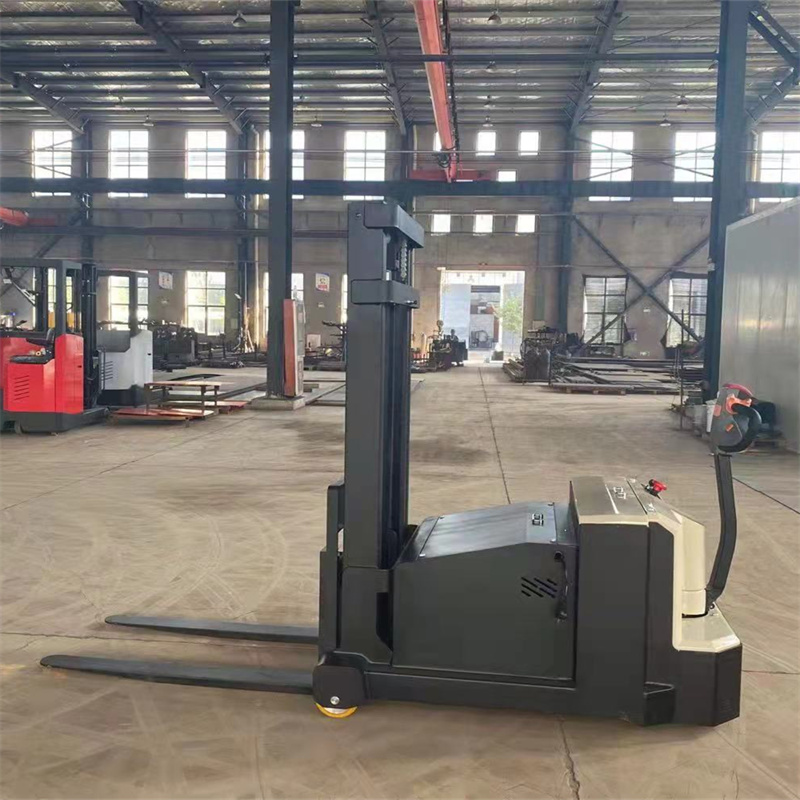

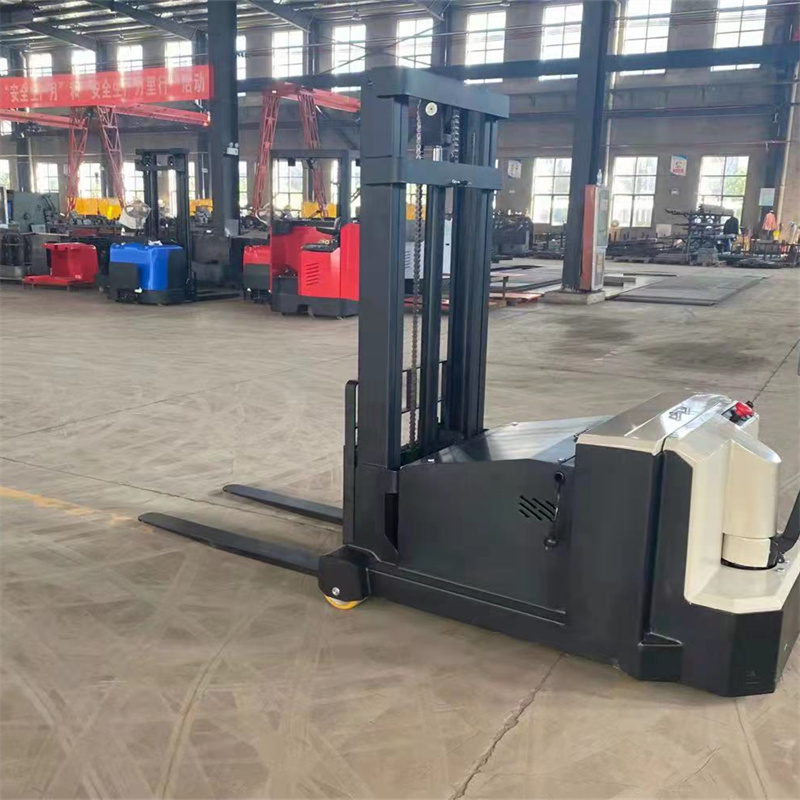

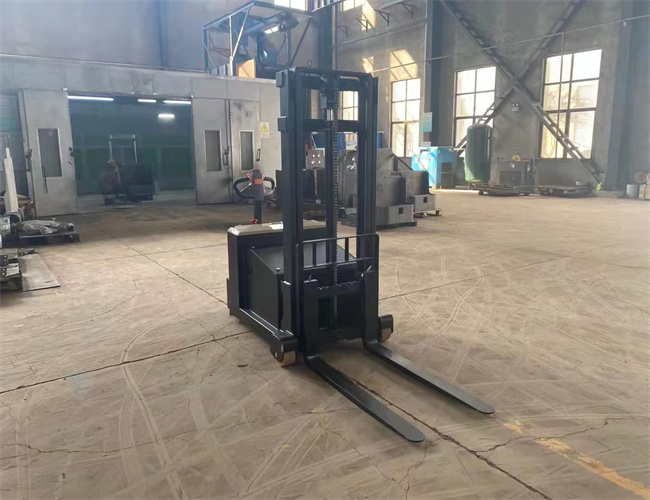

Product Figure



Advantages:

DC drive motor, strong climbing force,High strength fork leg, cargo fork,Channel steel for high strength forklift,Large capacity maintenance-free battery,Built-in intelligent charger,Multi-function integration, narrow channel special operation,Handle low noise lifting hydraulic pump station,Good climbing performance.




Security:
Drive stepless speed regulation, safety, mute,Controller multiple automatic protection system,Emergency reverse collision preventer/emergency power cut,Turn on and off automatically decelerate.EPS AC,Optional lithium battery,Automatic deceleration on curves,Stationary fork,Provide non-standard customization.



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
