CBD80 8t Electric Pallet Stacker

ModelCBD80

Rated Capacity8000

Load Center600

Min. Ground Clearance110

Overall Width1250

We're here to help:Easy ways to get the answers you need.

8 Ton Fully Electric Pallet Stacker
Fully Electric pallet Stacker Rated Capacity 8000KG wit Laod Center 600mm.

technology parameters

FLIFT CBD80 Fully Electric Pallet Truck
Product Name   Electric Pallet Truck
Model   CBD80
Rated Capacity kg 8000
Load Center mm 600
Min. Ground Clearance mm 110
Max. Ground Clearance mm 220
Operation Type   Side stand type
Overall Width mm 1250
Overall Length mm 2220
Fork outside distance mm 800
Maximum height of steering wheel above ground mm 1275
Turning Radius mm 2015
Fork Size mm 1200*300
Right Angle stacking aisle mm 2720(Pallet 1000*1000mm)
Driving Speed(load/no load) Km/h 5km/h/6km/h
Lifting motor(S3-15%) kw 4.5
Driving motor(S2-60min) kw 4
Steering motor kw 0.5
Brake type   Electromagnetic brake
Steering Type   Electronic steering
Controller   CURTIS
Weight kg 1700
Storage Battery Weight kg 500
Gradeability % 3%/8%
Battery Capacity V/ah 48/300
Battery charger V/A 48/50
Numbers of Tires Front/ Rear (X=Driving wheel)   4/1X+4
Driving Wheel mm Φ 260*105
Bearing Wheel mm Φ 100*125
Auxiliary Wheel mm Φ 150*50
Lifting Speed (full/no load) mm/s 40/54
Descend Speed (full/no load) mm/s 55/45
Tyre type   PU
Battery replacement mode   Side pull

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Double cylinder, CURTIS brand drive control system, vertical transmission, electronic steering, lightweight, silent, integrated hydraulic pump, solenoid valve.
5.short circuit, open circuit protection, electromagnetic, regenerative braking system, high and low voltage limit electrical overheating protection, line failure, detection error code diagnosis.
6.Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system.

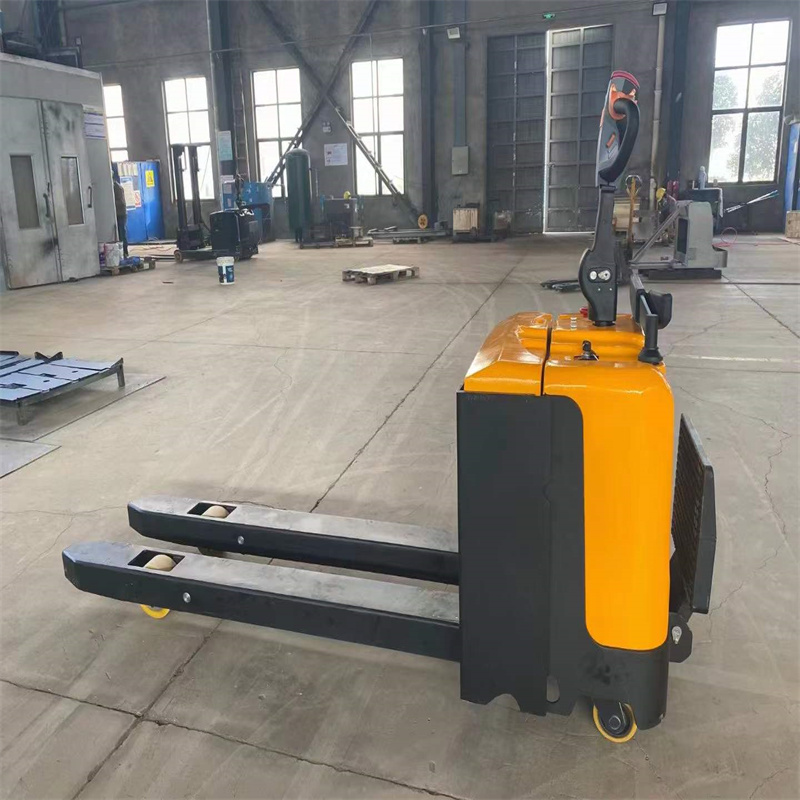

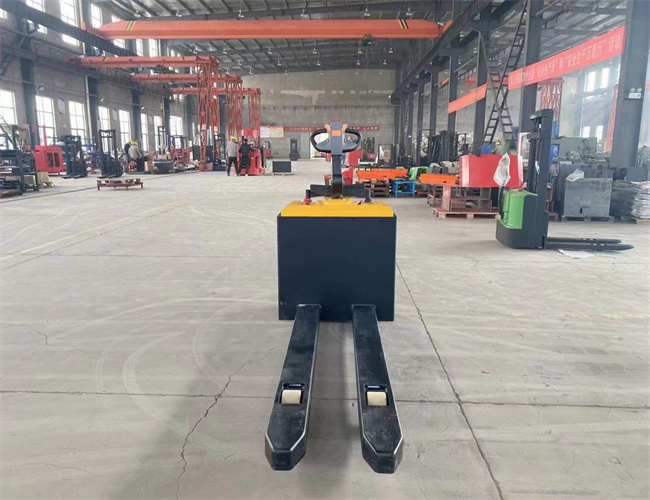

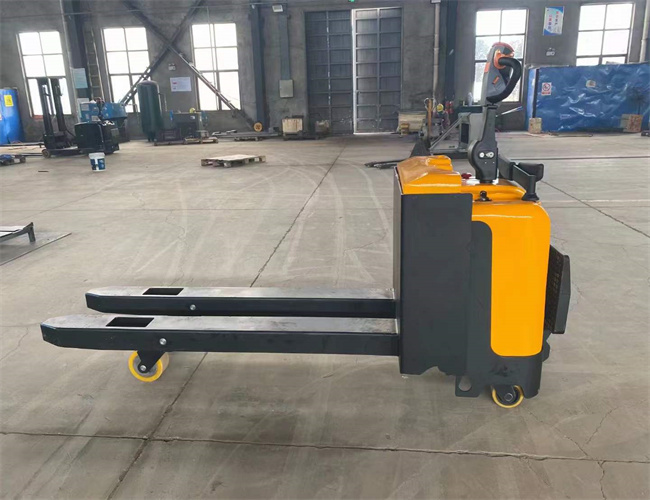

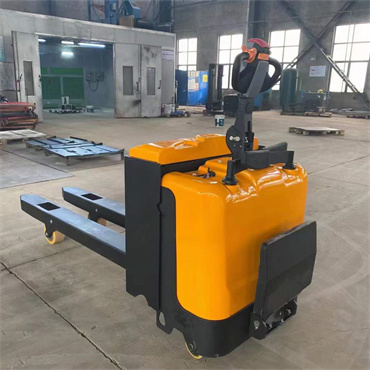

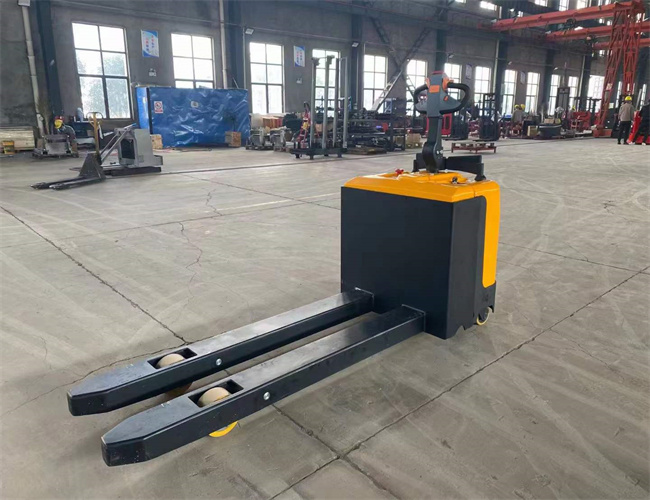

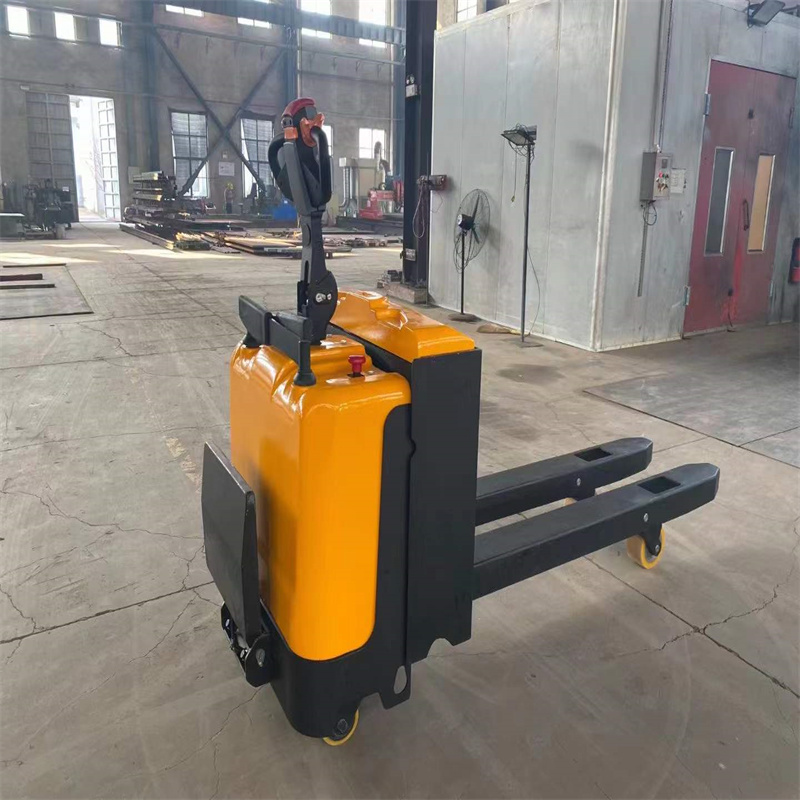

Product Figure



Advantages:

Double cylinder, CURTIS brand drive control system, vertical transmission, electronic steering, lightweight, silent, integrated hydraulic pump, solenoid valve, short circuit, open circuit protection, electromagnetic, regenerative braking system, high and low voltage limit electrical overheating protection, line failure, detection error code diagnosis, 48V large capacity lead-acid battery.




Security:
Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system, leisure backrest/emergency braking device AC EPS, low noise hydraulic, bend automatic deceleration, optional lithium battery, non-standard customization.




Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
