Rated Capacity 5000kg, Wheel Base 2100mm, Overall weight (with battery) 1900kg

Technical Parameters

technology parameters

FLIFT QDD30/50/80/250 Electric Flat Truck
Model		QDD50Z
Dynamic type		Electric
Operation Type		Seated (Convertible)
Rated Capacity	kg	5000
Wheel Base	mm	2100
Overall weight (with battery)	kg	1900
Front wheel type		Pneumatic Tires
Front tyre size	mm	650-10
Rear tyre size	mm	650-10
Numbers of tires (X=Driving wheel)		2X/2
Front tread	mm	1200
Rear Tread	mm	1200
Min. Ground height	mm	140
Overall Length	mm	4500
Overall Width	mm	1450
Load platform dimension	mm	3500*1450
Turning Radius	mm	5800
Driving Speed (full/no load)	Km/h	13/18
Max. Gradeability, full/no load (S2-5min)	%	10
Brake mode		Hydraulic of rear wheel
Driving motor capacity(S2-60min)	kw	4.5
Storage Battery, Voltage/Capacity	V/Ah	48/330
Steering system		Manual steering
Battery replacement mode		Side access

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. DC series motor, with strong power, rear type large capacity battery, good braking.
5.small steering force, high quality profile frame girder, high strength tubular structure, rear wheel hydraulic brake, drum brake.
6.Parking brake adopts hand brake, steering bridge and drive axle adopts BJ130 automobile structure
7.ront and rear axle adopts steel plate shock absorption system, American general (GE) control system,
8.Super low & Non-slip step.

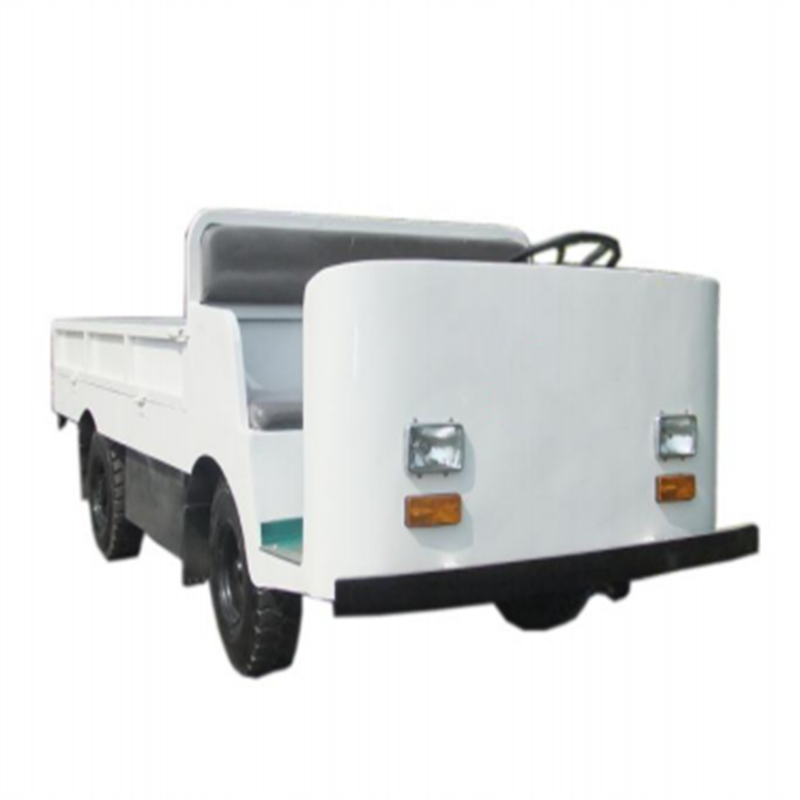

Product Figure

Advantages:
DC series motor, with strong power, rear type large capacity battery, good braking, small steering force, high quality profile frame girder, high strength tubular structure, rear wheel hydraulic brake, drum brake..

Security:
Parking brake adopts hand brake, steering bridge and drive axle adopts BJ130 automobile structure, front and rear axle adopts steel plate shock absorption system, American general (GE) control system, drive stepless speed regulation, combined instrument, headlight, turn signal, night driving light, reversing buzzer, optional lithium electric, optional side pull battery..

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
