1t CSD10 Man Mount Three-way Stacker

ModelCSD10

Dynamic TypeStorage Battery

Operation TypeStanding type

Rated Capacity1000

Load Center500

We're here to help:Easy ways to get the answers you need.

1t Man Mount Three-way Stacker
Multi-Function Rated Capacity 1000KG Man Mount Three-way Stacker with Load Center 500mm .

technology parameters

Model   CSD10
Dynamic Type   Storage Battery
Operation Type   Standing type
Rated Capacity kg 1000
Load Center mm 500
Front Overhang mm 655
Wheel Base mm 1605
Overall Weight (with battery) kg 4760
Tyre type(bearing/driving)   PU
Wheel Bearing size mm Φ140*100
Driving Wheel size mm Φ343*135
Numbers of Tires   4/1x
Tread (Bearing side) mm 1210
Mast Lowered Height mm 2570
Free Lifting Height mm 0
Lifting Height mm 3000
Mast Extended Height (with backrest) mm 4060
Overhead Guard Height mm 2240
Seat Height mm 1070
Overall length mm 2892
Overall Width mm 1450
Fork Size mm 1070/100/35
Installation Level   II  B
Fork outside width mm 230-760
Ground Clearance (bottom mast) mm 40
Width of Stacking aisle (Pallet 1000*1000mm)   1480
Turning radius mm 1750
Driving Speed (Full Load/no load) Km/h 8km/h/9km/h
Lifting speed (Full Load/no load) mm/s 180/315
Braking type   Electromagnetic type
Driving motor capacity kw 4.5AC
Lifting motor capacity kw 6.3DC
Storage Battery Voltage/Capacity V/AH 48/400
Battery Weight kg 675
Steering System   Electronic steering
Battery Replacement Way   Side pull

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Wide Angle vision, high strength shock absorption door frame, Curtis brand drive control system, minimum 1480mm stacking channel special narrow tunnel, electronic steering, light, quiet
5. Shimadzu brand low noise hydraulic pump, valve, multi-functional instrument, driving wheel position display, electromagnetic, regenerative braking system, fork rotation Angle 180° or so side movement
6.Line fault detection error code diagnosis, torch brand 48V large capacity lead acid battery, automatic alignment and automatic guidance when walking.

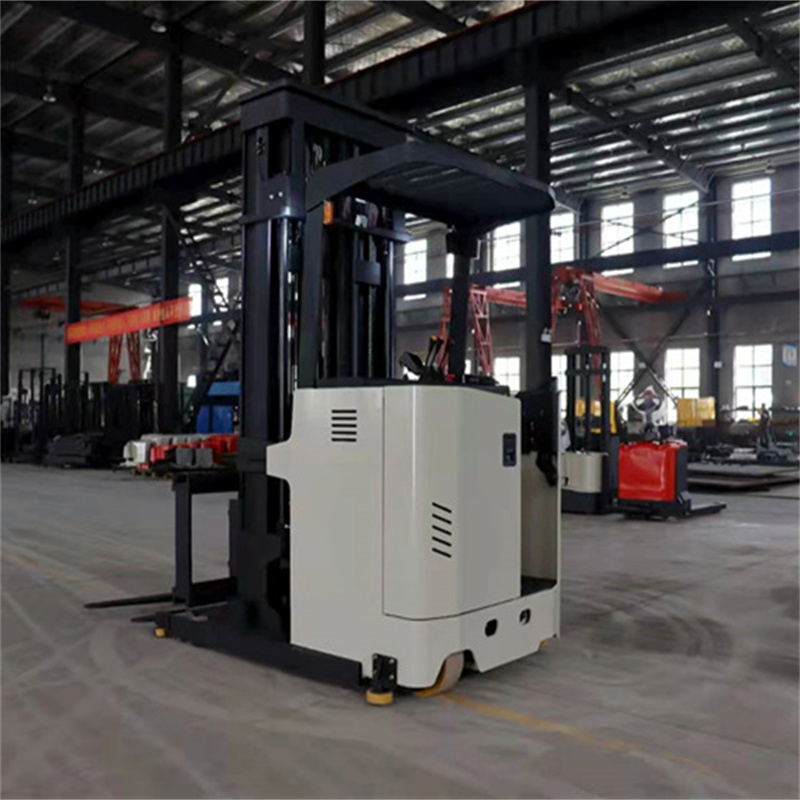

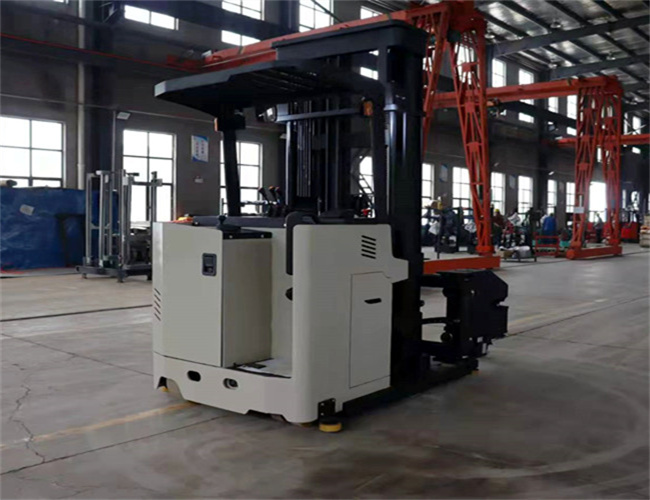

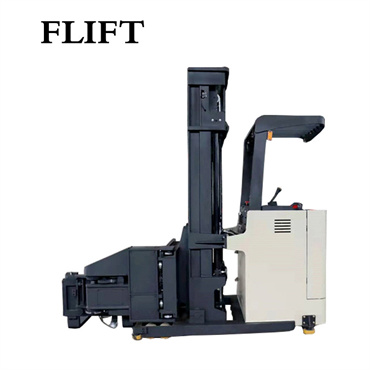

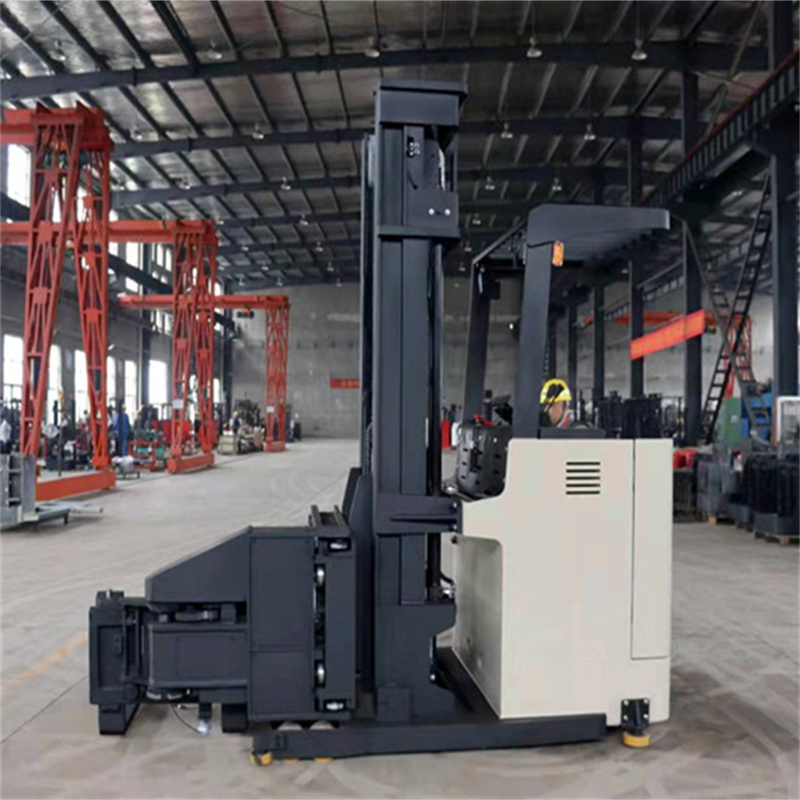

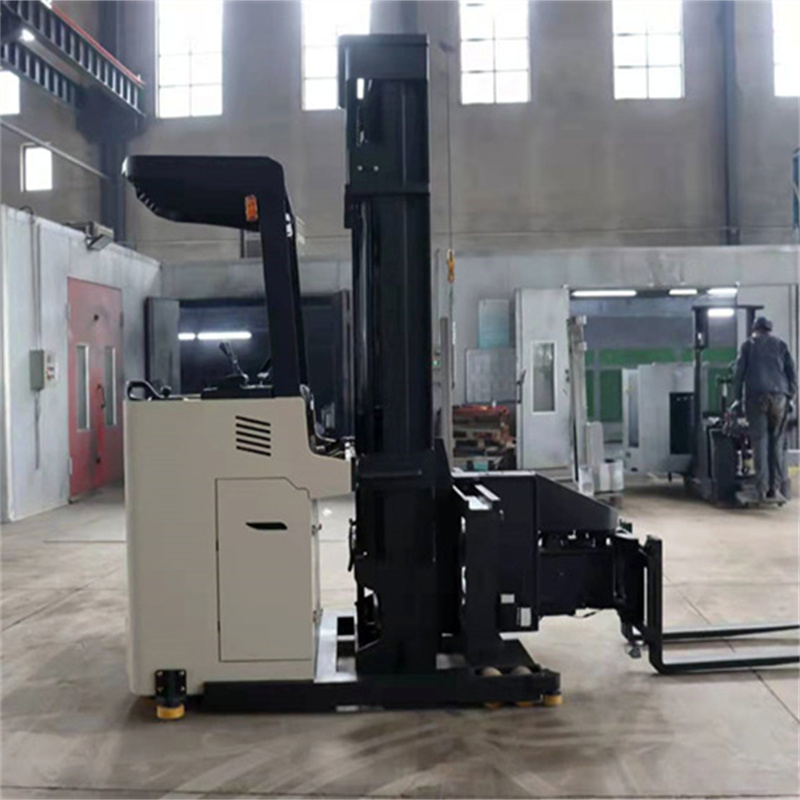

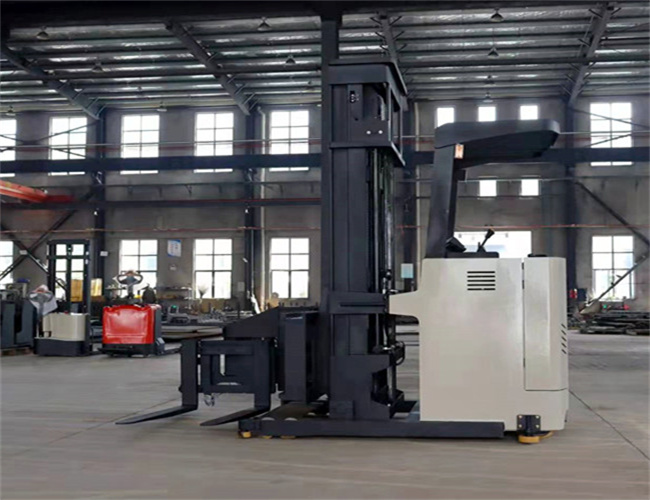

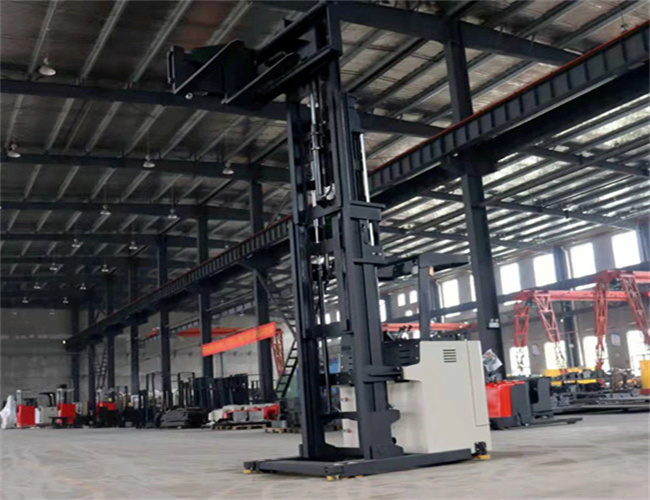

Product Figure



Advantages:

Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.




Security:
Bend automatic deceleration device, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization.



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
